- Bevel and Miter Gears Develop Axial Thrust, Adequate Bearing support Must be Provided
- Miter Gears must be run in sets of two or more gears with the same pitch, Pressure angle and number of teeth
- Spiral Bevel and Miter Gears have continuous pitch line contact and are smoother and quieter than straight tooth gears. Spiral Bevel and Miter gears must be run in sets of mating gears with opposite hand spiral.
- Browning Gears are rated in accordance with AGMA standards
YSM12B15X1/2

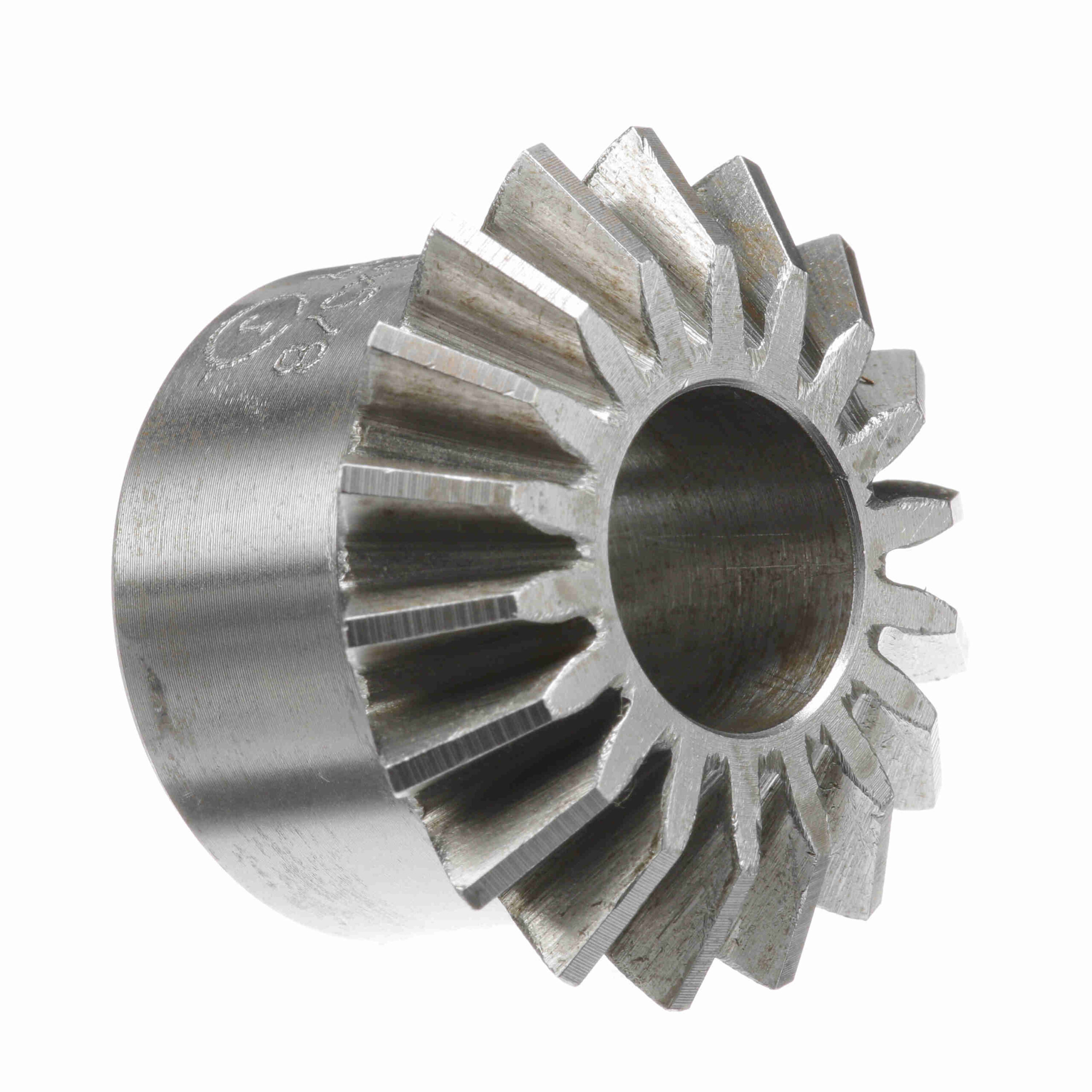

Browning Steel Minimum Plain Bore Miter Gear – 20 PA 12 DP – YSM12B15X1/2
Out of stock
| Pressure Angle: | 20 | Mounting Distance: | 1.25 |
|---|---|---|---|
| Hub Projection (in): | 0.5 in | Diametral Pitch: | 12 |
| Face Width (in): | 0.27 in | Pitch Diameter (in): | 1.25 in |
| Number of Teeth/Threads: | 15 | Hub Diameter (in): | 1 in |
| Material: | Steel | Length Through Bore (in): | 0.859375 in |
| Bore Type: | Minimum Plain Bore | Bore (Max) (in): | 0.5 in |
| Bore (Min) (in): | 0.5 in | Bore Size (in): | 0.5 in |
| Product Type: | Miter Gear | UPC: | 662289136773 |
| Weight: | 0.20 LB | Packaged Length: | 2.90 Inches |
| Packaged Width: | 2.80 Inches | Packaged Height: | 1.60 Inches |
| HTC: | 8483.40.9000 | Country of Origin: | India |
