- Bevel and Miter Gears Develop Axial Thrust, Adequate Bearing support Must be Provided
- Miter Gears must be run in sets of two or more gears with the same pitch, Pressure angle and number of teeth
- Spiral Bevel and Miter Gears have continuous pitch line contact and are smoother and quieter than straight tooth gears. Spiral Bevel and Miter gears must be run in sets of mating gears with opposite hand spiral.
- Browning Gears are rated in accordance with AGMA standards
YSM10F25X1

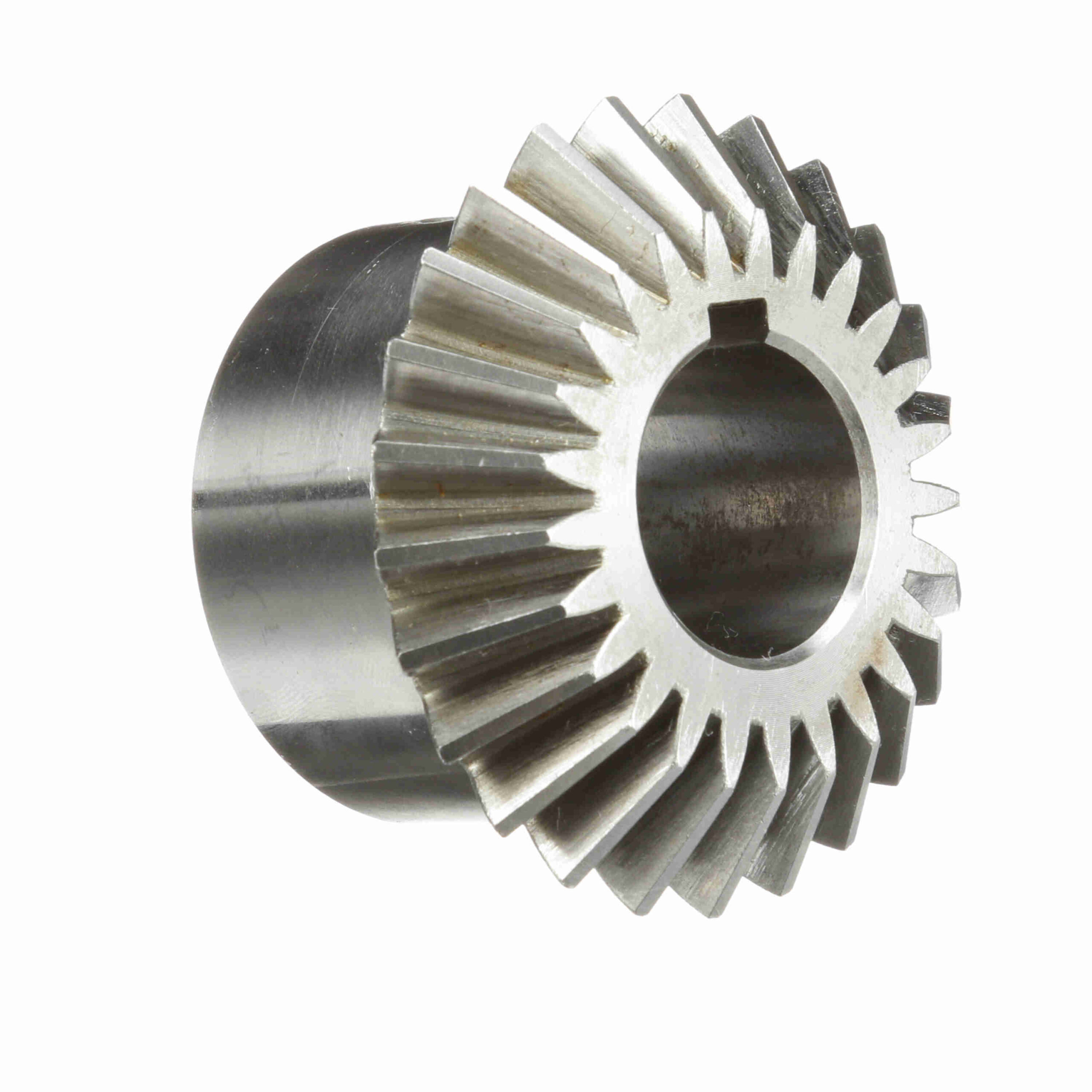

Browning Steel Finished Bore Miter Gear – 20 PA 10 DP – YSM10F25X1
$388.79
Out of stock
Out of stock
| Mounting Distance: | 2.438 | Diametral Pitch: | 10 |
|---|---|---|---|
| Material: | Steel | Face Width (in): | 0.55 in |
| Hub Diameter (in): | 2 in | Hub Projection (in): | 1.625 in |
| Pressure Angle: | 20 | Pitch Diameter (in): | 2.5 in |
| Number of Teeth/Threads: | 25 | Bore Type: | Finished Bore |
| Length Through Bore (in): | 1.625 in | Bore (Min) (in): | 1 in |
| Bore (Max) (in): | 1.25 in | Product Type: | Miter Gear |
| Bore Size (in): | 1 in | UPC: | 662289227143 |
| Weight: | 1.21 LB | Packaged Length: | 3.10 Inches |
| Packaged Width: | 3.30 Inches | Packaged Height: | 2.00 Inches |
| HTC: | 8483.40.9000 | Country of Origin: | India |
