- Bevel and Miter Gears Develop Axial Thrust, Adequate Bearing support Must be Provided
- Miter Gears must be run in sets of two or more gears with the same pitch, Pressure angle and number of teeth
- Spiral Bevel and Miter Gears have continuous pitch line contact and are smoother and quieter than straight tooth gears. Spiral Bevel and Miter gears must be run in sets of mating gears with opposite hand spiral.
- Browning Gears are rated in accordance with AGMA standards
YSM10B20X5/8

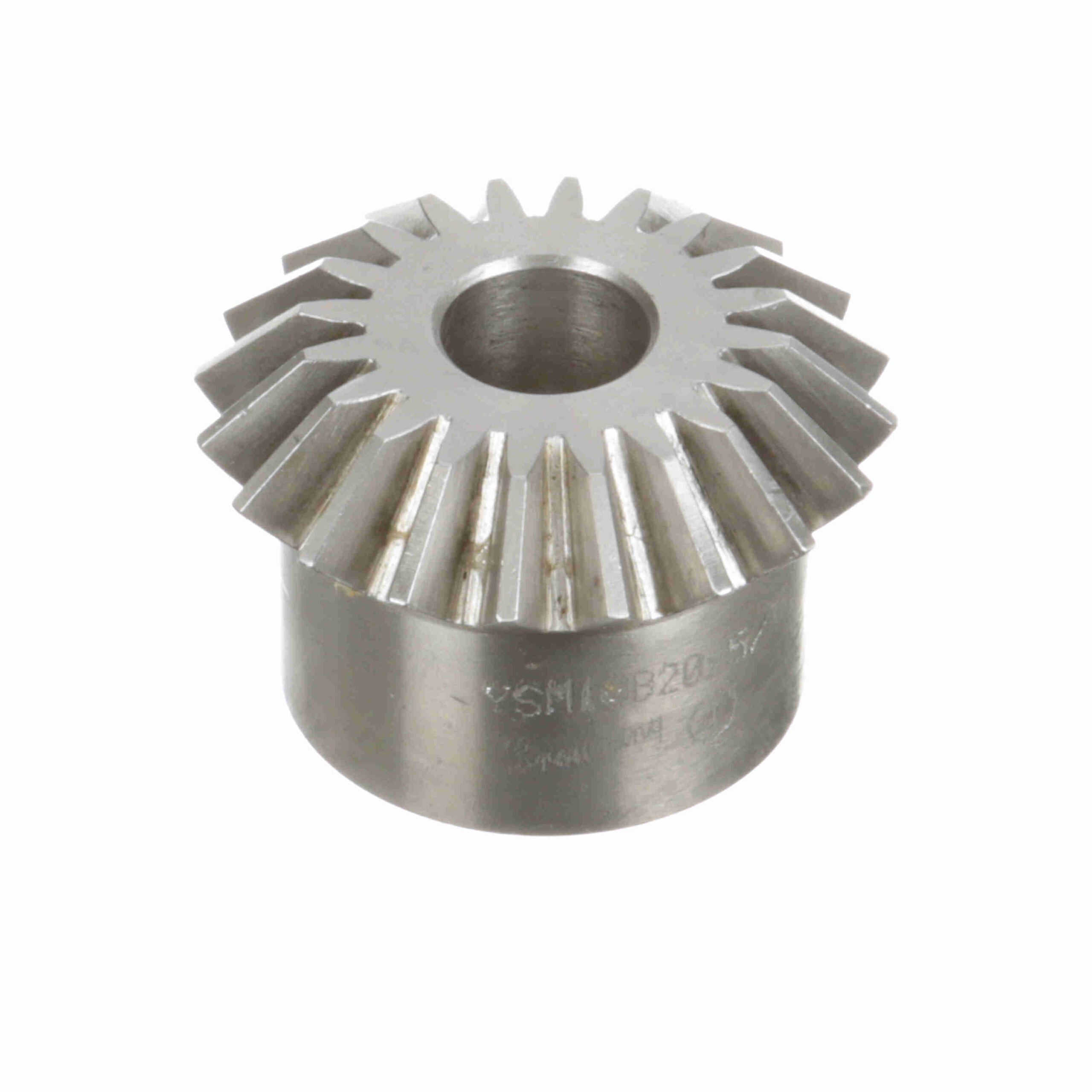

Browning Steel Minimum Plain Bore Miter Gear – 20 PA 10 DP – YSM10B20X5/8
$269.63
Out of stock
Out of stock
| Mounting Distance: | 2 | Number of Teeth/Threads: | 20 |
|---|---|---|---|
| Pitch Diameter (in): | 2 in | Diametral Pitch: | 10 |
| Hub Diameter (in): | 1.625 in | Material: | Steel |
| Hub Projection (in): | 0.8125 in | Face Width (in): | 0.44 in |
| Pressure Angle: | 20 | Bore (Min) (in): | 0.625 in |
| Bore Type: | Minimum Plain Bore | Bore (Max) (in): | 0.875 in |
| Length Through Bore (in): | 1.359375 in | Product Type: | Miter Gear |
| Bore Size (in): | 0.625 in | UPC: | 662289256877 |
| Weight: | 0.74 LB | Packaged Length: | 3.06 Inches |
| Packaged Width: | 3.06 Inches | Packaged Height: | 1.63 Inches |
| HTC: | 8483.40.9000 | Country of Origin: | India |
