- Bevel and Miter Gears Develop Axial Thrust, Adequate Bearing support Must be Provided
- Miter Gears must be run in sets of two or more gears with the same pitch, Pressure angle and number of teeth
- Spiral Bevel and Miter Gears have continuous pitch line contact and are smoother and quieter than straight tooth gears. Spiral Bevel and Miter gears must be run in sets of mating gears with opposite hand spiral.
- Browning Gears are rated in accordance with AGMA standards
YSB8B40-20

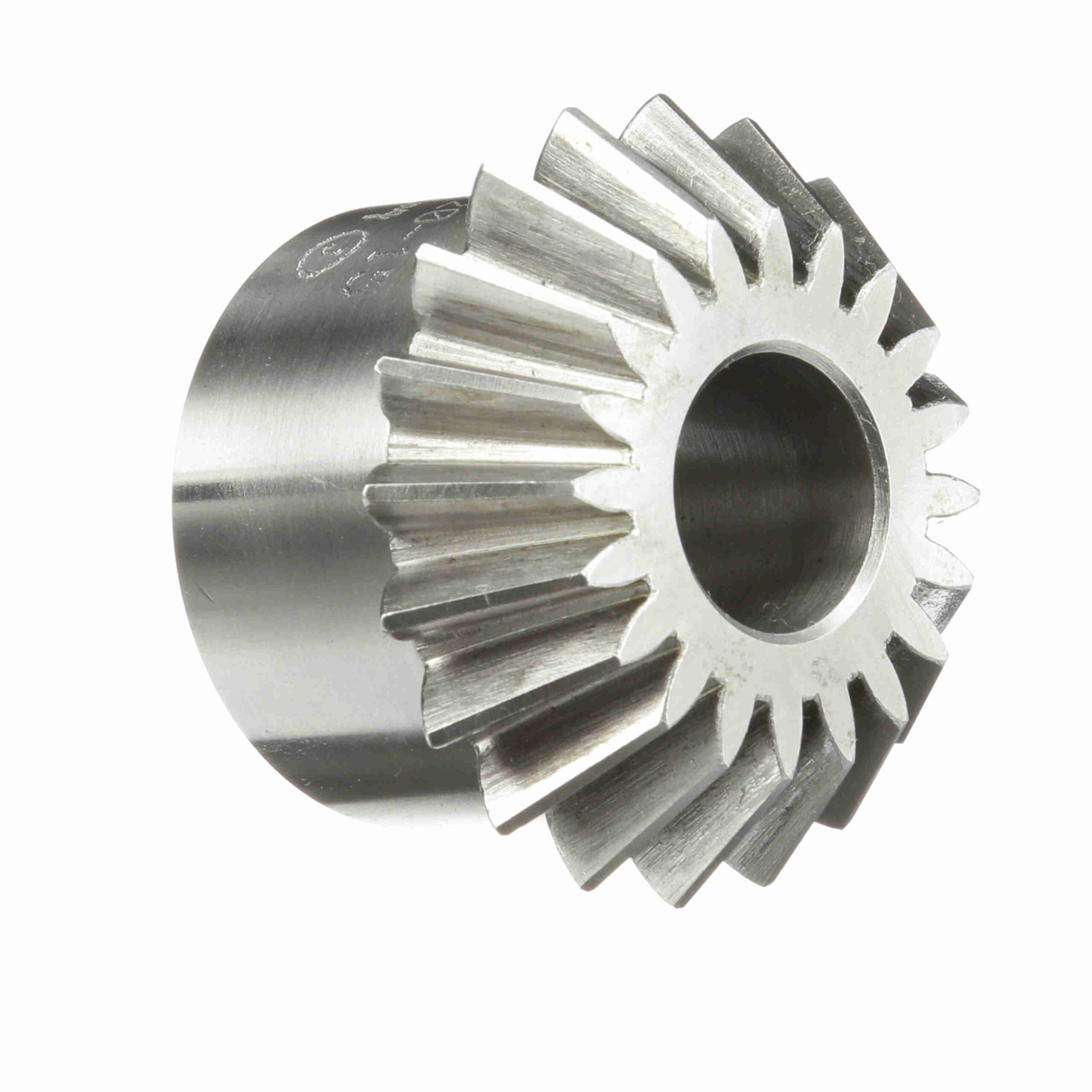

Browning Steel Minimum Plain Bore Bevel Gear – 20 PA 8 DP – YSB8B40-20
$391.82
Out of stock
Out of stock
| Material: | Steel | Hub Diameter (in): | 3 in |
|---|---|---|---|
| Pitch Diameter (in): | 5 in | Hub Projection (in): | 1.25 in |
| Pressure Angle: | 20 | Face Width (in): | 0.82 in |
| Diametral Pitch: | 8 | Mounting Distance: | 2.875 |
| Number of Teeth/Threads: | 40 | Length Through Bore (in): | 1.84375 in |
| Bore (Max) (in): | 2 in | Bore Type: | Minimum Plain Bore |
| Bore (Min) (in): | 1 in | Product Type: | Bevel Gear |
| Bore Size (in): | 1 in | UPC: | 662289194964 |
| Weight: | 5.10 LB | Packaged Length: | 6.06 Inches |
| Packaged Width: | 6.06 Inches | Packaged Height: | 2.50 Inches |
| HTC: | 8483.40.9000 | Country of Origin: | India |
