- Bevel and Miter Gears Develop Axial Thrust, Adequate Bearing support Must be Provided
- Miter Gears must be run in sets of two or more gears with the same pitch, Pressure angle and number of teeth
- Spiral Bevel and Miter Gears have continuous pitch line contact and are smoother and quieter than straight tooth gears. Spiral Bevel and Miter gears must be run in sets of mating gears with opposite hand spiral.
- Browning Gears are rated in accordance with AGMA standards
YSB8B16-40

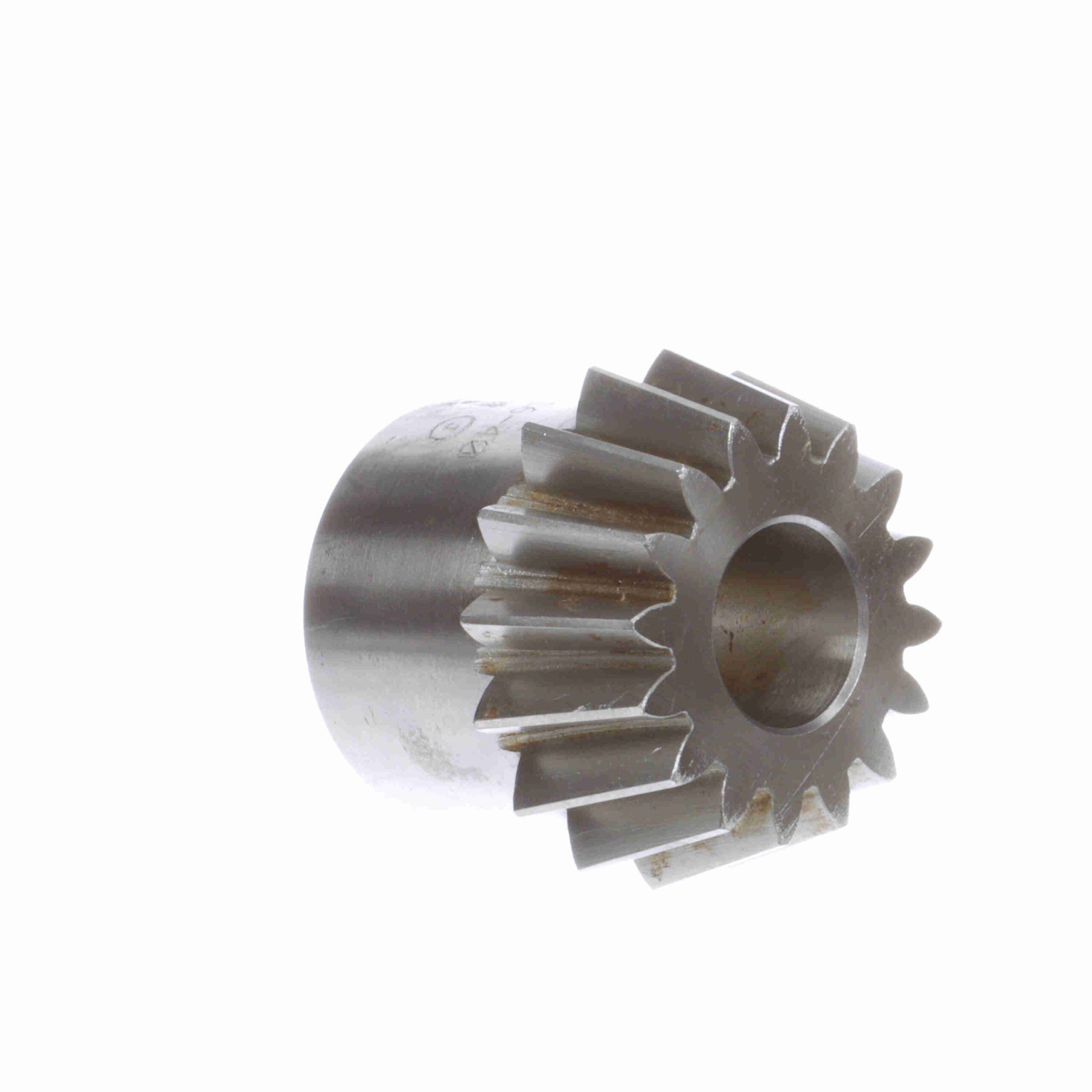

Browning Steel Minimum Plain Bore Bevel Gear – 20 PA 8 DP – YSB8B16-40
Out of stock
| Hub Diameter (in): | 1.875 in | Pitch Diameter (in): | 2 in |
|---|---|---|---|
| Face Width (in): | 0.84 in | Hub Projection (in): | 1.21875 in |
| Material: | Steel | Mounting Distance: | 5.25 |
| Diametral Pitch: | 8 | Pressure Angle: | 20 |
| Number of Teeth/Threads: | 16 | Bore (Min) (in): | 0.875 in |
| Length Through Bore (in): | 2.09375 in | Bore (Max) (in): | 1.125 in |
| Bore Type: | Minimum Plain Bore | Bore Size (in): | 0.875 in |
| Product Type: | Bevel Gear | UPC: | 662289115044 |
| Weight: | 1.32 LB | Packaged Length: | 3.56 Inches |
| Packaged Width: | 3.56 Inches | Packaged Height: | 2.25 Inches |
| HTC: | 8483.40.9000 | Country of Origin: | India |
