- Bevel and Miter Gears Develop Axial Thrust, Adequate Bearing support Must be Provided
- Miter Gears must be run in sets of two or more gears with the same pitch, Pressure angle and number of teeth
- Spiral Bevel and Miter Gears have continuous pitch line contact and are smoother and quieter than straight tooth gears. Spiral Bevel and Miter gears must be run in sets of mating gears with opposite hand spiral.
- Browning Gears are rated in accordance with AGMA standards
YSB5B15-20

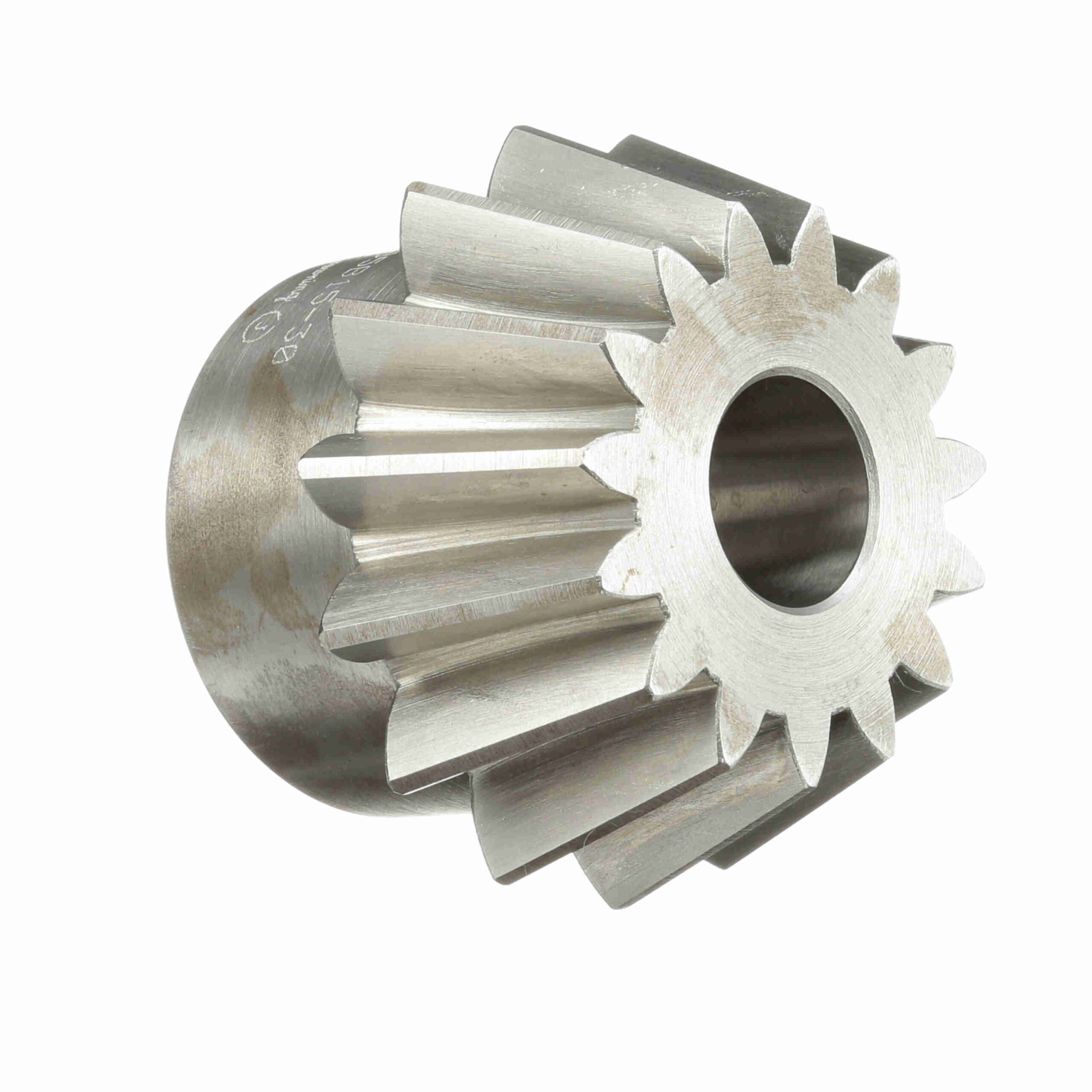

Browning Steel Minimum Plain Bore Bevel Gear – 20 PA 5 DP – YSB5B15-20
Out of stock
| Mounting Distance: | 4.375 | Hub Diameter (in): | 2.625 in |
|---|---|---|---|
| Pressure Angle: | 20 | Material: | Steel |
| Number of Teeth/Threads: | 15 | Hub Projection (in): | 1.28125 in |
| Diametral Pitch: | 5 | Face Width (in): | 1.04 in |
| Pitch Diameter (in): | 3 in | Bore Type: | Minimum Plain Bore |
| Bore (Max) (in): | 1.375 in | Bore (Min) (in): | 1 in |
| Length Through Bore (in): | 2.390625 in | Bore Size (in): | 1 in |
| Product Type: | Bevel Gear | UPC: | 662289155156 |
| Weight: | 3.06 LB | Packaged Length: | 3.88 Inches |
| Packaged Width: | 2.56 Inches | Packaged Height: | 3.88 Inches |
| HTC: | 8483.40.9000 | Country of Origin: | India |
