- Bevel and Miter Gears Develop Axial Thrust, Adequate Bearing support Must be Provided
- Miter Gears must be run in sets of two or more gears with the same pitch, Pressure angle and number of teeth
- Spiral Bevel and Miter Gears have continuous pitch line contact and are smoother and quieter than straight tooth gears. Spiral Bevel and Miter gears must be run in sets of mating gears with opposite hand spiral.
- Browning Gears are rated in accordance with AGMA standards
YSB4B42-30

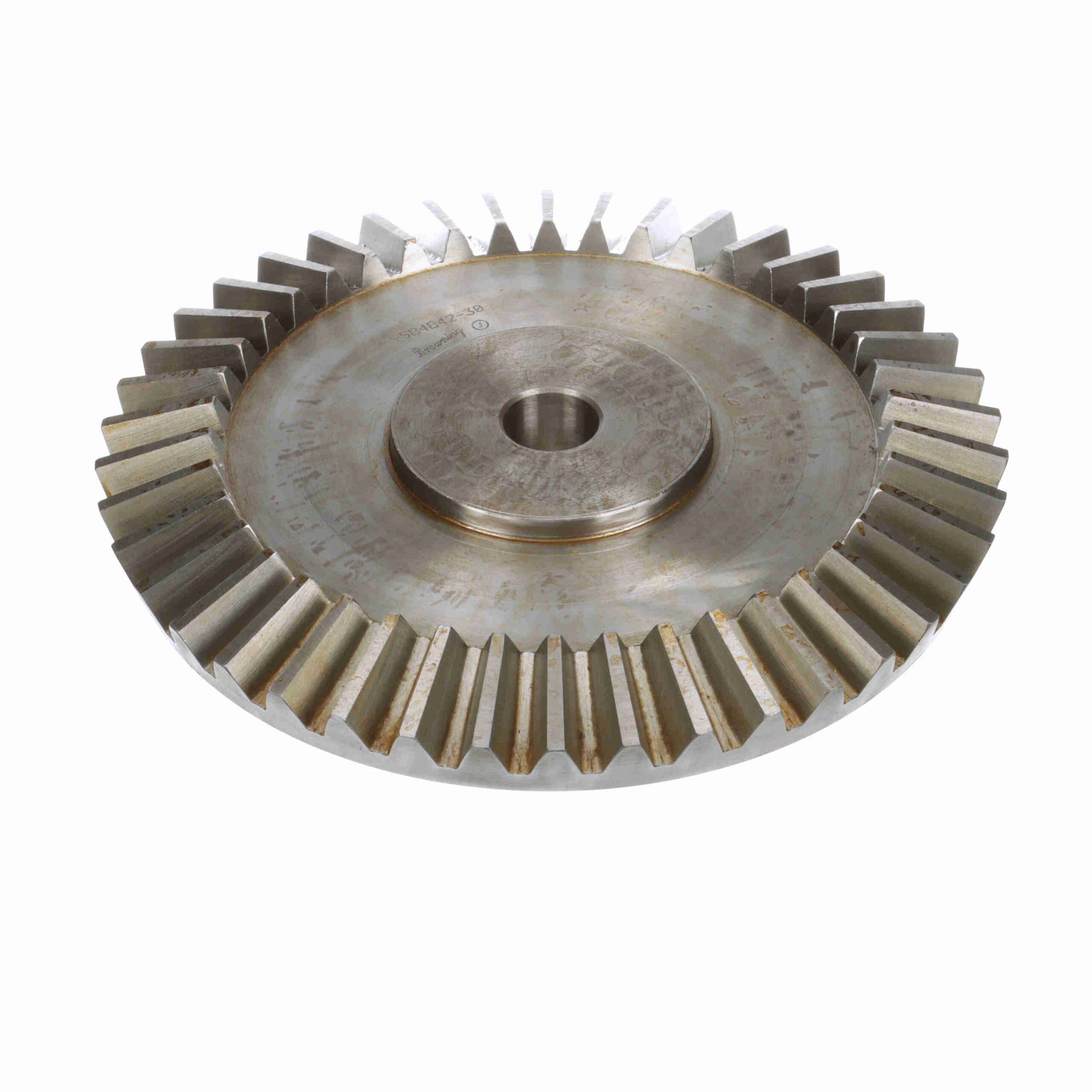

Browning Steel Minimum Plain Bore Bevel Gear – 20 PA 4 DP – YSB4B42-30
$1,797.33
Out of stock
Out of stock
| Face Width (in): | 1.42 in | Pitch Diameter (in): | 10.5 in |
|---|---|---|---|
| Mounting Distance: | 4 | Hub Projection (in): | 1.5 in |
| Hub Diameter (in): | 3.75 in | Pressure Angle: | 20 |
| Number of Teeth/Threads: | 42 | Diametral Pitch: | 4 |
| Material: | Steel | Length Through Bore (in): | 2.6875 in |
| Bore (Max) (in): | 2.25 in | Bore Type: | Minimum Plain Bore |
| Bore (Min) (in): | 1.125 in | Hub Type: | Type B |
| Bushing Bore size (in): | 1.1250 to 2.2500 in | Product Type: | Bevel Gear |
| Bore Size (in): | 1.125 in | Gear Construction: | Plain |
| UPC: | 662289175222 | Weight: | 25.86 LB |
| Packaged Length: | 10.20 Inches | Packaged Width: | 10.40 Inches |
| Packaged Height: | 3.80 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | India |
