- Browning Split Taper Bushed Spur Gears are shaft ready and eliminate costly reworking of minimum bore gears
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
YCS6Q96

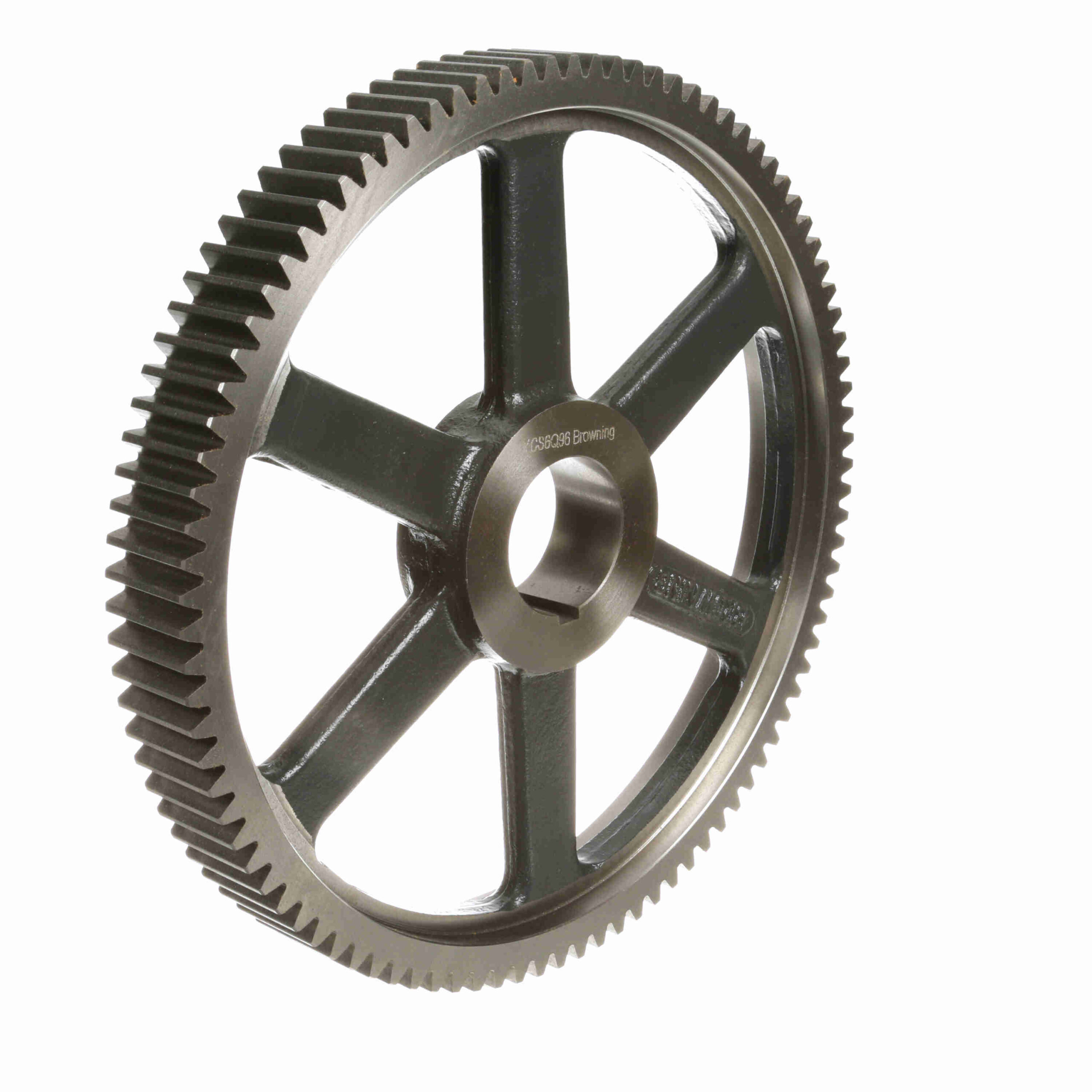

Browning Cast Iron Bushed Bore Spur Gear – 20 PA 6 DP – YCS6Q96
Out of stock
| Diametral Pitch: | 6 | Material: | Gray Iron |
|---|---|---|---|
| Pitch Diameter (in): | 16 in | Number of Teeth/Threads: | 96 |
| Outside Diameter (in): | 16.33 in | Pressure Angle: | 20 |
| Face Width (in): | 2 in | Length Through Bore (in): | 2.78125 in |
| Bore (Max) (in): | 2.6875 in | Bore Type: | Bushed Bore |
| Bore (Min) (in): | 0.75 in | Bore Size (in): | 0.75 in |
| Product Type: | Spur Gear | Hub Type: | Q1 |
| Overall Length (in): | 2.78125 in | Standard Met: | AGMA |
| UPC: | 662289248131 | Weight: | 33.80 LB |
| Packaged Length: | 16.63 Inches | Packaged Width: | 16.63 Inches |
| Packaged Height: | 2.25 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
