- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
YCS1090

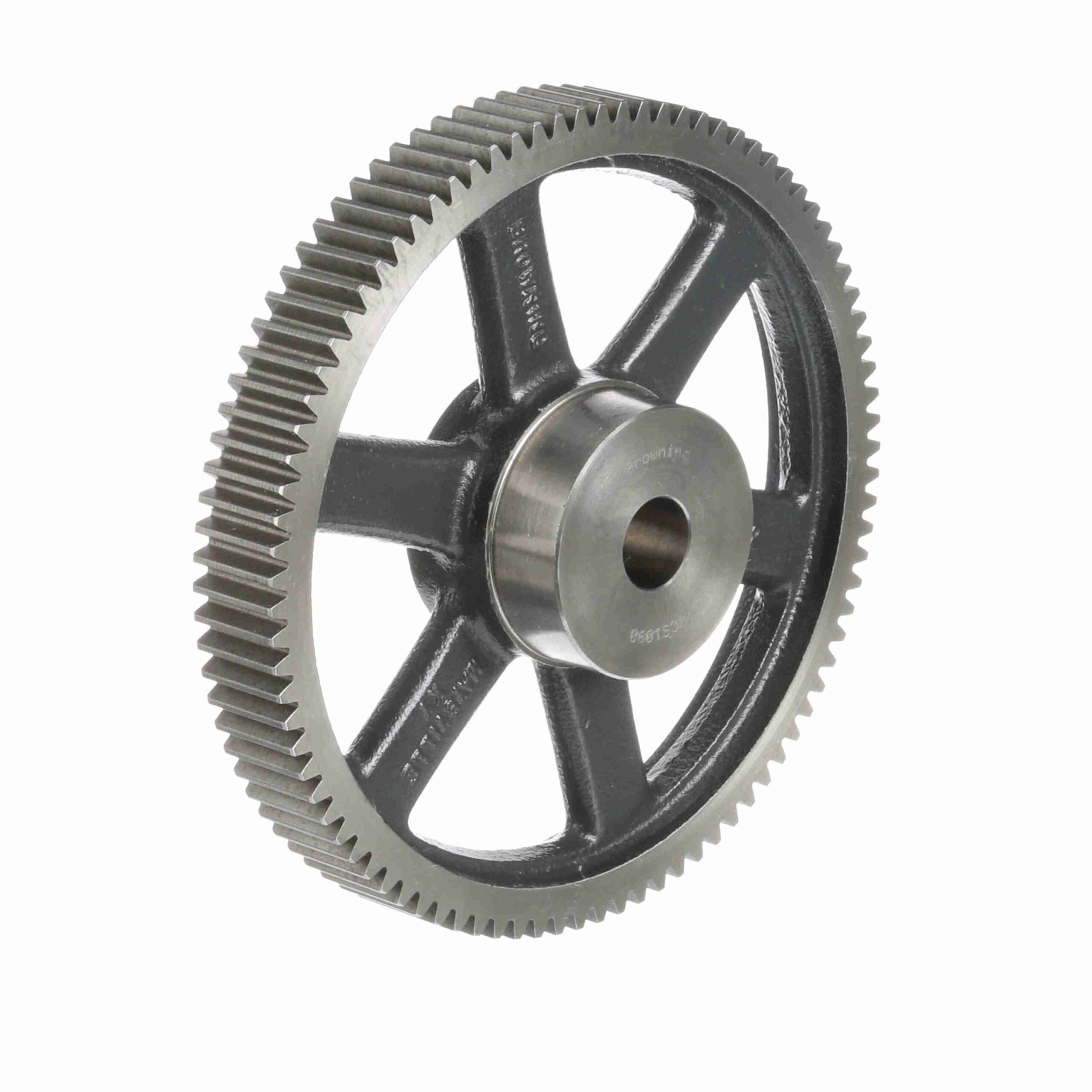

Browning Cast Iron Minimum Plain Bore Spur Gear – 20 PA 10 DP – YCS1090
$624.64
Out of stock
Out of stock
| Outside Diameter (in): | 9.2 in | Pressure Angle: | 20 |
|---|---|---|---|
| Pitch Diameter (in): | 9 in | Number of Teeth/Threads: | 90 |
| Face Width (in): | 1.25 in | Hub Diameter (in): | 3 in |
| Hub Projection (in): | 1 in | Material: | Gray Iron |
| Diametral Pitch: | 10 | Bore (Min) (in): | 1 in |
| Length Through Bore (in): | 2.25 in | Bore (Max) (in): | 1.8125 in |
| Bore Type: | Minimum Plain Bore | Bore Size (in): | 1 in |
| Product Type: | Spur Gear | Hub Type: | Type B |
| Overall Length (in): | 2.25 in | Standard Met: | AGMA |
| UPC: | 662289156672 | Weight: | 12.20 LB |
| Packaged Length: | 10.70 Inches | Packaged Width: | 12.00 Inches |
| Packaged Height: | 10.20 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
