- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal and flinger
VTWS-331

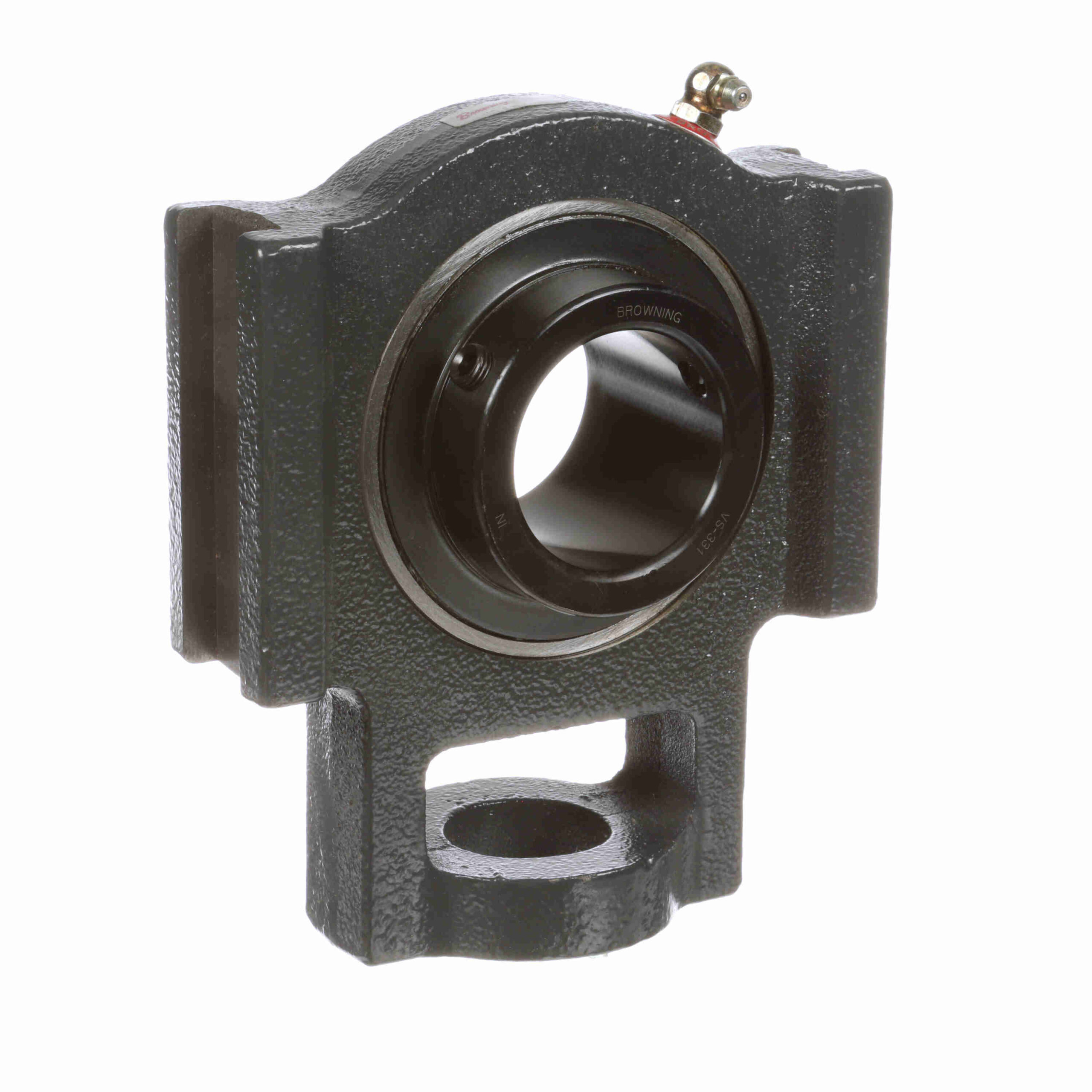

Browning Mounted Cast Iron Wide Slot Take Up Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Setscrew Lock – VTWS-331
$341.39
Out of stock
Out of stock
| Maximum Operating Temperature: | 200 °F | Rolling Element: | Ball Bearing |
|---|---|---|---|
| Insert Material: | 52100 Bearing Steel, Black Oxided Inner | Seal Type: | Single Lip Contact Seal with Flinger |
| Measure Units: | Inch | Housing Type: | Take-Up Block, Wide Slot |
| Duty Series: | Medium Duty | Expansion: | No |
| Retainer Type: | Ball Riding Retainer | Speed (Max): | 2500 |
| Housing Material: | Cast Iron | Insert No.: | VS-331 |
| Internal Clearance: | Standard | Frame Type: | Center Pull Wide Slot |
| Housing Construction: | One Piece | Misalignment: | ±1.5° Misalignment - Static Only |
| Bore Shape: | Straight | Lubrication: | Lithium Complex NLGI 2 Grease |
| Relubricatable: | Yes | Radial Dynamic Load Capacity (lb): | 9, 752 |
| Locking Type: | Setscrew | Bearing Insert Coating: | Black Oxide Coated Inner Ring |
| Replaceable Insert: | Yes | Retainer Material: | Molded fiber glass reinforced nylon |
| Misalignment Type: | Static Only | Outer Ring Land Profile: | Standard |
| Housing Color: | Gray | End Cap: | No |
| Series: | VTWS-300 | Unit Type: | Side Mount |
| Component Description: | Take Up Bearing Only | UPC: | 662289533879 |
| Weight: | 8.60 LB | Packaged Length: | 7.5 Inches |
| Packaged Width: | 7.38 Inches | Packaged Height: | 2.63 Inches |
| HTC: | 8483.20.4040 | Country of Origin: | Mexico |
