- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120? spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal and flinger
VTBS-223

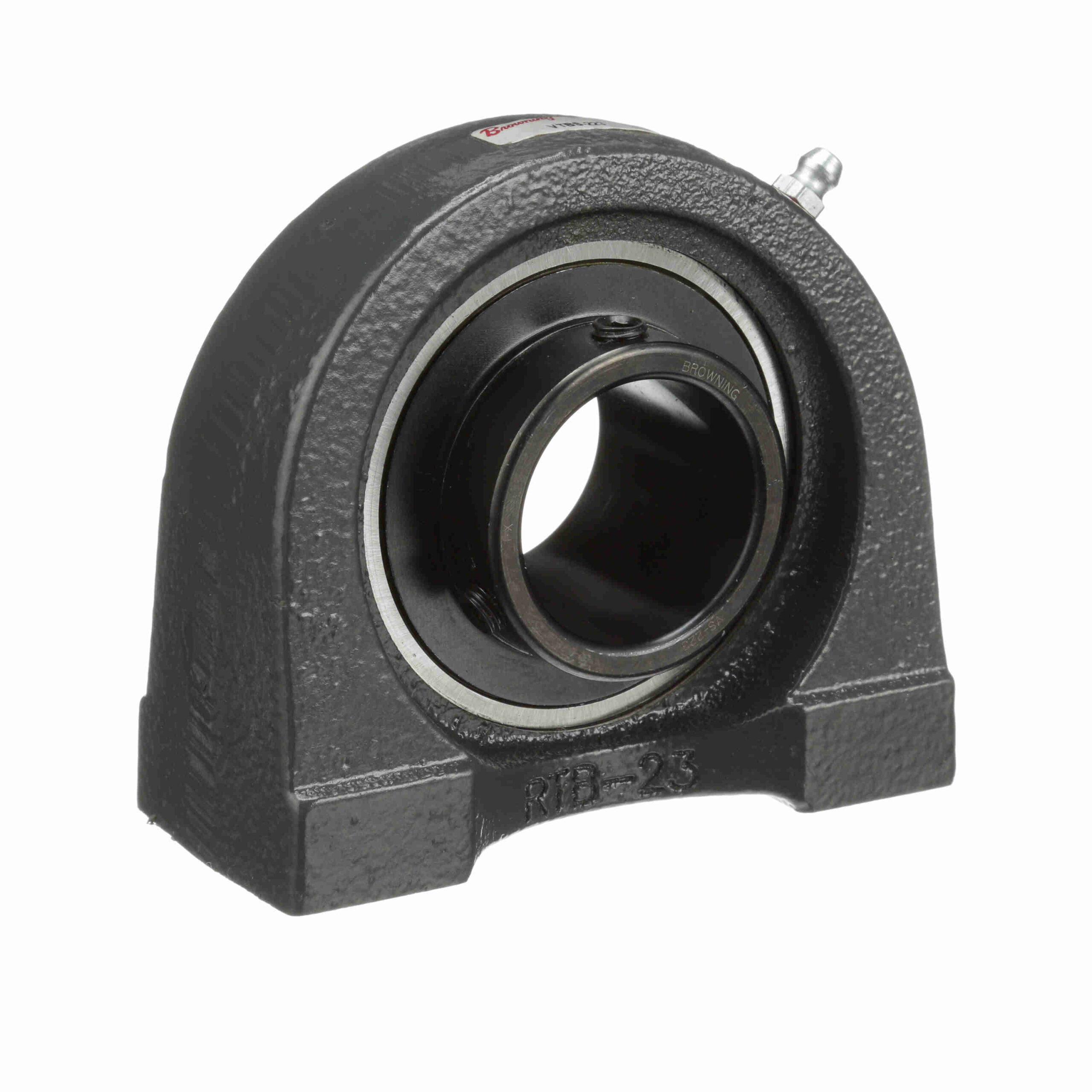

Browning Mounted Cast Iron Tapped Base Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Setscrew Lock – VTBS-223
$115.70
Out of stock
Out of stock
| Retainer Type: | Ball Riding Retainer | Measure Units: | Inch |
|---|---|---|---|
| Housing Material: | Cast Iron | Speed (Max): | 4000 |
| Insert No.: | VS-223 | Duty Series: | Standard Duty |
| Housing Base: | Semi-Solid | Insert Material: | 52100 Bearing Steel; Black Oxided Inner |
| Rolling Element: | Ball Bearing | Seal Type: | Single Lip Contact Seal with Flinger |
| Expansion: | No | Housing Type: | Pillow Block; Tapped Base |
| Maximum Operating Temperature: | 200 °F | Bore Shape: | Straight |
| Misalignment: | ±1.5° Misalignment - Static Only | Relubricatable: | Yes |
| Lubrication: | Lithium Complex NLGI 2 Grease | Radial Dynamic Load Capacity (lb): | 5, 782 |
| Locking Type: | Setscrew | Housing Construction: | One Piece |
| Internal Clearance: | Standard | Outer Ring Land Profile: | Standard |
| End Cap: | No | Housing Color: | Gray |
| Misalignment Type: | Static Only | Retainer Material: | Molded fiber glass reinforced nylon |
| Bearing Insert Coating: | Black Oxide Coated Inner Ring | Replaceable Insert: | Yes |
| Radial Static Load Capacity (lb): | 3, 493 | UPC: | 662289530250 |
| Weight: | 3.53 LB | Packaged Length: | 4.5 Inches |
| Packaged Width: | 4.6 Inches | Packaged Height: | 2.1 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | Mexico |
