- Powder coat epoxy cast iron housing
- BOA Concentric locking for near perfect concentricity
- Single lip contact seal and flinger
VTBB-212

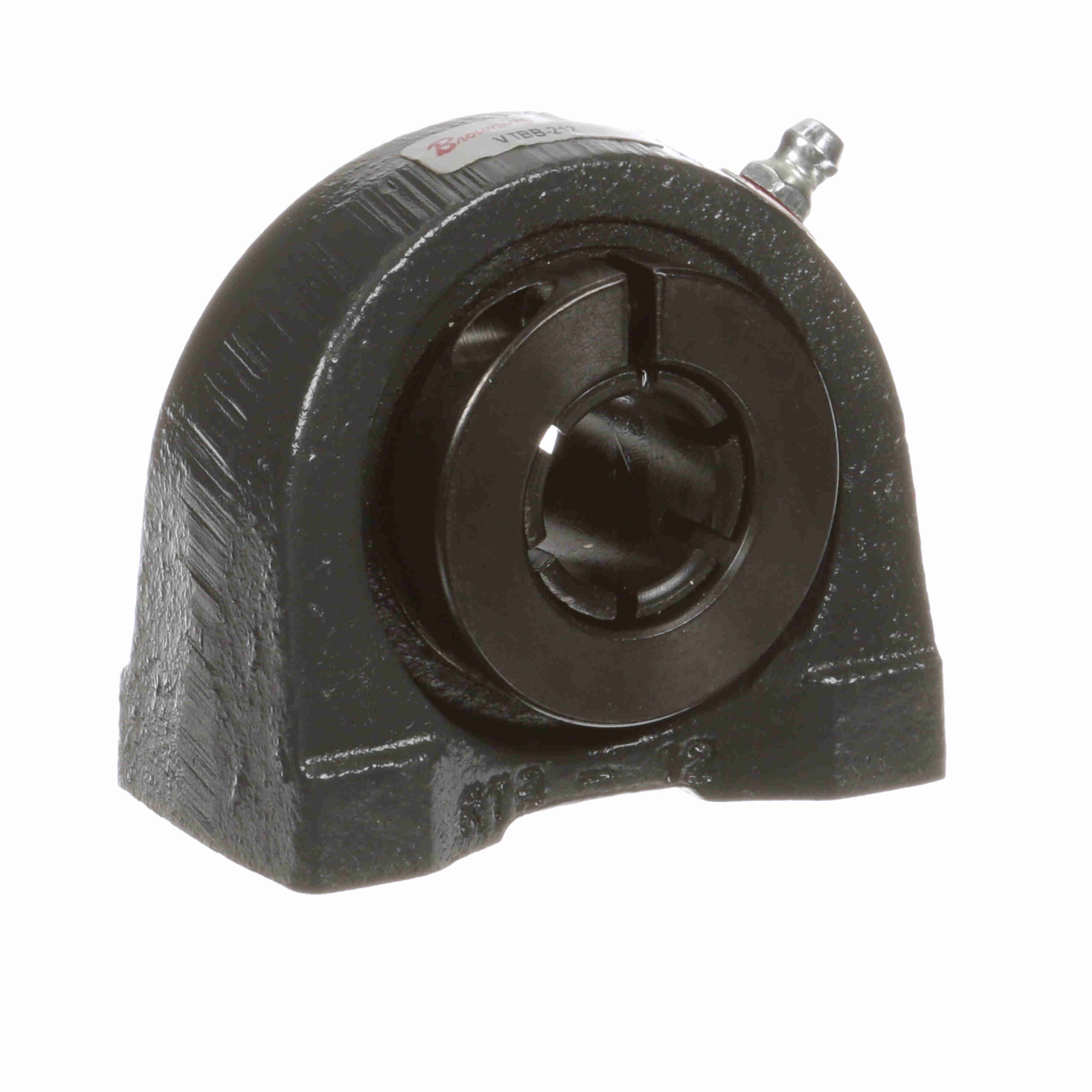

Browning Mounted Cast Iron Tapped Base Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Concentric Lock – VTBB-212
$267.26
Out of stock
Out of stock
| Housing Base: | Semi-Solid | Seal Type: | Single Lip Contact Seal with Flinger |
|---|---|---|---|
| Measure Units: | Inch | Insert Material: | 52100 Bearing Steel, Black Oxided Inner |
| Rolling Element: | Ball Bearing | Radial Dynamic Load Capacity (lb): | 2, 611 lb |
| Internal Clearance: | Standard | Misalignment: | ±1.5° Misalignment - Static Only |
| Housing Construction: | One Piece | Bore Shape: | Straight |
| Misalignment Type: | Static Only | Bearing Insert Coating: | Black Oxide Coated Inner Ring |
| Housing Color: | Gray | Retainer Material: | Molded fiber glass reinforced nylon |
| Replaceable Insert: | Yes | Outer Ring Land Profile: | Standard |
| End Cap: | No | Radial Static Load Capacity (lb): | 1, 444 lb |
| Lubrication Type: | Lithium Complex NLGI 2 Grease | Fixed vs. Expansion: | Fixed |
| Maximum Speed (RPM): | 6500 rpm | Retainer Type: | Ball Riding Retainer |
| Housing Style: | Pillow Block | Housing Type: | Pillow Block, Tapped Base |
| Duty/Series: | Standard Duty | Locking Type: | Concentric |
| Housing Material: | Cast Iron | Insert Number: | VB-212 |
| Maximum Operating Temperature (F): | 200 °F | Ability to Relubricate: | Yes |
| UPC: | 662460000000 | Weight: | 1.46 LB |
| Packaged Length: | 3.13 Inches | Packaged Width: | 1.75 Inches |
| Packaged Height: | 3.13 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | Mexico |
