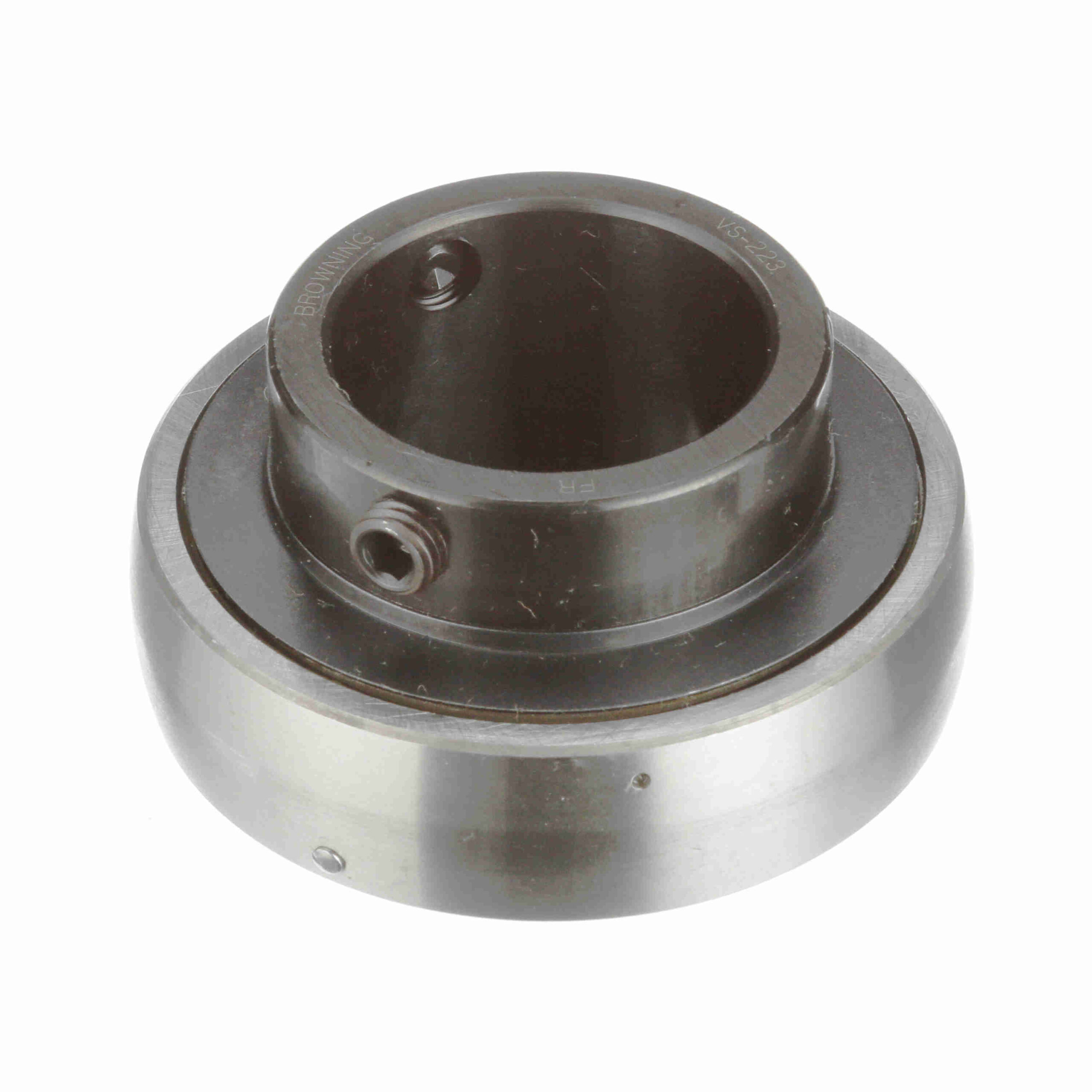

VS-223

Browning bearing insert with lubrication hole and anti-rotation rivet
Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
Single lip contact seal and flinger

Duty Series:	Standard	Housing Type:	Insert Only
Seal Type:	Single Lip Contact Seal with Flinger	Set Screw Thread:	5/16-24
Insert Material:	52100 Bearing Steel; Black Oxided Inner	Inner-Race Heat-Treat Method:	Zone-Hardened
Maximum Operating Temperature:	200 °F	Measure Units:	Inch
Radius:	0.04	Retainer Type:	Ball Riding Retainer
Rolling Element:	Ball Bearing	Bore Shape:	Straight
Radial Dynamic Load Capacity (lb):	5, 782	Lubrication:	Lithium Complex NLGI 2 Grease
Locking Type:	Setscrew	Misalignment:	±1.5° Misalignment - Static Only
Speed (Max):	4000	Internal Clearance:	Standard
Expansion:	No	Relubricatable:	Yes
Bearing Insert Coating:	Black Oxide Coated Inner Ring	Outer Ring Land Profile:	Standard
End Cap:	No	Misalignment Type:	Static Only
Retainer Material:	Molded fiber glass reinforced nylon	Radial Static Load Capacity (lb):	3, 493
Precision Rating:	ABEC 1	Inner Race Profile:	Wide Inner Ring
Outer Race Profile:	Spherical	UPC:	662289526345
Weight:	1.00 LB	Packaged Length:	3.4 Inches
Packaged Width:	3 Inches	Packaged Height:	1.8 Inches
HTC:	8482.10.5052	Country of Origin:	Mexico
