- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal and flinger
VPS-35MM

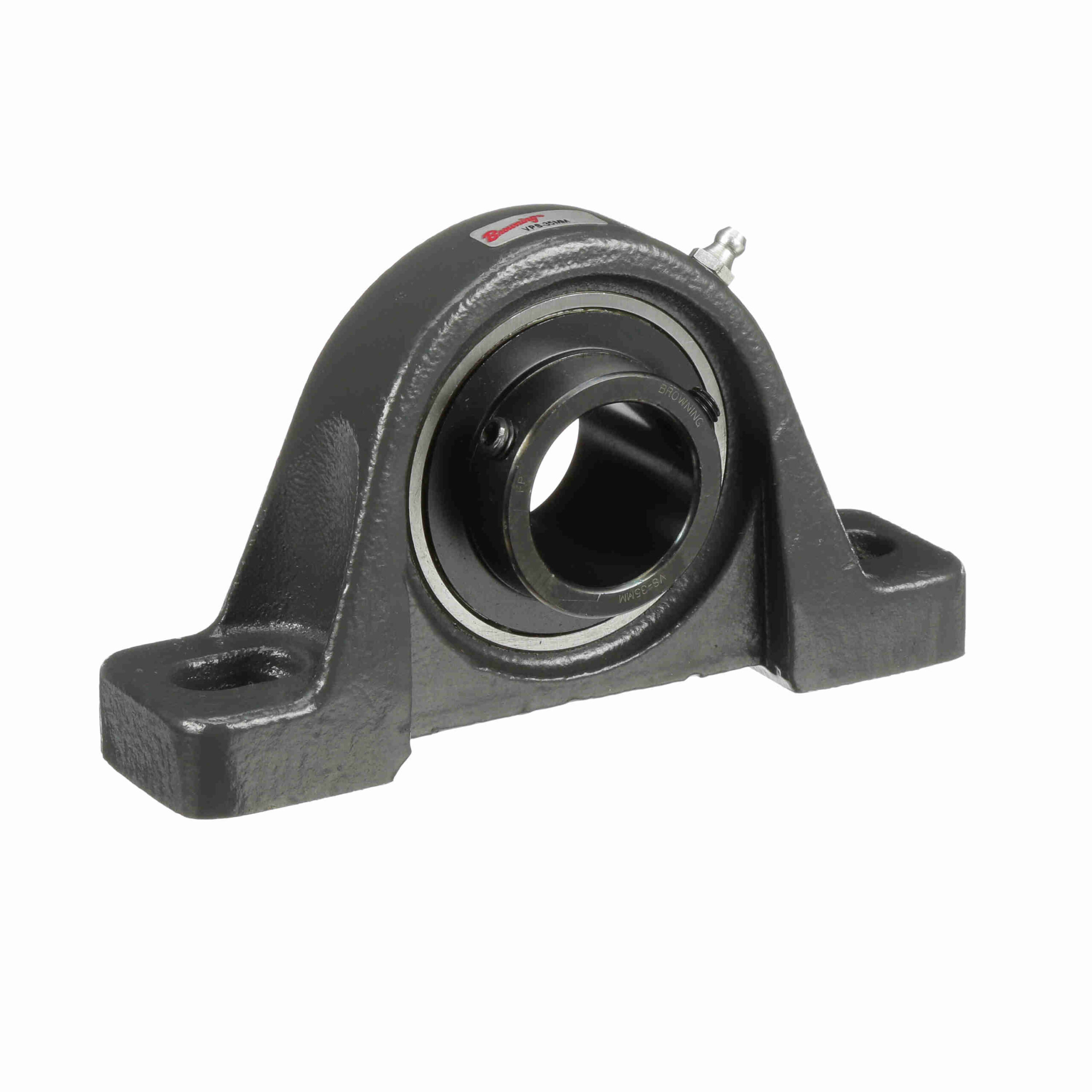

Browning Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Setscrew Lock – VPS-35MM
Out of stock
| Measure Units: | Metric | Seal Type: | Single Lip Contact Seal with Flinger |
|---|---|---|---|
| Internal Clearance: | Standard | Housing Base: | Semi-Solid |
| Rolling Element: | Ball Bearing | Insert Material: | 52100 Bearing Steel, Black Oxided Inner |
| Bore Shape: | Straight | Misalignment: | ±1.5° Misalignment - Static Only |
| Housing Construction: | One Piece | Bearing Insert Coating: | Black Oxide Coated Inner Ring |
| Outer Ring Land Profile: | Standard | Retainer Material: | Molded fiber glass reinforced nylon |
| Misalignment Type: | Static Only | End Cap: | No |
| Housing Color: | Gray | Replaceable Insert: | Yes |
| Retainer Type: | Ball Riding Retainer | Duty/Series: | Standard Duty |
| Maximum Speed (RPM): | 4000 rpm | Housing Type: | Pillow Block, Two Bolt |
| Housing Style: | Pillow Block | Lubrication Type: | Lithium Complex NLGI 2 Grease |
| Locking Type: | Setscrew | Housing Material: | Cast Iron |
| Fixed vs. Expansion: | Fixed | Ability to Relubricate: | Yes |
| Insert Number: | VS-35MM | Maximum Operating Temperature (F): | 200 °F |
| UPC: | 662461000000 | Weight: | 3.51 LB |
| Packaged Length: | 7.1 Inches | Packaged Width: | 4.5 Inches |
| Packaged Height: | 2.1 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | Mexico |
