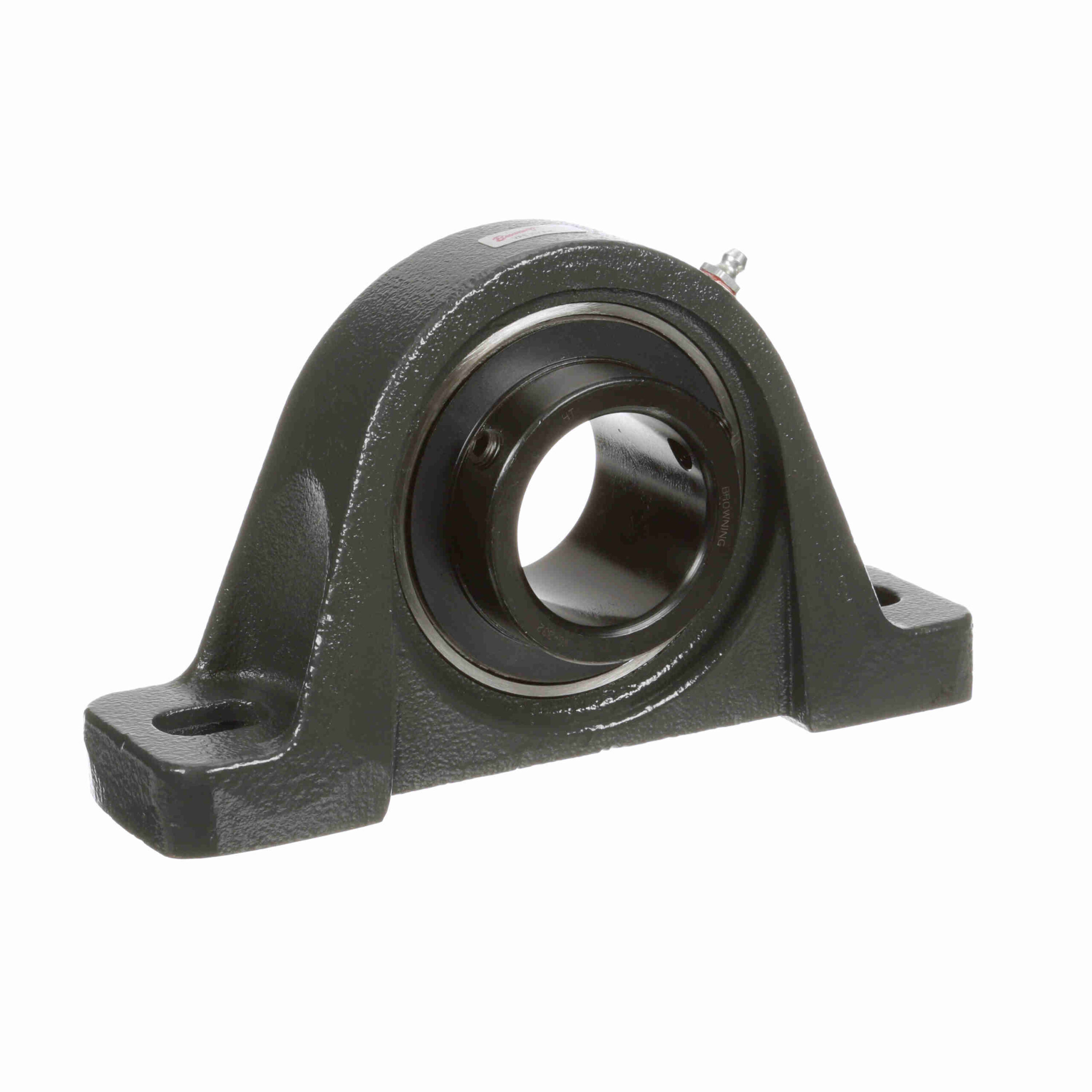

VPS-332 AH

Powder coat epoxy cast iron housing
Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
Single lip contact seal and flinger
Air Handling noise check for quiet operation
Looser than standard housing fit for ease of alignment on lightweight frames

Insert Material:	52100 Bearing Steel, Black Oxided Inner	Rolling Element:	Ball Bearing
Housing Base:	Semi-Solid	Measure Units:	Inch
Internal Clearance:	Standard	Seal Type:	Single Lip Contact Seal with Flinger
Bore Shape:	Straight	Radial Dynamic Load Capacity (lb):	7, 889 lb
Housing Construction:	One Piece	Misalignment:	±1.5° Misalignment - Static Only
Replaceable Insert:	Yes	Outer Ring Land Profile:	Standard
Bearing Insert Coating:	Black Oxide Coated Inner Ring	End Cap:	No
Misalignment Type:	Static Only	Retainer Material:	Molded fiber glass reinforced nylon
Platform:	Air Handling	Options:	Air Handling Housing Fit, Noise Tested
Housing Color:	Gray	Radial Static Load Capacity (lb):	5, 216 lb
Outside Diameter (in):	271875	Fixed vs. Expansion:	Fixed
Retainer Type:	Ball Riding Retainer	Housing Type:	Pillow Block, Two Bolt
Maximum Speed (RPM):	2500 rpm	Locking Type:	Setscrew
Housing Style:	Pillow Block	Duty/Series:	Medium Duty
Lubrication Type:	Lithium Complex NLGI 2 Grease	Housing Material:	Cast Iron
Maximum Operating Temperature (F):	200 °F	Ability to Relubricate:	Yes
Insert Number:	VS-232	UPC:	662460000000
Weight:	8.56 LB	Packaged Length:	9.25 Inches
Packaged Width:	5.12 Inches	Packaged Height:	3 Inches
HTC:	8483.20.8040	Country of Origin:	Mexico
