- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal and flinger
- Air Handling noise check for quiet operation
- Looser than standard housing fit for ease of alignment on lightweight frames
VPS-328 AH

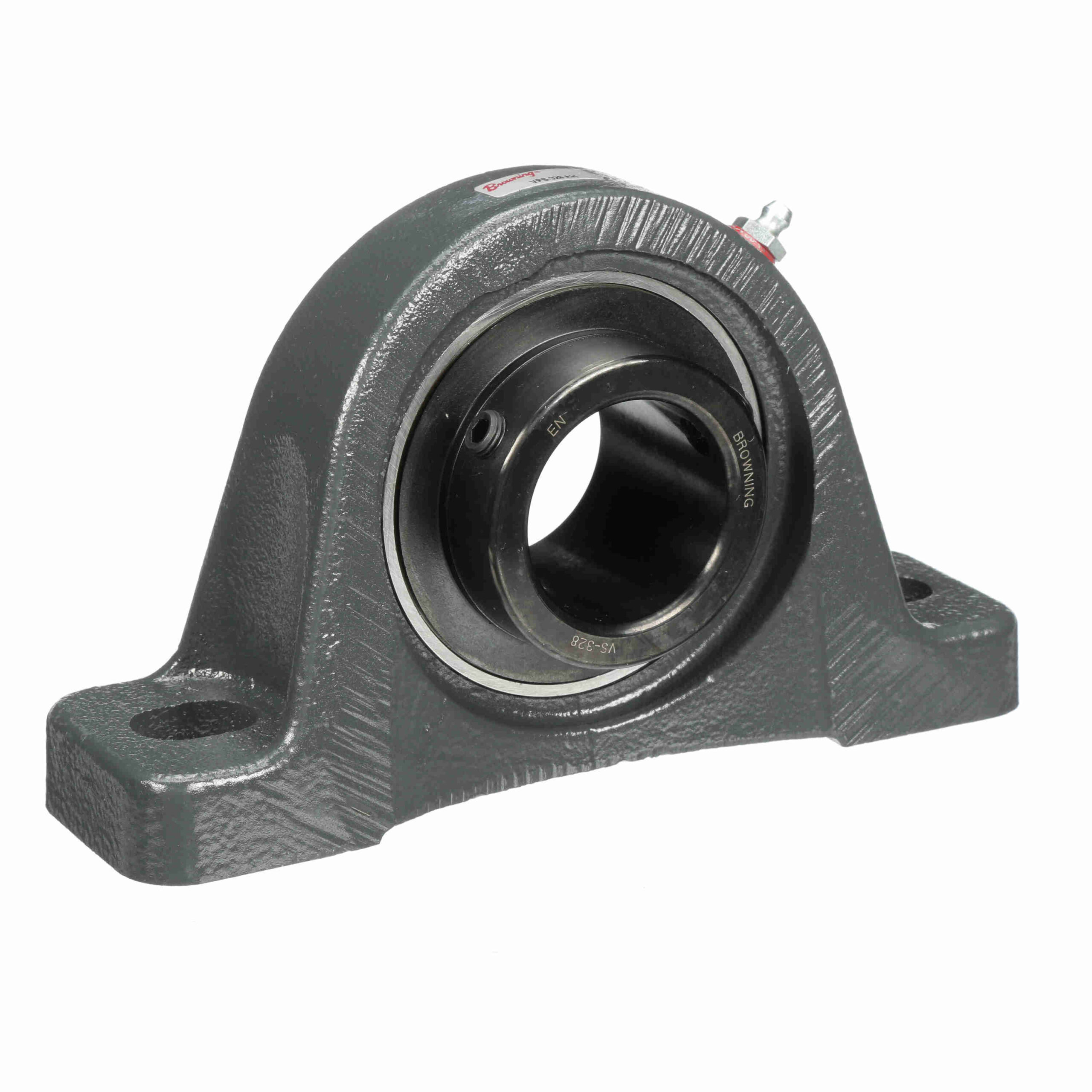

Browning Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Setscrew Lock – Air Handling Housing Fit, Noise Tested – VPS-328 AH
$242.76
Out of stock
Out of stock
| Seal Type: | Single Lip Contact Seal with Flinger | Housing Base: | Semi-Solid |
|---|---|---|---|
| Rolling Element: | Ball Bearing | Internal Clearance: | Standard |
| Measure Units: | Inch | Insert Material: | 52100 Bearing Steel, Black Oxided Inner |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 7, 889 lb |
| Housing Construction: | One Piece | Misalignment: | ±1.5° Misalignment - Static Only |
| Options: | Air Handling Housing Fit, Noise Tested | Housing Color: | Gray |
| Replaceable Insert: | Yes | End Cap: | No |
| Outer Ring Land Profile: | Standard | Misalignment Type: | Static Only |
| Platform: | Air Handling | Retainer Material: | Molded fiber glass reinforced nylon |
| Bearing Insert Coating: | Black Oxide Coated Inner Ring | Radial Static Load Capacity (lb): | 5, 216 lb |
| Outside Diameter (in): | 246875 | Fixed vs. Expansion: | Fixed |
| Housing Style: | Pillow Block | Retainer Type: | Ball Riding Retainer |
| Housing Type: | Pillow Block, Two Bolt | Locking Type: | Setscrew |
| Duty/Series: | Medium Duty | Maximum Speed (RPM): | 3000 rpm |
| Housing Material: | Cast Iron | Lubrication Type: | Lithium Complex NLGI 2 Grease |
| Maximum Operating Temperature (F): | 200 °F | Insert Number: | VS-328 |
| Ability to Relubricate: | Yes | UPC: | 662460000000 |
| Weight: | 6.83 LB | Packaged Length: | 9.25 Inches |
| Packaged Width: | 5.12 Inches | Packaged Height: | 3 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | Mexico |
