- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120? spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal and flinger
VPS-327

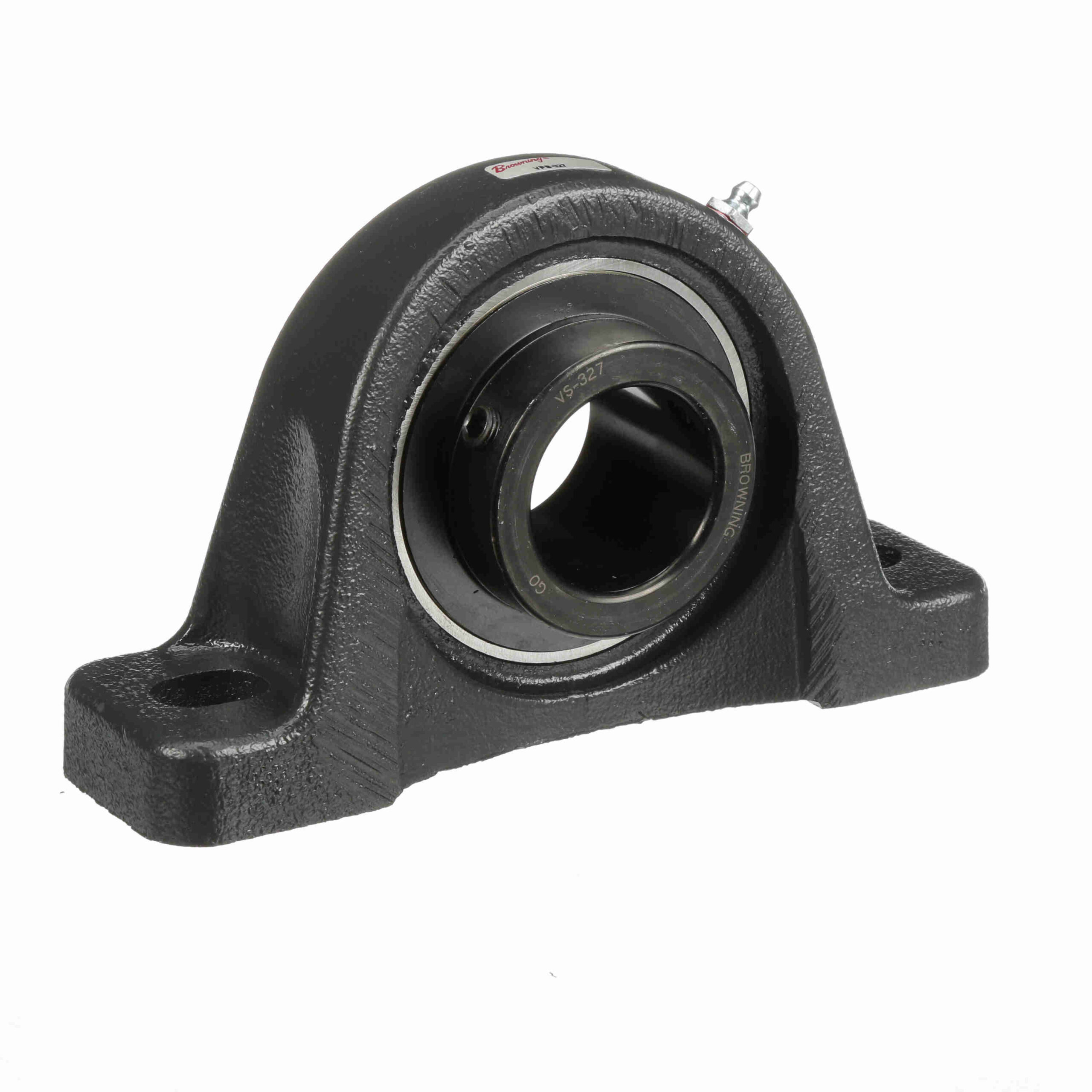

Browning Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Setscrew Lock – VPS-327
$911.42
Out of stock
Out of stock
| Housing Type: | Pillow Block; Two Bolt | Housing Base: | Semi-Solid |
|---|---|---|---|
| Insert Material: | 52100 Bearing Steel; Black Oxided Inner | Expansion: | No |
| Maximum Operating Temperature: | 200 °F | Duty Series: | Medium Duty |
| Seal Type: | Single Lip Contact Seal with Flinger | Retainer Type: | Ball Riding Retainer |
| Internal Clearance: | Standard | Measure Units: | Inch |
| Speed (Max): | 3000 | Insert No.: | VS-327 |
| Housing Material: | Cast Iron | Rolling Element: | Ball Bearing |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 7, 889 |
| Locking Type: | Setscrew | Housing Construction: | One Piece |
| Relubricatable: | Yes | Lubrication: | Lithium Complex NLGI 2 Grease |
| Misalignment: | ±1.5° Misalignment - Static Only | End Cap: | No |
| Bearing Insert Coating: | Black Oxide Coated Inner Ring | Misalignment Type: | Static Only |
| Outer Ring Land Profile: | Standard | Housing Color: | Gray |
| Replaceable Insert: | Yes | Retainer Material: | Molded fiber glass reinforced nylon |
| Radial Static Load Capacity (lb): | 5, 216 | UPC: | 662289525843 |
| Weight: | 6.93 LB | Packaged Length: | 10.2 Inches |
| Packaged Width: | 5.5 Inches | Packaged Height: | 3.1 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | Mexico |
