- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120? spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal
VPS-112

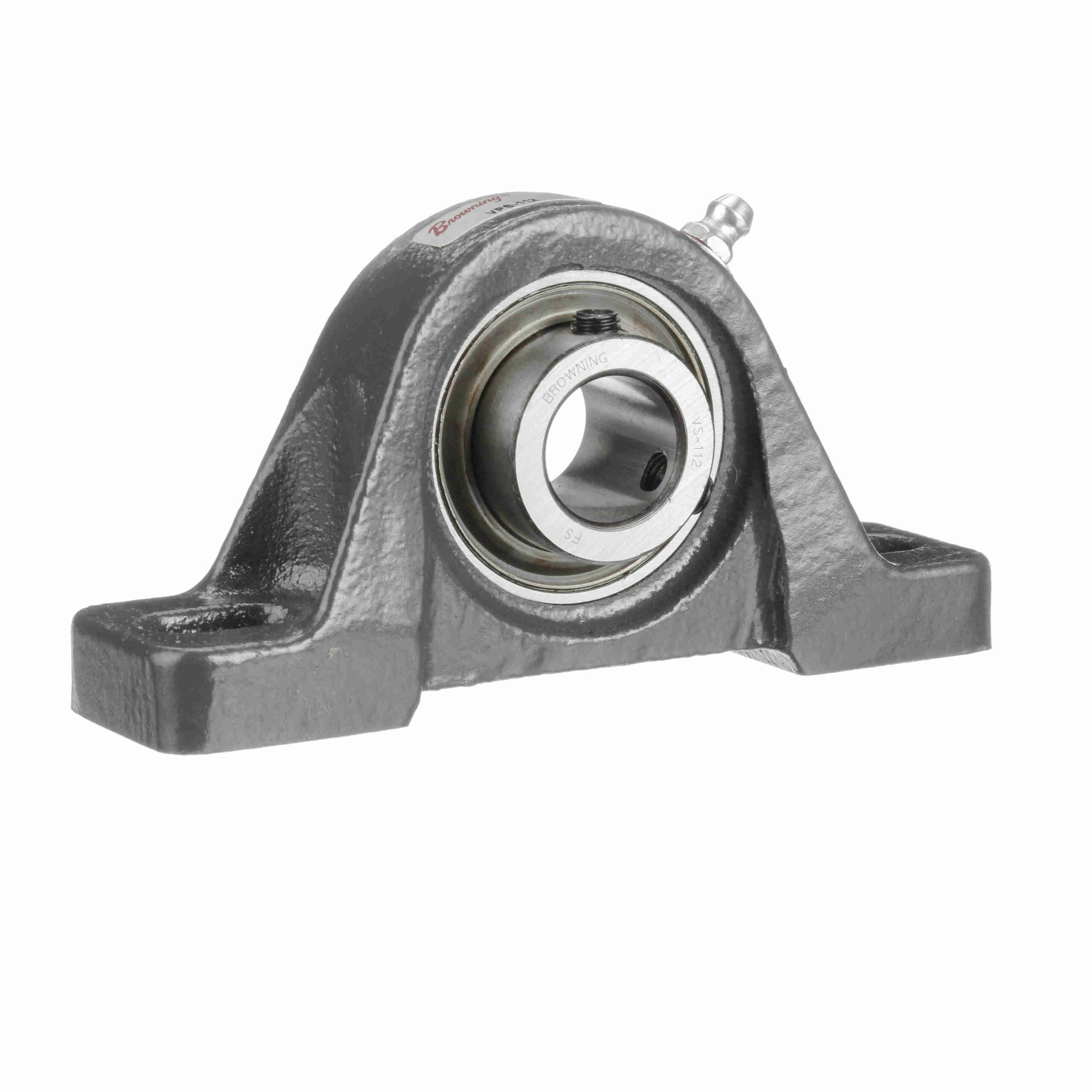

Browning Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel – Setscrew Lock – VPS-112
$49.73
Availability: 11 in stock
Availability: 11 in stock
| Insert Material: | 52100 Bearing Steel | Measure Units: | Inch |
|---|---|---|---|
| Maximum Operating Temperature: | 200 °F | Internal Clearance: | Standard |
| Housing Type: | Pillow Block; Two Bolt | Rolling Element: | Ball Bearing |
| Expansion: | No | Housing Base: | Semi-Solid |
| Insert No.: | VS-112 | Duty Series: | Intermediate Duty |
| Seal Type: | Single Lip Contact Seal | Housing Material: | Cast Iron |
| Retainer Type: | Ball Riding Retainer | Speed (Max): | 4000 |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 2, 611 |
| Lubrication: | Lithium Complex NLGI 2 Grease | Housing Construction: | One Piece |
| Relubricatable: | Yes | Misalignment: | ±1.5° Misalignment - Static Only |
| Locking Type: | Setscrew | Retainer Material: | Molded fiber glass reinforced nylon |
| Replaceable Insert: | Yes | End Cap: | No |
| Housing Color: | Gray | Bearing Insert Coating: | Uncoated |
| Outer Ring Land Profile: | Standard | Misalignment Type: | Static Only |
| Radial Static Load Capacity (lb): | 1, 444 | UPC: | 662289525201 |
| Weight: | 1.42 LB | Packaged Length: | 5.6 Inches |
| Packaged Width: | 3.2 Inches | Packaged Height: | 1.8 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | Mexico |
