- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120? spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal and flinger
VPLS-219

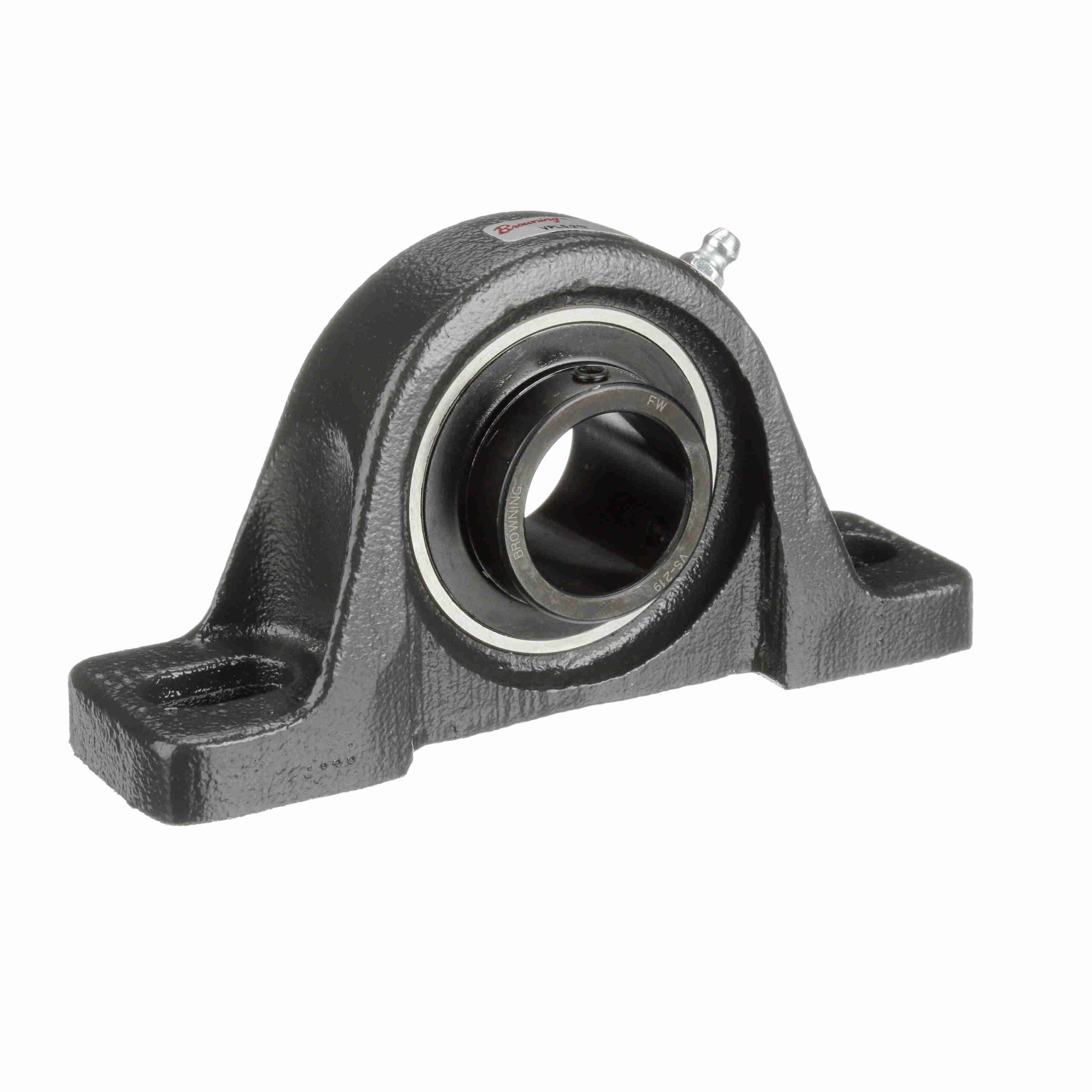

Browning Mounted Cast Iron Two Bolt Low Base Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Setscrew Lock – VPLS-219
$100.61
Availability: 3 in stock
Availability: 3 in stock
| Housing Base: | Semi-Solid | Housing Type: | Pillow Block; Two Bolt; Low Base |
|---|---|---|---|
| Duty Series: | Standard Duty | Seal Type: | Single Lip Contact Seal with Flinger |
| Insert No.: | VS-219 | Rolling Element: | Ball Bearing |
| Housing Material: | Cast Iron | Maximum Operating Temperature: | 200 °F |
| Speed (Max): | 4500 | Measure Units: | Inch |
| Insert Material: | 52100 Bearing Steel; Black Oxided Inner | Expansion: | No |
| Internal Clearance: | Standard | Retainer Type: | Ball Riding Retainer |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 4, 381 |
| Lubrication: | Lithium Complex NLGI 2 Grease | Housing Construction: | One Piece |
| Misalignment: | ±1.5° Misalignment - Static Only | Locking Type: | Setscrew |
| Relubricatable: | Yes | End Cap: | No |
| Misalignment Type: | Static Only | Retainer Material: | Molded fiber glass reinforced nylon |
| Outer Ring Land Profile: | Standard | Replaceable Insert: | Yes |
| Housing Color: | Gray | Bearing Insert Coating: | Black Oxide Coated Inner Ring |
| Radial Static Load Capacity (lb): | 2, 567 | UPC: | 662289524853 |
| Weight: | 2.61 LB | Packaged Length: | 4.5 Inches |
| Packaged Width: | 7.1 Inches | Packaged Height: | 19.6 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | Mexico |
