- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal
VPLS-131

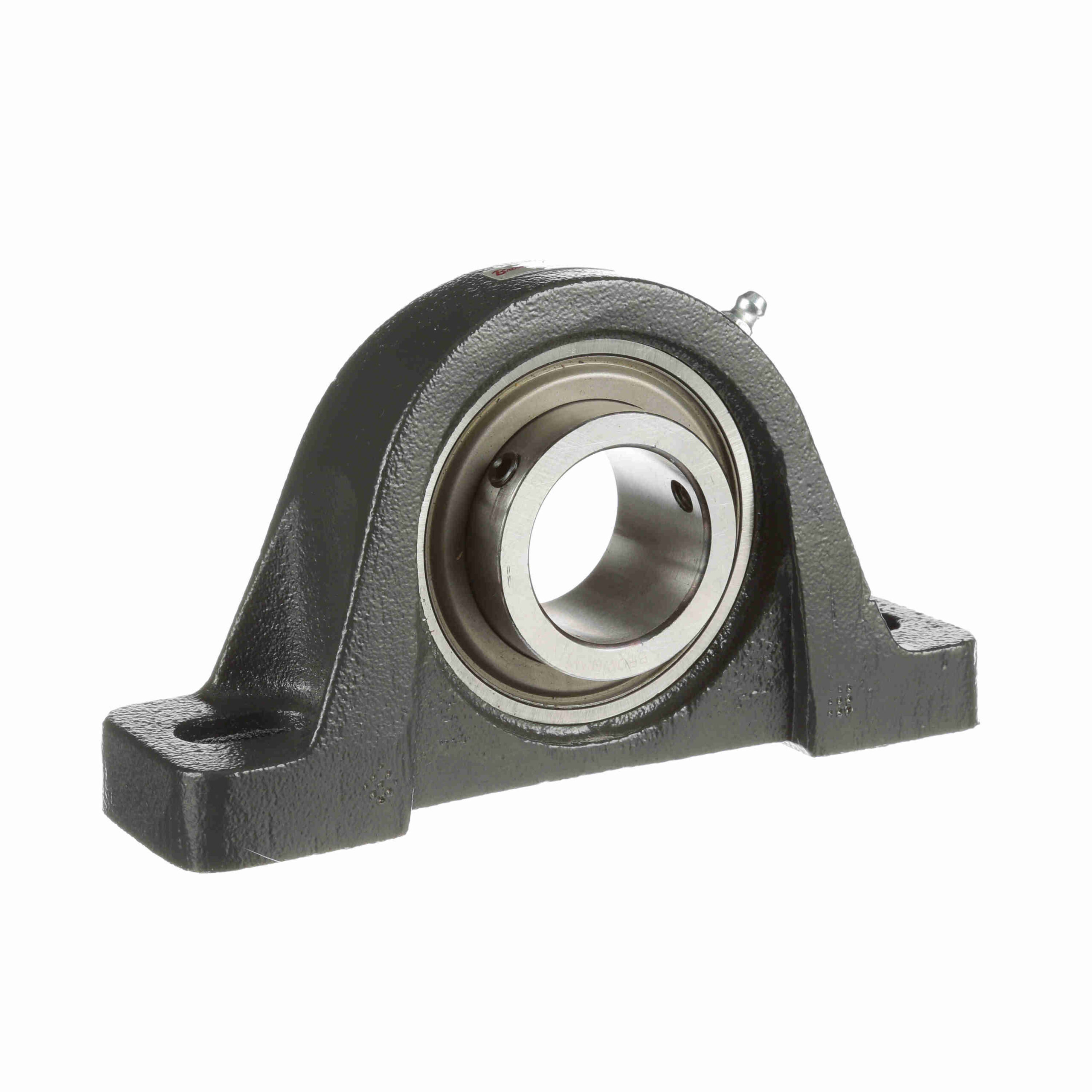

Browning Mounted Cast Iron Two Bolt Low Base Pillow Block Ball Bearing – 52100 Bearing Steel – Setscrew Lock – VPLS-131
Out of stock
| Housing Base: | Semi-Solid | Measure Units: | Inch |
|---|---|---|---|
| Internal Clearance: | Standard | Seal Type: | Single Lip Contact Seal |
| Insert Material: | 52100 Bearing Steel | Rolling Element: | Ball Bearing |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 7, 889 lb |
| Housing Construction: | One Piece | Misalignment: | ±1.5° Misalignment - Static Only |
| Bearing Insert Coating: | Uncoated | Housing Color: | Gray |
| Replaceable Insert: | Yes | Outer Ring Land Profile: | Standard |
| Misalignment Type: | Static Only | Retainer Material: | Molded fiber glass reinforced nylon |
| End Cap: | No | Radial Static Load Capacity (lb): | 5, 216 lb |
| Housing Material: | Cast Iron | Retainer Type: | Ball Riding Retainer |
| Maximum Speed (RPM): | 2000 rpm | Duty/Series: | Intermediate Duty |
| Housing Style: | Pillow Block | Fixed vs. Expansion: | Fixed |
| Housing Type: | Pillow Block, Two Bolt, Low Base | Locking Type: | Setscrew |
| Lubrication Type: | Lithium Complex NLGI 2 Grease | Insert Number: | VS-131 |
| Ability to Relubricate: | Yes | Maximum Operating Temperature (F): | 200 °F |
| UPC: | 662289000000 | Weight: | 5.90 LB |
| Packaged Length: | 9 Inches | Packaged Width: | 5.19 Inches |
| Packaged Height: | 2.38 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | United States of America |
