- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120? spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal
VPLS-116

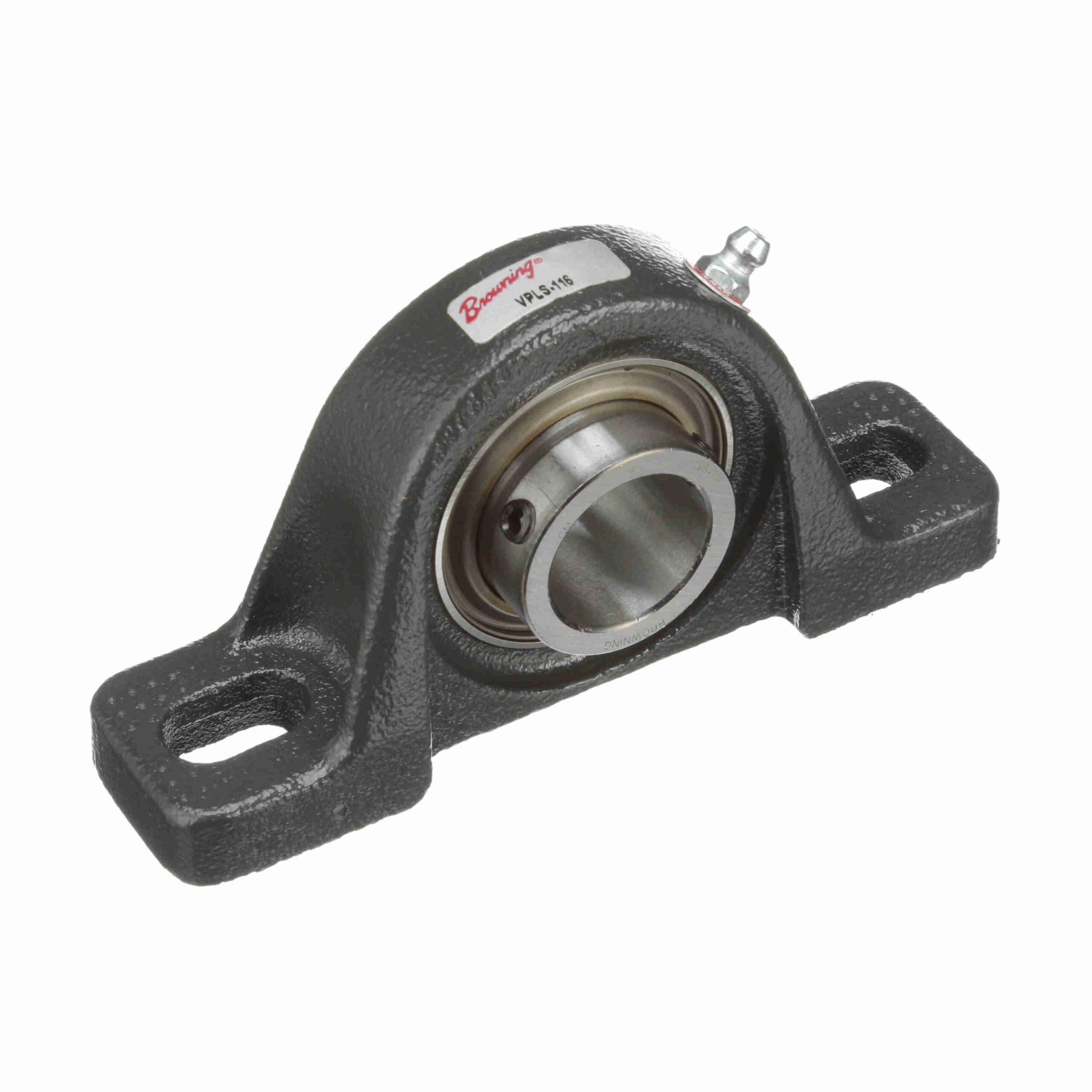

Browning Mounted Cast Iron Two Bolt Low Base Pillow Block Ball Bearing – 52100 Bearing Steel – Setscrew Lock – VPLS-116
$59.08
Availability: 8 in stock
Availability: 8 in stock
| Retainer Type: | Ball Riding Retainer | Measure Units: | Inch |
|---|---|---|---|
| Seal Type: | Single Lip Contact Seal | Insert Material: | 52100 Bearing Steel |
| Expansion: | No | Housing Material: | Cast Iron |
| Insert No.: | VS-116 | Duty Series: | Intermediate Duty |
| Maximum Operating Temperature: | 200 °F | Rolling Element: | Ball Bearing |
| Housing Base: | Semi-Solid | Housing Type: | Pillow Block; Two Bolt; Low Base |
| Internal Clearance: | Standard | Speed (Max): | 3500 |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 2, 801 |
| Misalignment: | ±1.5° Misalignment - Static Only | Relubricatable: | Yes |
| Housing Construction: | One Piece | Locking Type: | Setscrew |
| Lubrication: | Lithium Complex NLGI 2 Grease | Replaceable Insert: | Yes |
| Housing Color: | Gray | Misalignment Type: | Static Only |
| Outer Ring Land Profile: | Standard | Bearing Insert Coating: | Uncoated |
| Retainer Material: | Molded fiber glass reinforced nylon | End Cap: | No |
| Radial Static Load Capacity (lb): | 1, 651 | UPC: | 662289524594 |
| Weight: | 1.56 LB | Packaged Length: | 6.1 Inches |
| Packaged Width: | 3.6 Inches | Packaged Height: | 1.8 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | Mexico |
