- Powder coat epoxy cast iron housing
- BOA Concentric locking for near perfect concentricity
- Single lip contact seal and flinger

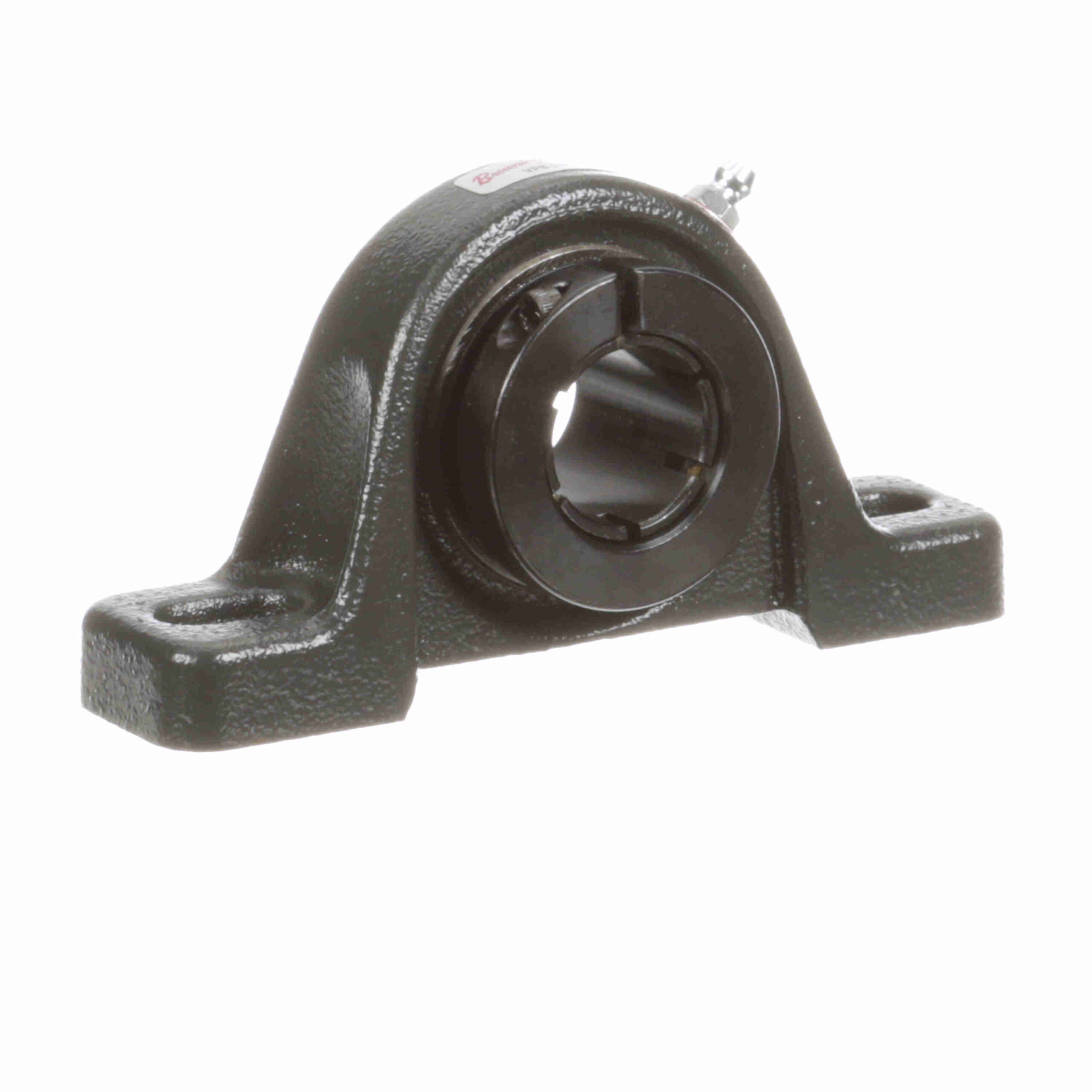

VPB-216
Browning Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Concentric Lock – VPB-216
$130.86
Out of stock
Out of stock
| Internal Clearance: | Standard | Seal Type: | Single Lip Contact Seal with Flinger |
|---|---|---|---|
| Duty Series: | Standard Duty | Housing Type: | Pillow Block, Two Bolt |
| Rolling Element: | Ball Bearing | Maximum Operating Temperature: | 200 °F |
| Measure Units: | Inch | Retainer Type: | Ball Riding Retainer |
| Speed (Max): | 5500 | Housing Base: | Semi-Solid |
| Insert Material: | 52100 Bearing Steel, Black Oxided Inner | Expansion: | No |
| Insert No.: | VB-216 | Housing Material: | Cast Iron |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 2, 801 |
| Lubrication: | Lithium Complex NLGI 2 Grease | Misalignment: | ±1.5° Misalignment - Static Only |
| Relubricatable: | Yes | Locking Type: | Concentric |
| Housing Construction: | One Piece | End Cap: | No |
| Outer Ring Land Profile: | Standard | Replaceable Insert: | Yes |
| Misalignment Type: | Static Only | Retainer Material: | Molded fiber glass reinforced nylon |
| Bearing Insert Coating: | Black Oxide Coated Inner Ring | Housing Color: | Gray |
| Radial Static Load Capacity (lb): | 1, 651 | UPC: | 662460345925 |
| Weight: | 1.86 LB | Packaged Length: | 3.5 Inches |
| Packaged Width: | 1.69 Inches | Packaged Height: | 5.75 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | Mexico |
