Global Dynamic Systems

VF4S-120

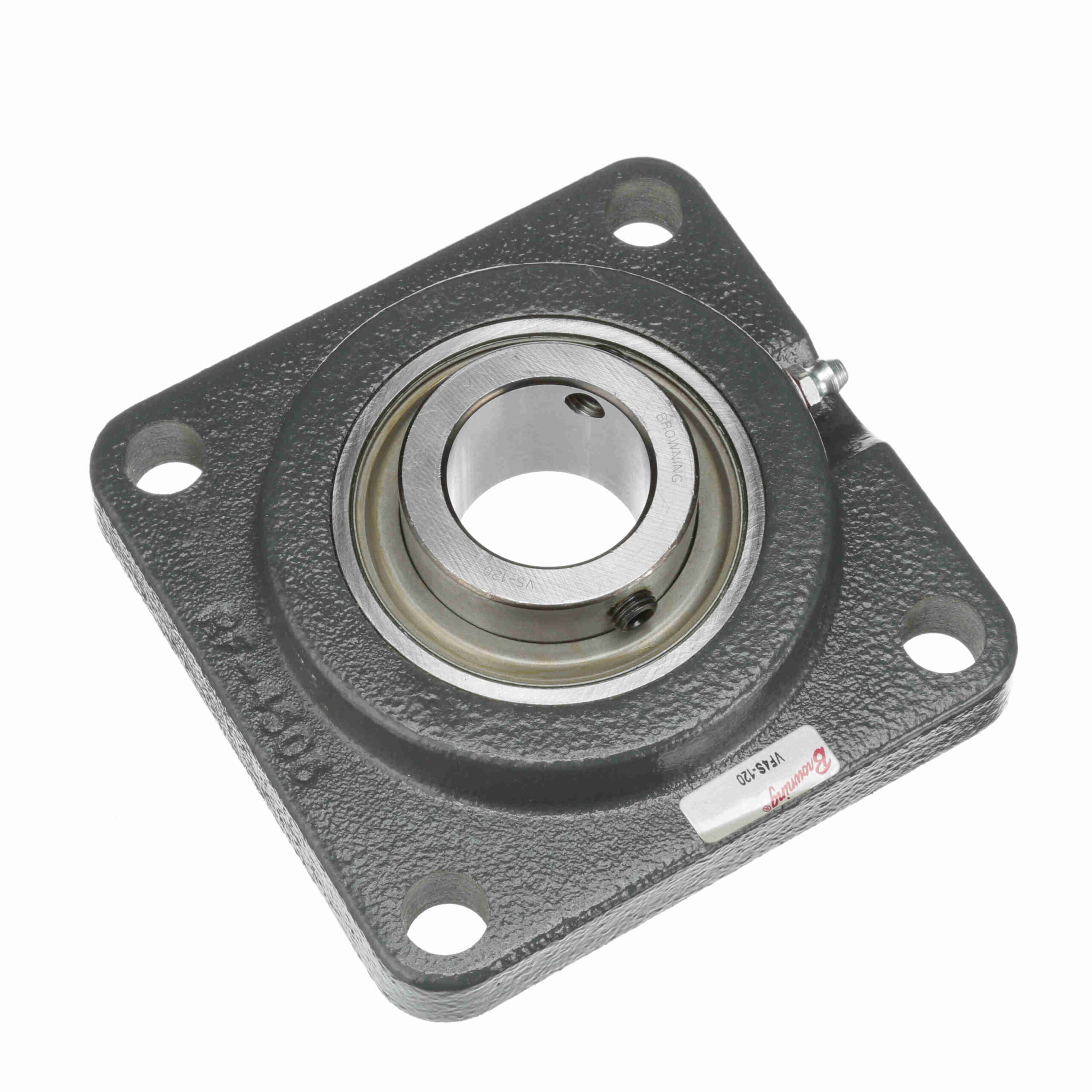

Browning Mounted Cast Iron Four Bolt Flange Ball Bearing – 52100 Bearing Steel – Setscrew Lock – VF4S-120

SKU: 767563 Category:

$67.40

Out of stock

Out of stock

stripe checkout
  • Powder coat epoxy cast iron housing
  • Zone hardened inner ring with 120? spacing setscrew lock with diamond faceted setscrews
  • Single lip contact seal
Maximum Operating Temperature:

200 °F

Housing Type:

Flange; Four Bolt

Duty Series:

Intermediate Duty

Retainer Type:

Ball Riding Retainer

Housing Base:

Semi-Solid

Inner-Race Heat-Treat Method:

Zone-Hardened

Bore Shape:

Straight

Insert No.:

VS-120

Rolling Element:

Ball Bearing

Seal Type:

Single Lip Contact Seal

Expansion:

No

Measure Units:

Inch

Housing Material:

Cast Iron

Insert Material:

52100 Bearing Steel

Radial Dynamic Load Capacity (lb):

5, 782

Relubricatable:

Yes

Pilot Configuration:

No Pilot

Housing Construction:

One Piece

Internal Clearance:

Standard

Speed (Max):

2500

Lubrication:

Lithium Complex NLGI 2 Grease

Misalignment:

±1.5° Misalignment - Static Only

Locking Type:

Setscrew

Bearing Insert Coating:

Uncoated

Outer Ring Land Profile:

Standard

End Cap:

No

Replaceable Insert:

Yes

Housing Color:

Gray

Misalignment Type:

Static Only

Retainer Material:

Molded fiber glass reinforced nylon

T Core:

3.25

Radial Static Load Capacity (lb):

3, 493

UPC:

662289313792

Weight:

3.52 LB

Packaged Length:

5.3 Inches

Packaged Width:

5.2 Inches

Packaged Height:

2.1 Inches

HTC:

8483.20.4040

Country of Origin:

Mexico
