- Powder coat epoxy cast iron housing
- Eccentric locking designed for locking in direction of rotation
- Single lip contact seal and flinger
VF4E-220

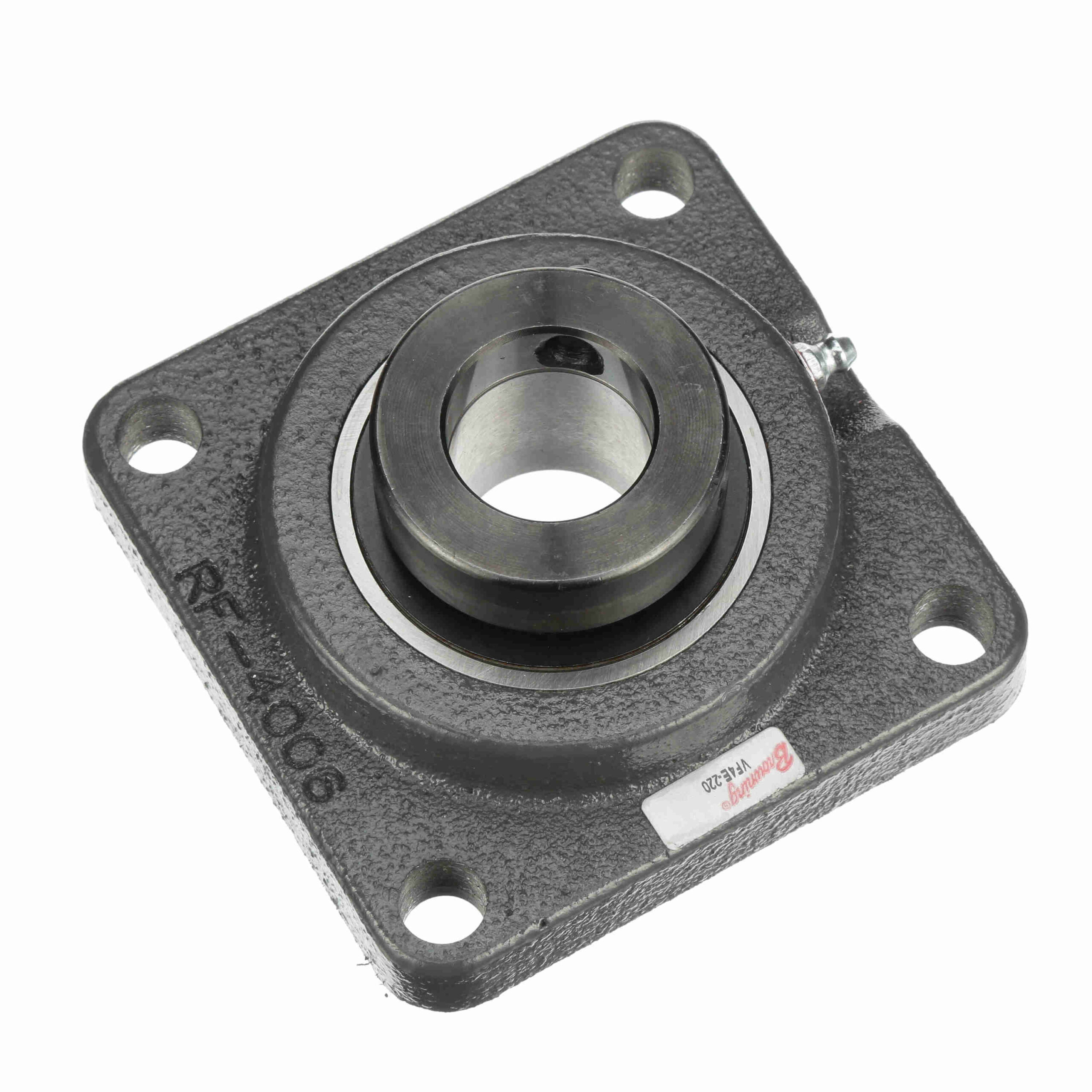

Browning Mounted Cast Iron Four Bolt Flange Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Eccentric Lock – VF4E-220
$119.76
Out of stock
Out of stock
| Housing Type: | Flange, Four Bolt | Housing Base: | Semi-Solid |
|---|---|---|---|
| Seal Type: | Single Lip Contact Seal with Flinger | Duty Series: | Standard Duty |
| Housing Material: | Cast Iron | Measure Units: | Inch |
| Insert No.: | VE-220 | Rolling Element: | Ball Bearing |
| Retainer Type: | Ball Riding Retainer | Expansion: | No |
| Inner-Race Heat-Treat Method: | Zone-Hardened | Maximum Operating Temperature: | 200 °F |
| Insert Material: | 52100 Bearing Steel, Black Oxided Inner | Bore Shape: | Straight |
| Radial Dynamic Load Capacity (lb): | 5, 782 | Relubricatable: | Yes |
| Pilot Configuration: | No Pilot | Lubrication: | Lithium Complex NLGI 2 Grease |
| Speed (Max): | 4000 | Misalignment: | ±1.5° Misalignment - Static Only |
| Housing Construction: | One Piece | Internal Clearance: | Standard |
| Locking Type: | Eccentric | Retainer Material: | Molded fiber glass reinforced nylon |
| Housing Color: | Gray | Outer Ring Land Profile: | Standard |
| Misalignment Type: | Static Only | End Cap: | No |
| Replaceable Insert: | Yes | Bearing Insert Coating: | Black Oxide Coated Inner Ring |
| T Core: | 3.25 | Radial Static Load Capacity (lb): | 3, 493 |
| UPC: | 662289522026 | Weight: | 4.32 LB |
| Packaged Length: | 5.2 Inches | Packaged Width: | 4.9 Inches |
| Packaged Height: | 2.6 Inches | HTC: | 8483.20.4040 |
| Country of Origin: | Mexico |
