- Powder coat epoxy cast iron housing
- Eccentric locking designed for locking in direction of rotation
- Single lip contact seal
VF4E-131

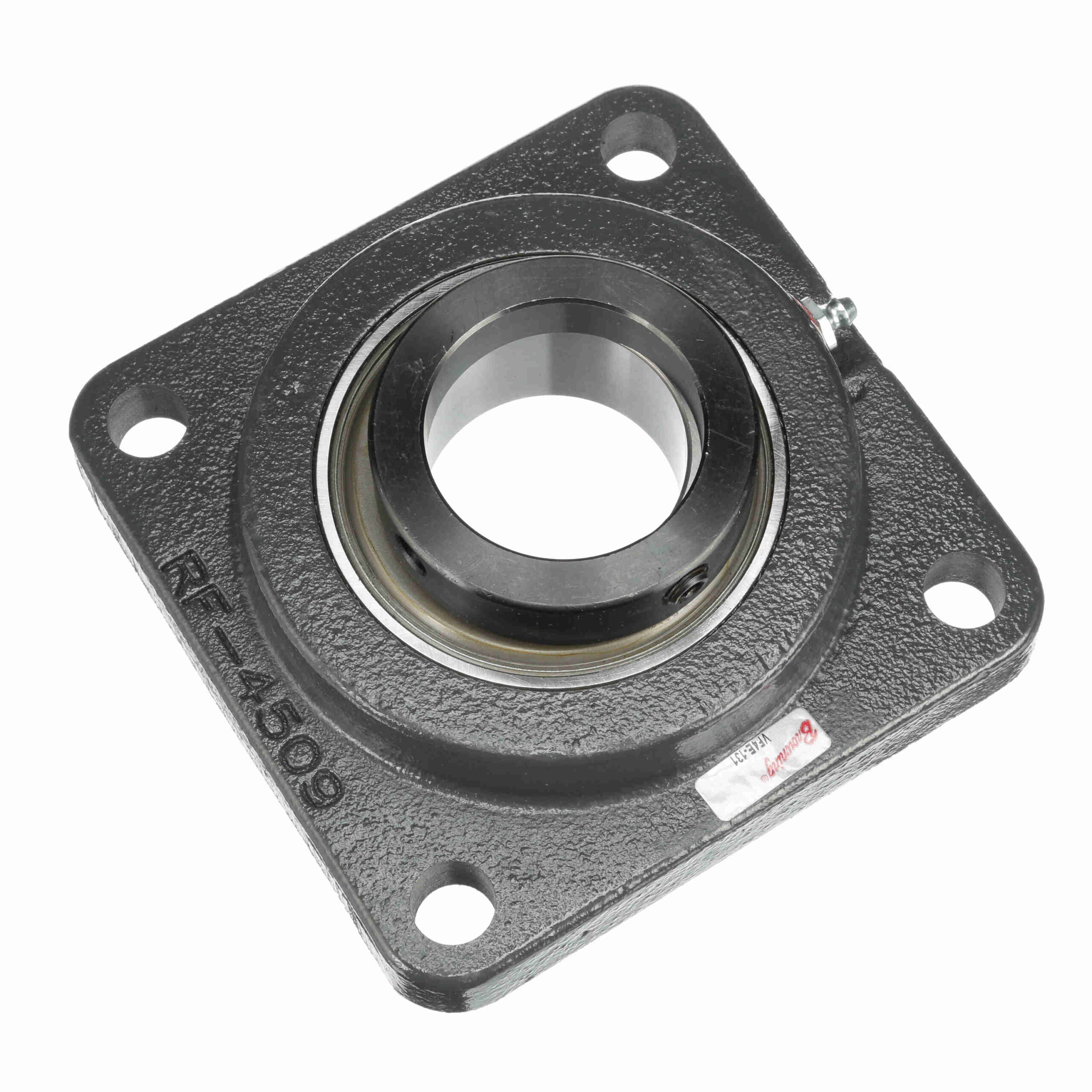

Browning Mounted Cast Iron Four Bolt Flange Ball Bearing – 52100 Bearing Steel – Eccentric Lock – VF4E-131
$149.79
Availability: 7 in stock
Availability: 7 in stock
| Housing Type: | Flange; Four Bolt | Housing Base: | Semi-Solid |
|---|---|---|---|
| Inner-Race Heat-Treat Method: | Zone-Hardened | Housing Material: | Cast Iron |
| Measure Units: | Inch | Expansion: | No |
| Insert Material: | 52100 Bearing Steel | Bore Shape: | Straight |
| Retainer Type: | Ball Riding Retainer | Duty Series: | Intermediate Duty |
| Insert No.: | VE-131 | Maximum Operating Temperature: | 200 °F |
| Seal Type: | Single Lip Contact Seal | Rolling Element: | Ball Bearing |
| Radial Dynamic Load Capacity (lb): | 7, 889 | Relubricatable: | Yes |
| Pilot Configuration: | No Pilot | Internal Clearance: | Standard |
| Locking Type: | Eccentric | Lubrication: | Lithium Complex NLGI 2 Grease |
| Housing Construction: | One Piece | Misalignment: | ±1.5° Misalignment - Static Only |
| Speed (Max): | 2000 | Housing Color: | Gray |
| Bearing Insert Coating: | Uncoated | Outer Ring Land Profile: | Standard |
| End Cap: | No | Replaceable Insert: | Yes |
| Retainer Material: | Molded fiber glass reinforced nylon | Misalignment Type: | Static Only |
| Radial Static Load Capacity (lb): | 5, 216 | UPC: | 662289313389 |
| Weight: | 6.12 LB | Packaged Length: | 6.75 Inches |
| Packaged Width: | 6.5 Inches | Packaged Height: | 2.44 Inches |
| HTC: | 8483.20.4040 | Country of Origin: | Mexico |
