- Powder coat epoxy malleable iron housing
- Zone hardened inner ring with 120? spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal
VF3S-116M

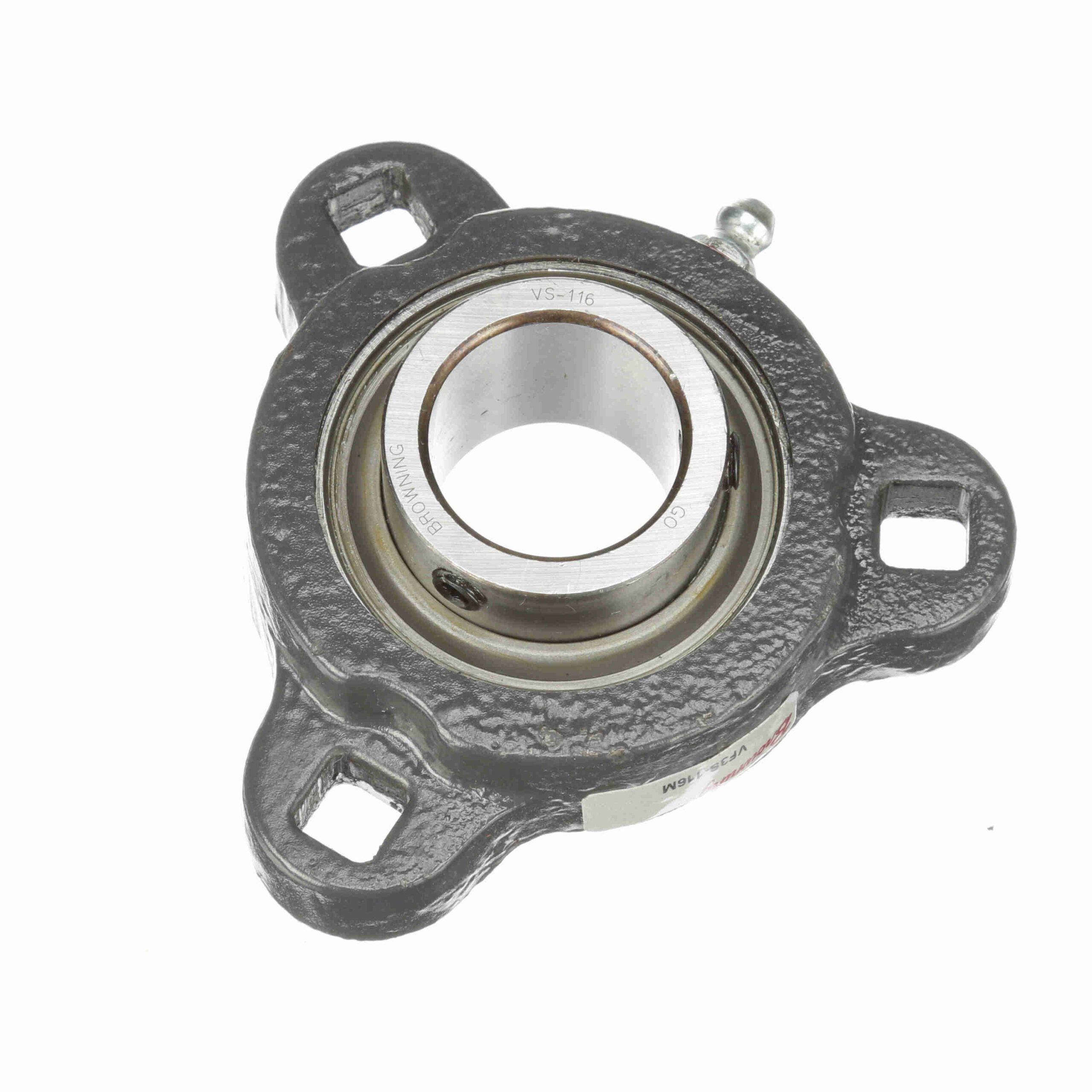

Browning Mounted Ductile Iron Three Bolt Flange Ball Bearing – 52100 Bearing Steel – Setscrew Lock – VF3S-116M
$54.90
Availability: 48 in stock
Availability: 48 in stock
| Duty Series: | Light Duty | Speed (Max): | 3500 |
|---|---|---|---|
| Bore Shape: | Straight | Housing Type: | Flange; Three Bolt |
| Seal Type: | Single Lip Contact Seal | Insert Material: | 52100 Bearing Steel |
| Expansion: | No | Housing Base: | Solid |
| Insert No.: | VS-116 | Rolling Element: | Ball Bearing |
| Inner-Race Heat-Treat Method: | Zone-Hardened | Retainer Type: | Ball Riding Retainer |
| Measure Units: | Inch | Maximum Operating Temperature: | 200 °F |
| Housing Material: | Ductile Iron | Relubricatable: | Yes |
| Pilot Configuration: | No Pilot | Lubrication: | Lithium Complex NLGI 2 Grease |
| Misalignment: | ±1.5° Misalignment - Static Only | Radial Dynamic Load Capacity (lb): | 2, 801 |
| Housing Construction: | One Piece | Locking Type: | Setscrew |
| Internal Clearance: | Standard | Misalignment Type: | Static Only |
| Outer Ring Land Profile: | Standard | Retainer Material: | Molded fiber glass reinforced nylon |
| Replaceable Insert: | Yes | Housing Color: | Gray |
| End Cap: | No | Bearing Insert Coating: | Uncoated |
| Bolt Type: | Carriage Bolt | Bolt Hole Type: | Square Hole |
| Radial Static Load Capacity (lb): | 1, 651 | UPC: | 662289543199 |
| Weight: | 1.05 LB | Packaged Length: | 4 Inches |
| Packaged Width: | 1.5 Inches | Packaged Height: | 3.94 Inches |
| HTC: | 8483.20.4040 | Country of Origin: | Mexico |
