- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal
VF2S-122

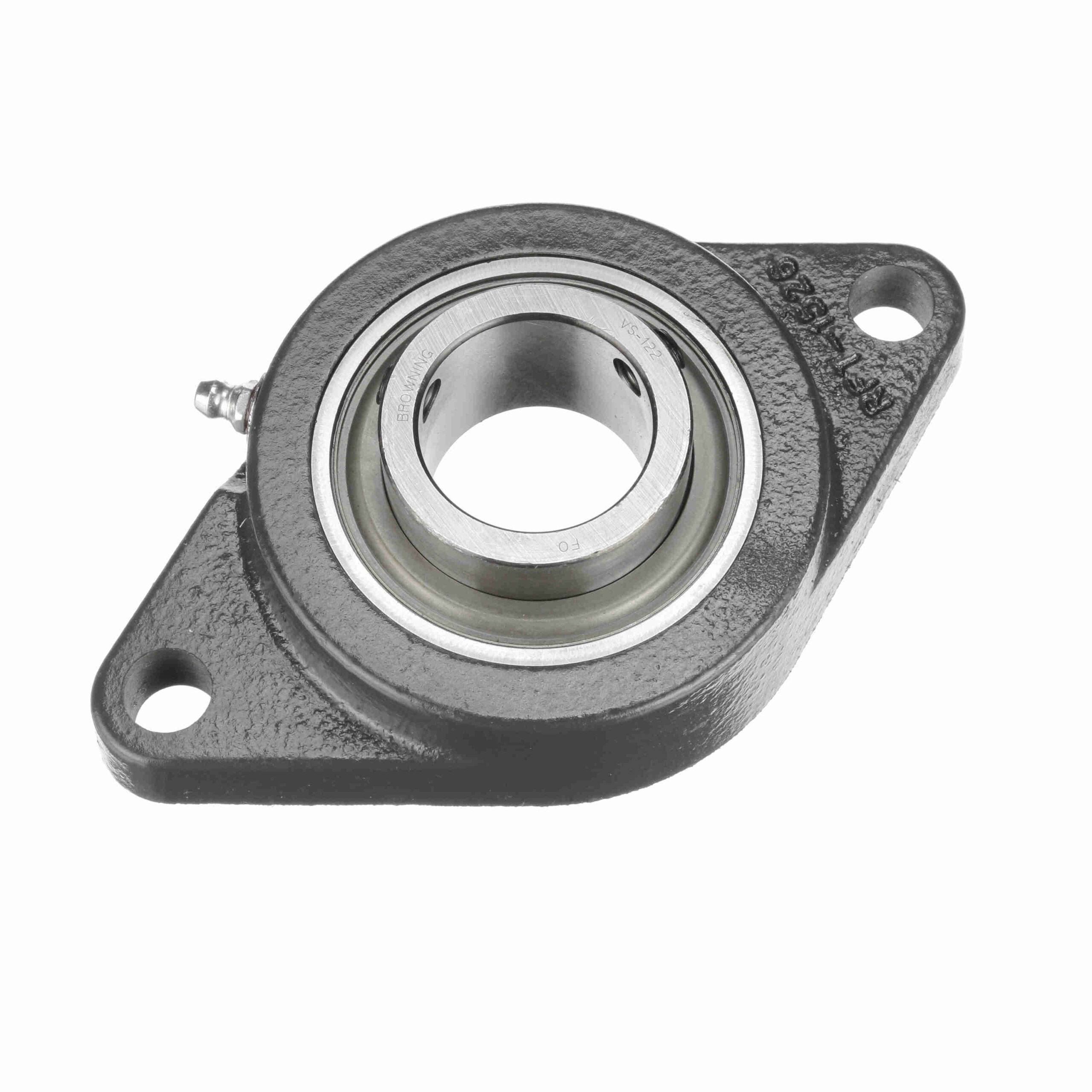

Browning Mounted Cast Iron Two Bolt Flange Ball Bearing – 52100 Bearing Steel – Setscrew Lock – VF2S-122
$80.60
Availability: 22 in stock
Availability: 22 in stock
| Housing Base: | Semi-Solid | Housing Material: | Cast Iron |
|---|---|---|---|
| Expansion: | No | Retainer Type: | Ball Riding Retainer |
| Duty Series: | Intermediate Duty | Insert Material: | 52100 Bearing Steel |
| Seal Type: | Single Lip Contact Seal | Insert No.: | VS-122 |
| Inner-Race Heat-Treat Method: | Zone-Hardened | Rolling Element: | Ball Bearing |
| Maximum Operating Temperature: | 200 °F | Measure Units: | Inch |
| Pilot Configuration: | No Pilot | Relubricatable: | Yes |
| Radial Dynamic Load Capacity (lb): | 5, 782 | Housing Type: | Flange, Two Bolt |
| Lubrication: | Lithium Complex NLGI 2 Grease | Bore Shape: | Straight |
| Housing Construction: | One Piece | Misalignment: | ±1.5° Misalignment - Static Only |
| Speed (Max): | 2500 | Internal Clearance: | Standard |
| Locking Type: | Setscrew | Bearing Insert Coating: | Uncoated |
| End Cap: | No | Misalignment Type: | Static Only |
| Retainer Material: | Molded fiber glass reinforced nylon | Housing Color: | Gray |
| Outer Ring Land Profile: | Standard | Replaceable Insert: | Yes |
| Radial Static Load Capacity (lb): | 3, 493 | UPC: | 662289521210 |
| Weight: | 2.43 LB | Packaged Length: | 5.2 Inches |
| Packaged Width: | 5.4 Inches | Packaged Height: | 2.1 Inches |
| HTC: | 8483.20.4040 | Country of Origin: | Mexico |
