- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120? spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal
VF2S-108

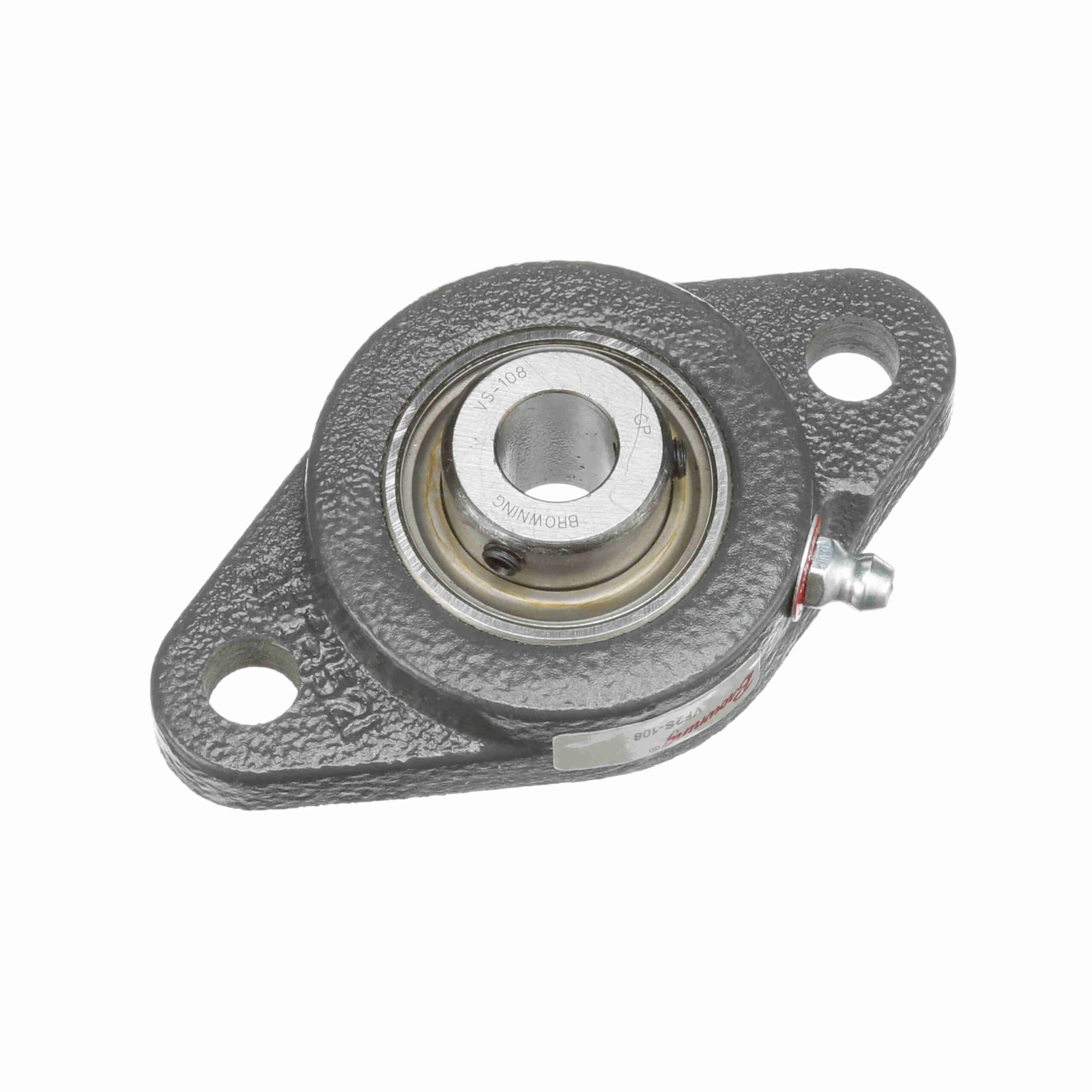

Browning Mounted Cast Iron Two Bolt Flange Ball Bearing – 52100 Bearing Steel – Setscrew Lock – VF2S-108
$50.80
Availability: 2 in stock
Availability: 2 in stock
| Retainer Type: | Ball Riding Retainer | Inner-Race Heat-Treat Method: | Zone-Hardened |
|---|---|---|---|
| Maximum Operating Temperature: | 200 °F | Duty Series: | Intermediate Duty |
| Housing Material: | Cast Iron | Seal Type: | Single Lip Contact Seal |
| Insert No.: | VS-108 | Measure Units: | Inch |
| Insert Material: | 52100 Bearing Steel | Expansion: | No |
| Housing Base: | Semi-Solid | Rolling Element: | Ball Bearing |
| Relubricatable: | Yes | Pilot Configuration: | No Pilot |
| Internal Clearance: | Standard | Bore Shape: | Straight |
| Speed (Max): | 5000 | Housing Construction: | One Piece |
| Housing Type: | Flange; Two Bolt | Lubrication: | Lithium Complex NLGI 2 Grease |
| Locking Type: | Setscrew | Misalignment: | ±1.5° Misalignment - Static Only |
| Radial Dynamic Load Capacity (lb): | 2, 108 | Housing Color: | Gray |
| Outer Ring Land Profile: | Standard | Replaceable Insert: | Yes |
| End Cap: | No | Misalignment Type: | Static Only |
| Bearing Insert Coating: | Uncoated | Retainer Material: | Molded fiber glass reinforced nylon |
| Radial Static Load Capacity (lb): | 1, 117 | UPC: | 662289521074 |
| Weight: | 0.77 LB | Packaged Length: | 3.4 Inches |
| Packaged Width: | 3.2 Inches | Packaged Height: | 1.9 Inches |
| HTC: | 8483.20.4040 | Country of Origin: | Mexico |
