- Powder coat epoxy cast iron housing
- Eccentric locking designed for locking in direction of rotation
- Single lip contact seal and flinger
VF2E-210

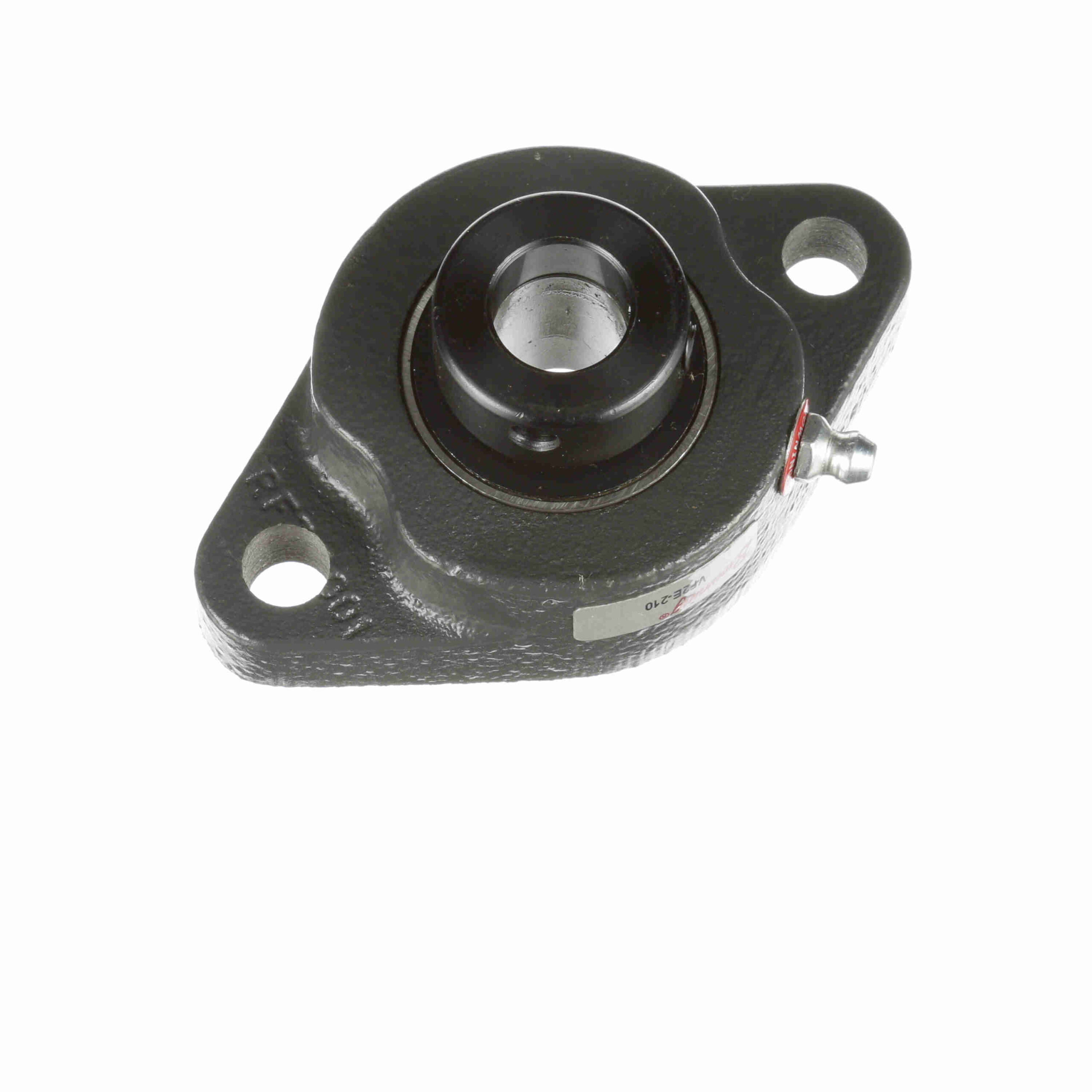

Browning Mounted Cast Iron Two Bolt Flange Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Eccentric Lock – VF2E-210
Out of stock
| Rolling Element: | Ball Bearing | Measure Units: | Inch |
|---|---|---|---|
| Insert Material: | 52100 Bearing Steel, Black Oxided Inner | Seal Type: | Single Lip Contact Seal with Flinger |
| Housing Base: | Semi-Solid | Pilot Configuration: | No Pilot |
| Internal Clearance: | Standard | Misalignment: | ±1.5° Misalignment - Static Only |
| Bore Shape: | Straight | Housing Construction: | One Piece |
| Radial Dynamic Load Capacity (lb): | 2, 108 lb | Bearing Insert Coating: | Black Oxide Coated Inner Ring |
| Retainer Material: | Molded fiber glass reinforced nylon | End Cap: | No |
| Housing Color: | Gray | Replaceable Insert: | Yes |
| Misalignment Type: | Static Only | Outer Ring Land Profile: | Standard |
| Radial Static Load Capacity (lb): | 1, 117 lb | Fixed vs. Expansion: | Fixed |
| Housing Style: | Flange Block | Housing Material: | Cast Iron |
| Locking Type: | Eccentric | Retainer Type: | Ball Riding Retainer |
| Duty/Series: | Standard Duty | Housing Type: | Flange, Two Bolt |
| Maximum Speed (RPM): | 7500 rpm | Lubrication Type: | Lithium Complex NLGI 2 Grease |
| Inner Race Heat Treat Method: | Zone-Hardened | Ability to Relubricate: | Yes |
| Maximum Operating Temperature (F): | 200 °F | Insert Number: | VE-210 |
| UPC: | 662289520718 | Weight: | 1.10 LB |
| Packaged Length: | 3.3 Inches | Packaged Width: | 3.2 Inches |
| Packaged Height: | 1.8 Inches | HTC: | 8483.20.4040 |
| Country of Origin: | Mexico |
