- Stud type cam follower
- V-grooved outside diameter
- Tapered bearing insert
- Hex hole on thread face
VCF 4 1/2

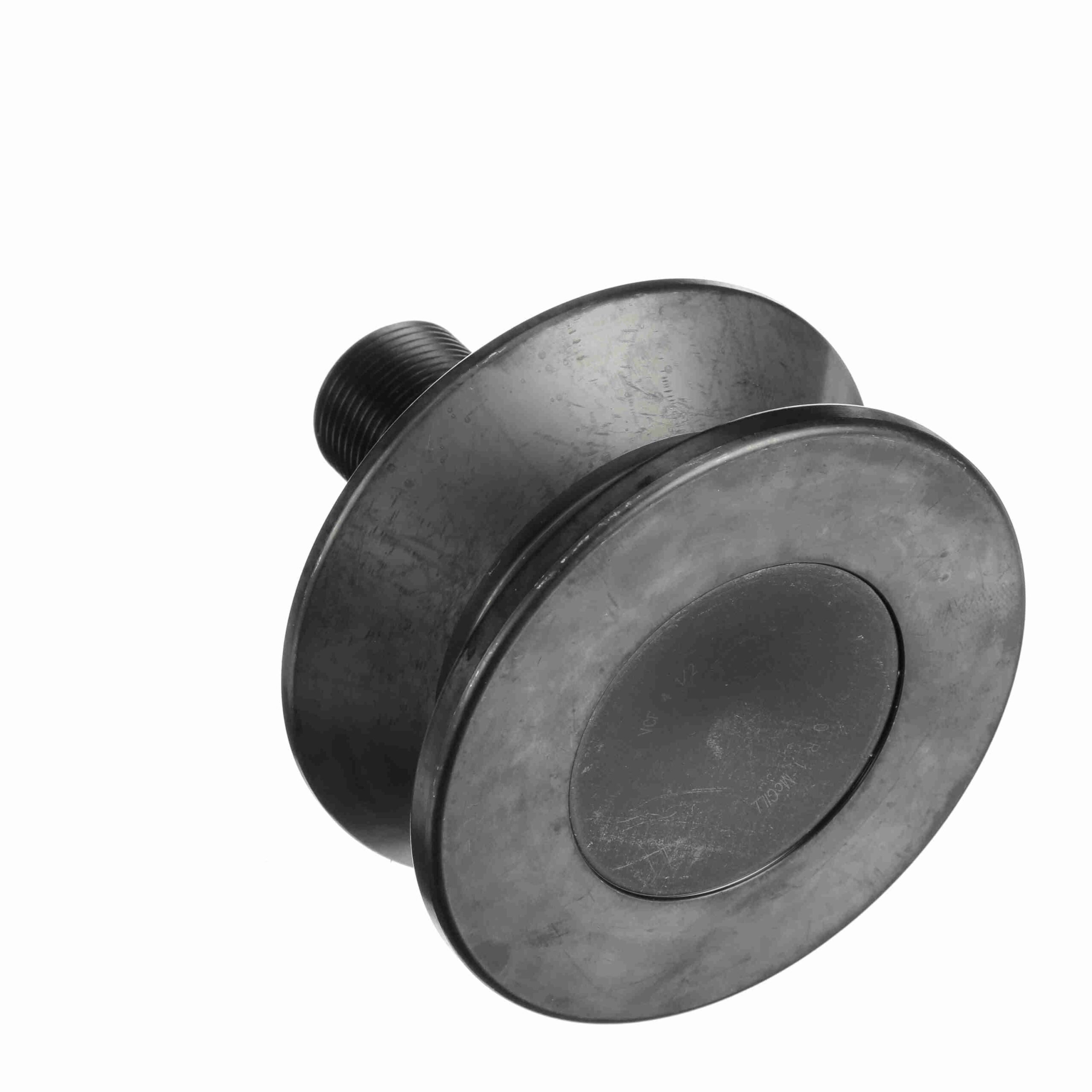

McGill TRAKROL® V Groove Track Roller – Stud Mount – Hex Hole – Sealed – VCF 4 1/2
$250.06
Availability: 22 in stock
Availability: 22 in stock
| Rolling Element: | Tapered Roller (TRAKROL) | Series: | TRAKROL® |
|---|---|---|---|
| Dynamic Radial Rating: | 14 | Sealing: | Sealed |
| Limiting Speed: | 950 | Hex/Slot: | Hex Hole |
| Adjustment: | None | O.D. Configuration: | V Groove |
| Material: | Bearing Steel, Black Oxide Finish | Dynamic Load Rating (lb): | 14, 300 lb |
| Static Load Rating: | 16 | Stud Type: | Standard Stud |
| Dynamic Load Rating - both bearings: | 14 | Tolerance Class: | P0 Equivalent |
| Roller Shape: | V Groove | Dynamic Load Rating - single bearing: | 7 |
| Platform: | TRAKROL® | Clamping Torque (in-lbf): | 1, 720 lbs |
| Ability to Relubricate: | No | UPC: | 726166041335 |
| Weight: | 6.99 LB | Packaged Length: | 5.6 Inches |
| Packaged Width: | 5.7 Inches | Packaged Height: | 4.9 Inches |
| HTC: | 8482.20.0040 | Country of Origin: | Mexico |
