- Wide race and rollers and steel cage for high dynamic load ratings
- Race-mounted felt seal with flinger and misalignment sealing
- Single-collar interlock with 120? spacing setscrew lock, diamond faceted setscrews
- Powder coat epoxy cast iron housing
USFC5000-208

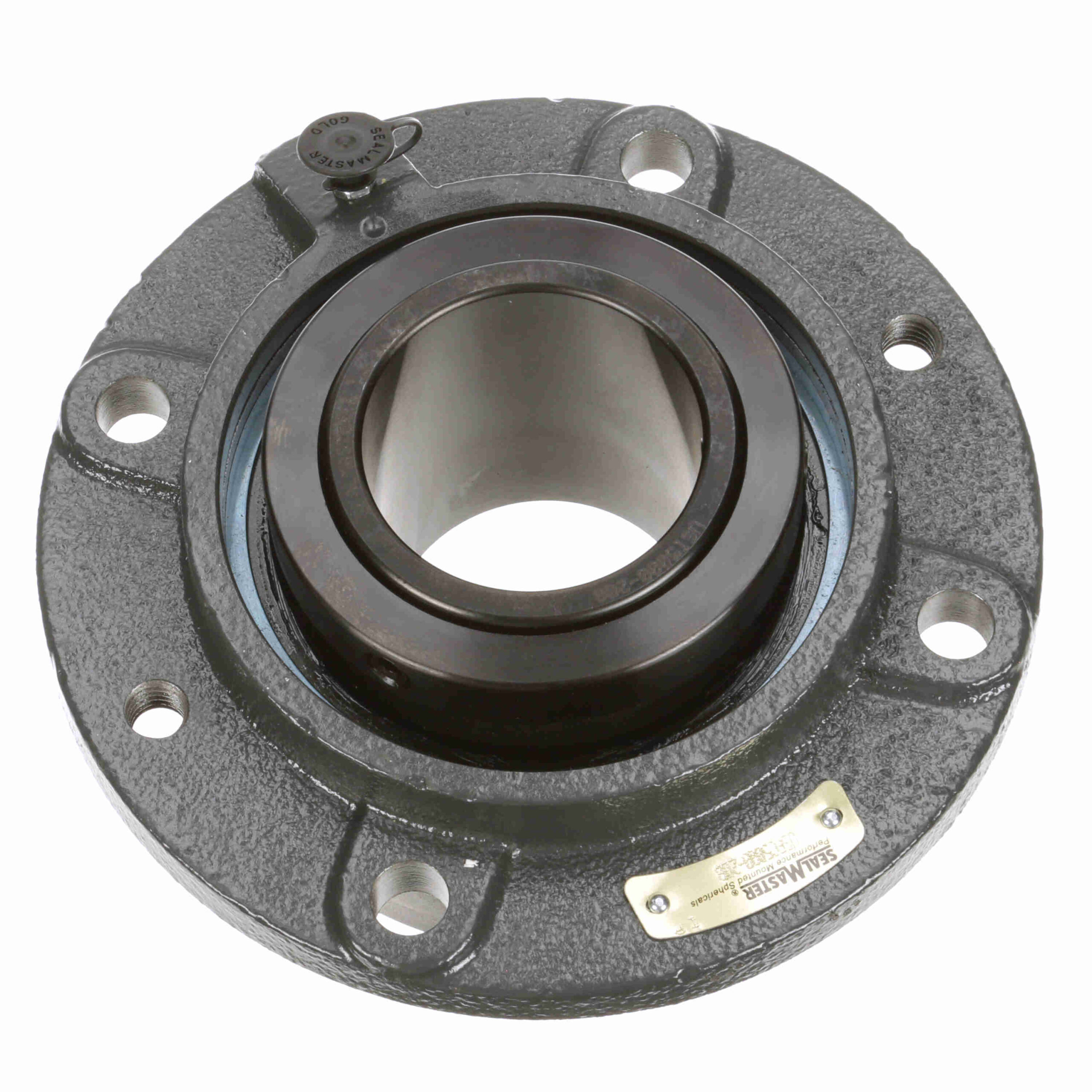

Sealmaster Mounted Cast Iron Piloted Flange Spherical Roller – 52100 Bearing Steel, Black Oxided – Collar Mount Lock – USFC5000-208
$914.60
Out of stock
Out of stock
| Expansion: | Non-Expansion Bearing (Fixed) | Seal Type: | Felt Labyrinth Seal |
|---|---|---|---|
| Rolling Element: | Spherical Roller | Insert Material: | 52100 Bearing Steel; Black Oxided |
| Measure Units: | Inch | Housing Type: | Flange; Cartridge |
| Bore Shape: | Straight | Housing Material: | Cast Iron |
| Insert No.: | USI5000-208 | Pilot Configuration: | With Pilot |
| Relubricatable: | Yes | Maximum Operating Temperature: | 220 °F |
| Misalignment: | ±2.0° Misalignment - Dynamic | Locking Type: | Single Set Collar |
| Radial Dynamic Load Capacity (lb): | 44, 691 | Housing Construction: | Solid |
| Internal Clearance: | Standard | Speed (Max): | 3250 |
| Lubrication: | Lithium Complex NLGI 2 Grease | Duty Series: | Standard |
| End Cap: | No | Bearing Insert Coating: | Black Oxide Coated |
| Outer Ring Land Profile: | Standard | Replaceable Insert: | No |
| Housing Color: | Gray | Misalignment Type: | Dynamic |
| Retainer Material: | Steel | Platform: | USRB |
| Bolt Hole Type: | Round Hole | Series: | USFC5000 |
| Lubrication Method: | Lubrication Fitting | Radial Static Load Capacity (lb): | 59, 535 |
| Grease Fitting Thread Size: | 1/4-28 | UPC: | 662461363454 |
| Weight: | 14.13 LB | Packaged Length: | 7.88 Inches |
| Packaged Width: | 7.75 Inches | Packaged Height: | 4.69 Inches |
| HTC: | 8483.20.4080 | Country of Origin: | Mexico |
