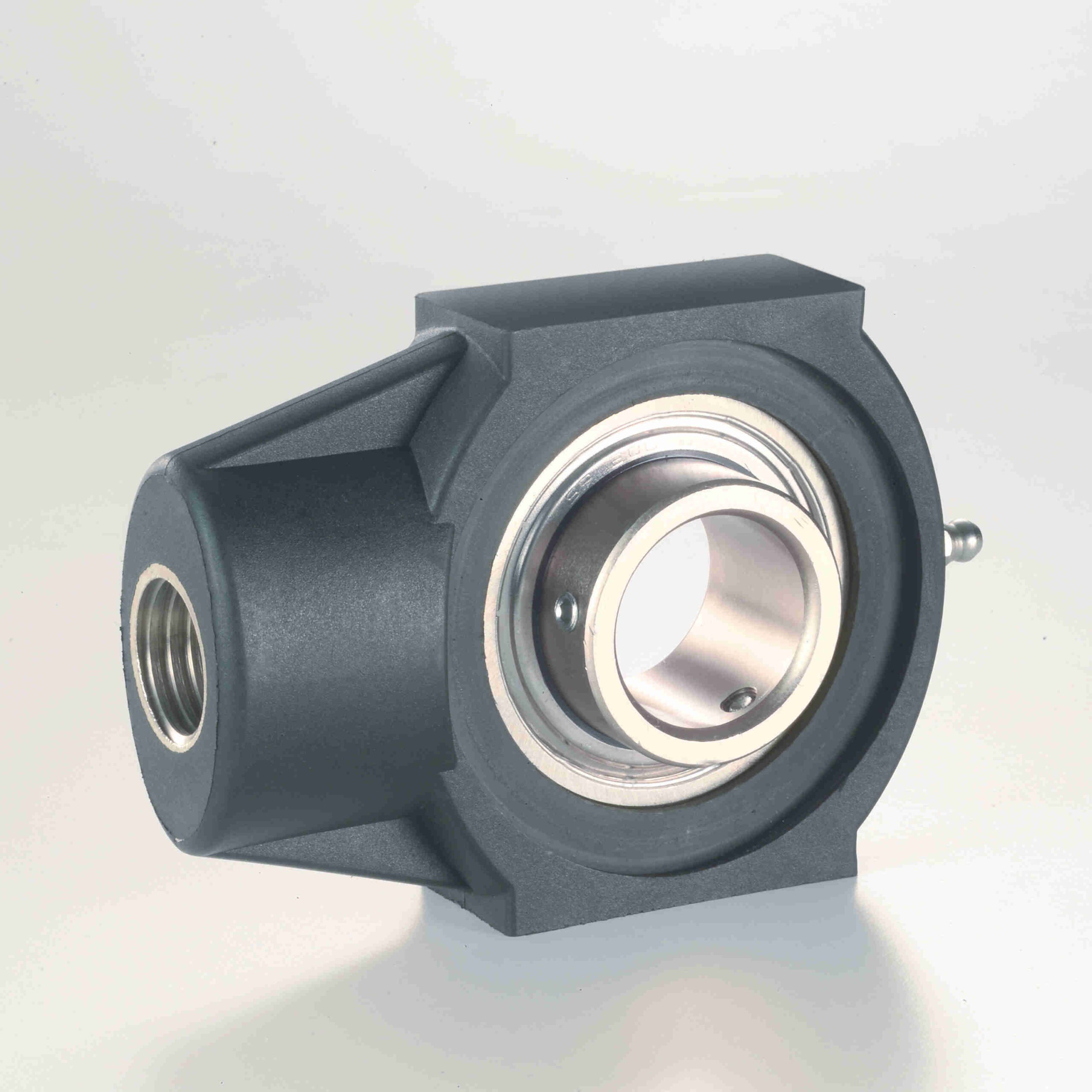

- Reinforced black polyamide housing.
- 400 series stainless steel setscrew locking bearing insert.
UCT205-16-SS
System Plast Mounted Polyamide Wide Slot Take Up Ball Bearing – 400 Series Stainless Steel – Setscrew Lock – UCT205-16-SS
Out of stock
| Internal Clearance: | Standard | Housing Type: | Take-Up Block, Wide Slot |
|---|---|---|---|
| Housing Material: | Polyamide | Retainer Type: | Ball Riding Retainer |
| Rolling Element: | Ball Bearing | Expansion: | No |
| Measure Units: | Inch | Duty Series: | Standard Duty |
| Insert No.: | SS-SB205-16 RG | Relubricatable: | Yes |
| Frame Type: | Center Pull Wide Slot | Seal Type: | Single Lip Contact Seal |
| Housing Construction: | One Piece | Speed (Max): | 3500 |
| Misalignment: | ±1.0° Misalignment - Static Only | Bore Shape: | Straight |
| Insert Material: | 400 Series Stainless Steel | Locking Type: | Setscrew |
| Maximum Operating Temperature: | 180 °F | Lubrication: | NSF H1 Food Grade Grease |
| Radial Dynamic Load Capacity (lb): | 1, 821 | Platform: | System Plast |
| Replaceable Insert: | No | Misalignment Type: | Static Only |
| Housing Color: | Black | Outer Ring Land Profile: | Standard |
| End Cap: | Yes | Bearing Insert Coating: | Uncoated |
| Retainer Material: | Stainless Steel Riveted | Radial Static Load Capacity (lb): | 1, 304 |
| UPC: | 787405279902 | Weight: | 0.77 LB |
| HTC: | 8483.20.4040 | Country of Origin: | China |
