- Reinforced white polyamide Nolu-Clean housing with antimicrobial additive.
- 400 series stainless steel setscrew locking bearing insert.
UCP206-30M-SS-NC

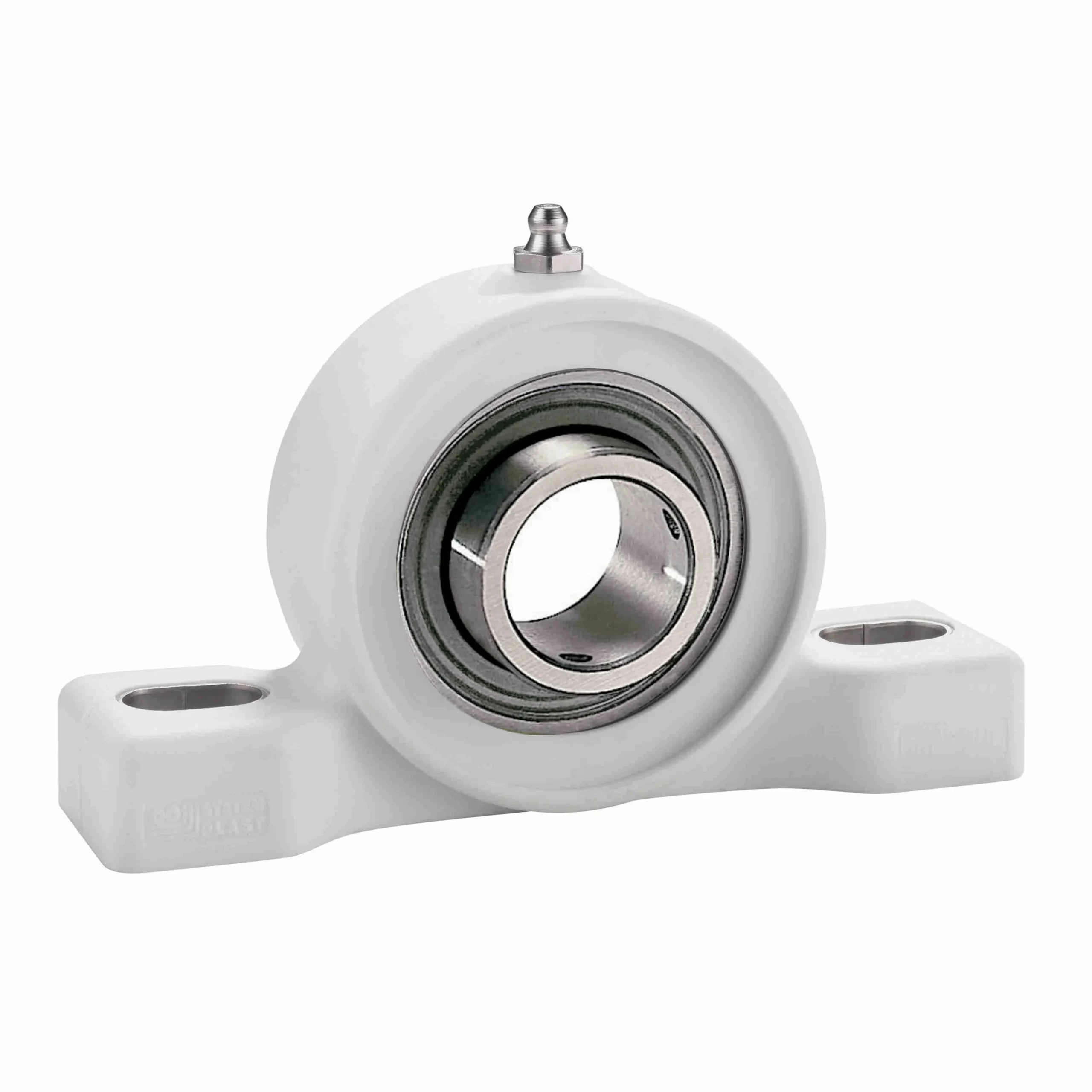

System Plast Mounted Nolu-Clean Two Bolt Pillow Block Ball Bearing – 400 Series Stainless Steel – Setscrew Lock – UCP206-30M-SS-NC
Out of stock
| Expansion: | No | Rolling Element: | Ball Bearing |
|---|---|---|---|
| Housing Material: | Nolu-Clean | Duty Series: | Standard Duty |
| Measure Units: | Metric | Insert No.: | SS-SB206-30M RG |
| Internal Clearance: | Standard | Housing Base: | Solid |
| Housing Type: | Pillow Block, Two Bolt | Retainer Type: | Ball Riding Retainer |
| Insert Material: | 400 Series Stainless Steel | Maximum Operating Temperature: | 180 °F |
| Seal Type: | Single Lip Contact Seal | Bore Shape: | Straight |
| Speed (Max): | 2900 | Radial Dynamic Load Capacity (lb): | 2, 529 |
| Housing Construction: | One Piece | Locking Type: | Setscrew |
| Lubrication: | NSF H1 Food Grade Grease | Misalignment: | ±1.0° Misalignment - Static Only |
| Relubricatable: | Yes | Platform: | System Plast |
| End Cap: | Yes | Replaceable Insert: | No |
| Housing Color: | White | Retainer Material: | Stainless Steel Riveted |
| Misalignment Type: | Static Only | Bearing Insert Coating: | Uncoated |
| Outer Ring Land Profile: | Standard | Radial Static Load Capacity (lb): | 1, 888 |
| UPC: | 726166302931 | Weight: | 1.10 LB |
| Packaged Length: | 6.14 Inches | Packaged Width: | 1.81 Inches |
| Packaged Height: | 3.43 Inches | HTC: | 8483.20.4040 |
| Country of Origin: | China |
