- Reinforced white polyamide Nolu-Clean housing with antimicrobial additive.
- 52100 chrome steel setscrew locking ball bearing insert.
- Includes white Nolu-Clean closed end cap with O-ring, and back side housing seal.
UCP206-20-NC-CEC

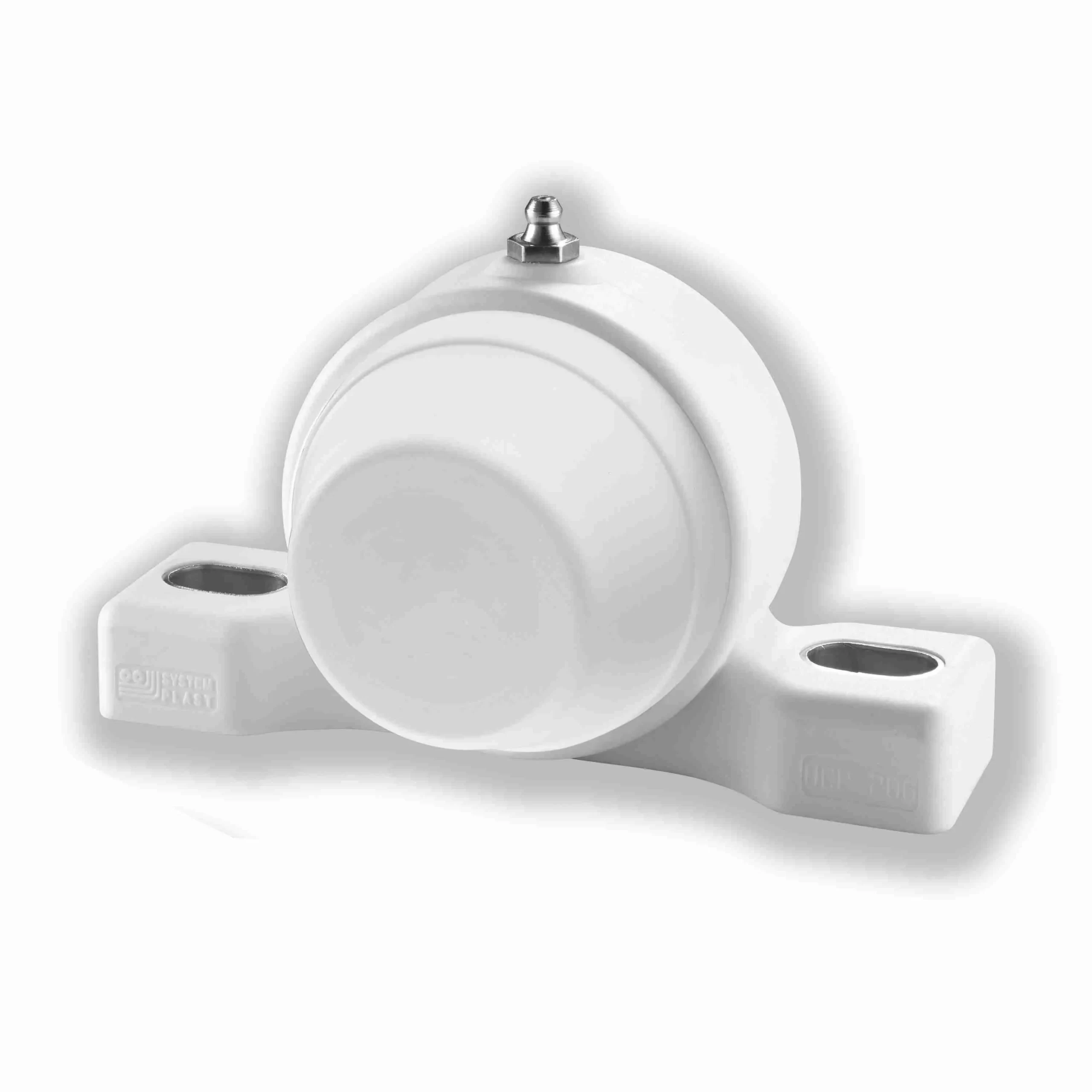

System Plast Mounted Nolu-Clean Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel – Setscrew Lock – Closed End Cap/Back Seal included – UCP206-20-NC-CEC
Out of stock
| Expansion: | No | Housing Type: | Pillow Block, Two Bolt |
|---|---|---|---|
| Measure Units: | Inch | Housing Base: | Solid |
| Rolling Element: | Ball Bearing | Insert No.: | SB206-20 RG |
| Internal Clearance: | Standard | Duty Series: | Standard Duty |
| Housing Material: | Nolu-Clean | Retainer Type: | Ball Riding Retainer |
| Speed (Max): | 2900 | Locking Type: | Setscrew |
| Relubricatable: | Yes | Seal Type: | Single Lip Contact Seal |
| Housing Construction: | One Piece | Maximum Operating Temperature: | 180 °F |
| Misalignment: | ±1.0° Misalignment - Static Only | Insert Material: | 52100 Bearing Steel |
| Bore Shape: | Straight | Lubrication: | NSF H1 Food Grade Grease |
| End Cap: | Yes | Retainer Material: | Steel Riveted |
| Replaceable Insert: | No | Backside Shield/Seal: | Back Seal Installed in Housing |
| Misalignment Type: | Static Only | Bearing Insert Coating: | Uncoated |
| Outer Ring Land Profile: | Standard | Housing Color: | White |
| UPC: | 726166312541 | Weight: | 1.15 LB |
| Packaged Length: | 3.88 Inches | Packaged Width: | 2.4 Inches |
| Packaged Height: | 3.35 Inches | HTC: | 8483.20.4040 |
| Country of Origin: | China |
