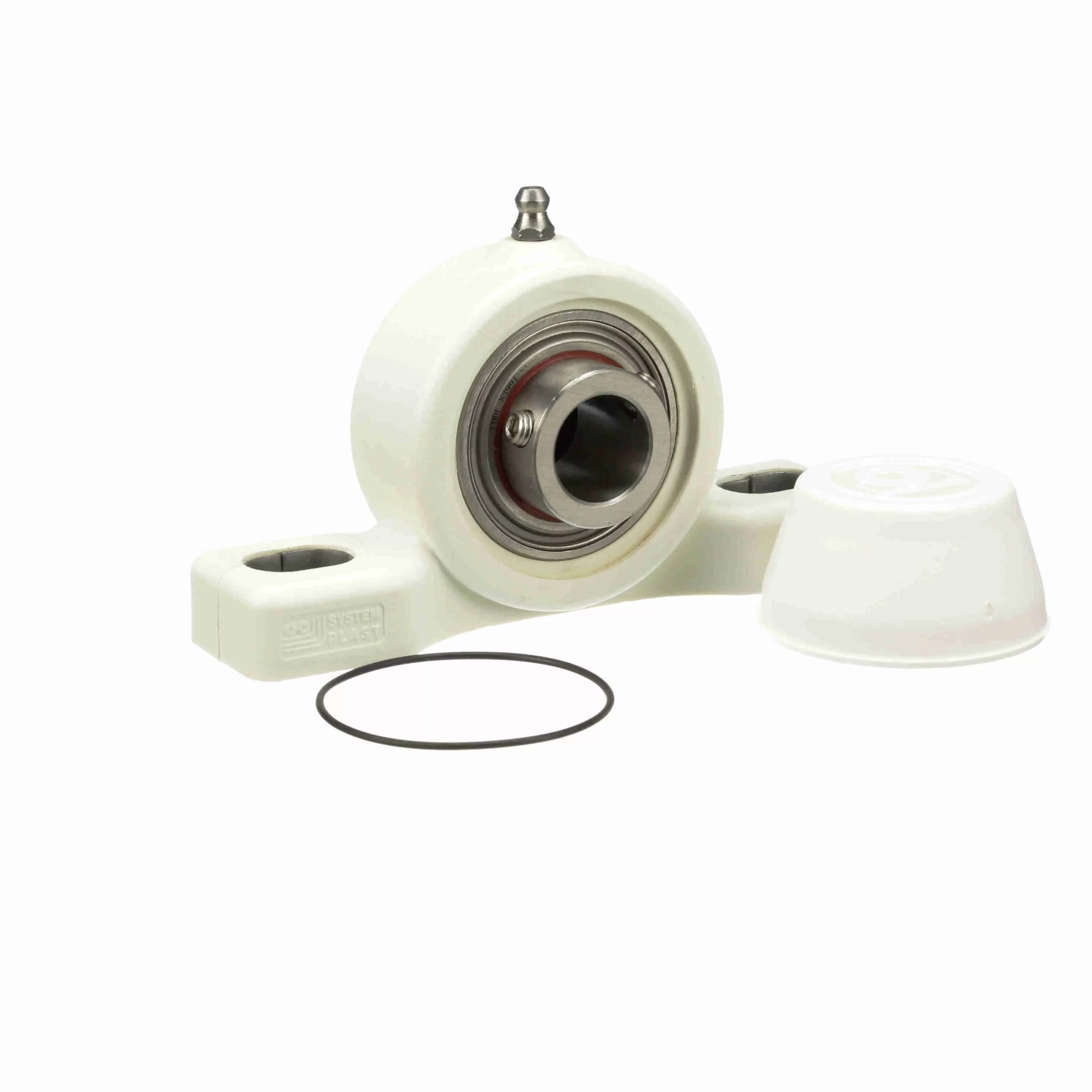

- Reinforced white polyamide Nolu-Clean housing with antimicrobial additive.
- 400 series stainless steel setscrew locking bearing insert.
- Includes white Nolu-Clean closed end cap with O-ring, and back side housing seal.
UCP205-16-SS-NC-CEC
System Plast Mounted Nolu-Clean Two Bolt Pillow Block Ball Bearing – 400 Series Stainless Steel – Setscrew Lock – Closed End Cap/Back Seal included – UCP205-16-SS-NC-CEC
Out of stock
| Housing Base: | Solid | Internal Clearance: | Standard |
|---|---|---|---|
| Retainer Type: | Ball Riding Retainer | Rolling Element: | Ball Bearing |
| Expansion: | 0 | Housing Material: | Nolu-Clean |
| Housing Type: | Pillow Block, Two Bolt | Duty Series: | Standard Duty |
| Insert No.: | SS-SB205-16 RG | Measure Units: | Inch |
| Maximum Operating Temperature: | 180 °F | Seal Type: | Single Lip Contact Seal |
| Speed (Max): | 3500 | Housing Construction: | One Piece |
| Relubricatable: | Yes | Bore Shape: | Straight |
| Misalignment: | ±1.0° Misalignment - Static Only | Radial Dynamic Load Capacity (lb): | 1, 821 |
| Locking Type: | Setscrew | Lubrication: | NSF H1 Food Grade Grease |
| Insert Material: | 400 Series Stainless Steel | End Cap: | Yes |
| Outer Ring Land Profile: | Standard | Housing Color: | White |
| Bearing Insert Coating: | Uncoated | Replaceable Insert: | No |
| Retainer Material: | Stainless Steel Riveted | Misalignment Type: | Static Only |
| Platform: | System Plast | Backside Shield/Seal: | Back Seal Installed in Housing |
| Radial Static Load Capacity (lb): | 1, 304 | UPC: | 787405580312 |
| Weight: | 0.86 LB | Packaged Length: | 5.31 Inches |
| Packaged Width: | 2.24 Inches | Packaged Height: | 2.85 Inches |
| HTC: | 8483.20.4040 | Country of Origin: | China |
