- Reinforced black polyamide housing.
- 52100 chrome steel setscrew locking ball bearing insert.
- Includes yellow closed end cap with O-ring and back side housing seal.
UCP204-12-CEC

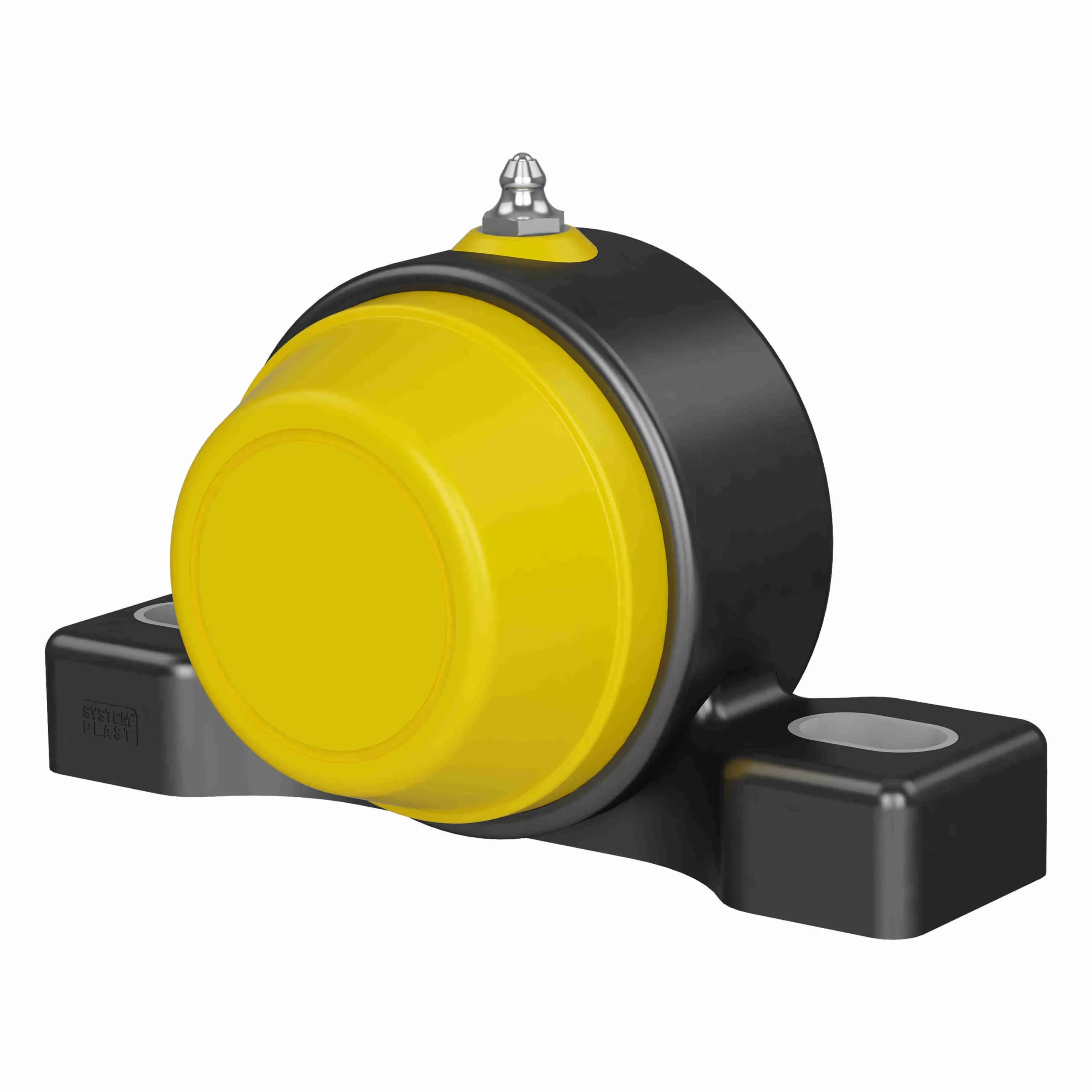

System Plast Mounted Polyamide Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel – Setscrew Lock – Closed End Cap/Back Seal included – UCP204-12-CEC
Out of stock
| Housing Base: | Solid | Retainer Type: | Ball Riding Retainer |
|---|---|---|---|
| Housing Material: | Polyamide | Housing Type: | Pillow Block, Two Bolt |
| Rolling Element: | Ball Bearing | Insert No.: | SB204-12 RG |
| Duty Series: | Standard Duty | Expansion: | No |
| Measure Units: | Inch | Internal Clearance: | Standard |
| Locking Type: | Setscrew | Speed (Max): | 4200 |
| Relubricatable: | Yes | Housing Construction: | One Piece |
| Seal Type: | Single Lip Contact Seal | Bore Shape: | Straight |
| Insert Material: | 52100 Bearing Steel | Misalignment: | ±1.0° Misalignment - Static Only |
| Maximum Operating Temperature: | 180 °F | Lubrication: | NSF H1 Food Grade Grease |
| Retainer Material: | Steel Riveted | Misalignment Type: | Static Only |
| Replaceable Insert: | No | Outer Ring Land Profile: | Standard |
| End Cap: | Yes | Housing Color: | Black |
| Bearing Insert Coating: | Uncoated | Backside Shield/Seal: | Back Seal Installed in Housing |
| UPC: | 787405281035 | Weight: | 0.68 LB |
| Packaged Length: | 5 Inches | Packaged Width: | 2.15 Inches |
| Packaged Height: | 2.64 Inches | HTC: | 8483.20.4040 |
| Country of Origin: | China |
