- Reinforced black polyamide housing.
- 400 series stainless steel setscrew locking bearing insert.
- Includes yellow open end cap with seal and O-ring, and back side housing seal.
UCFQ208-40M-SS-OEC

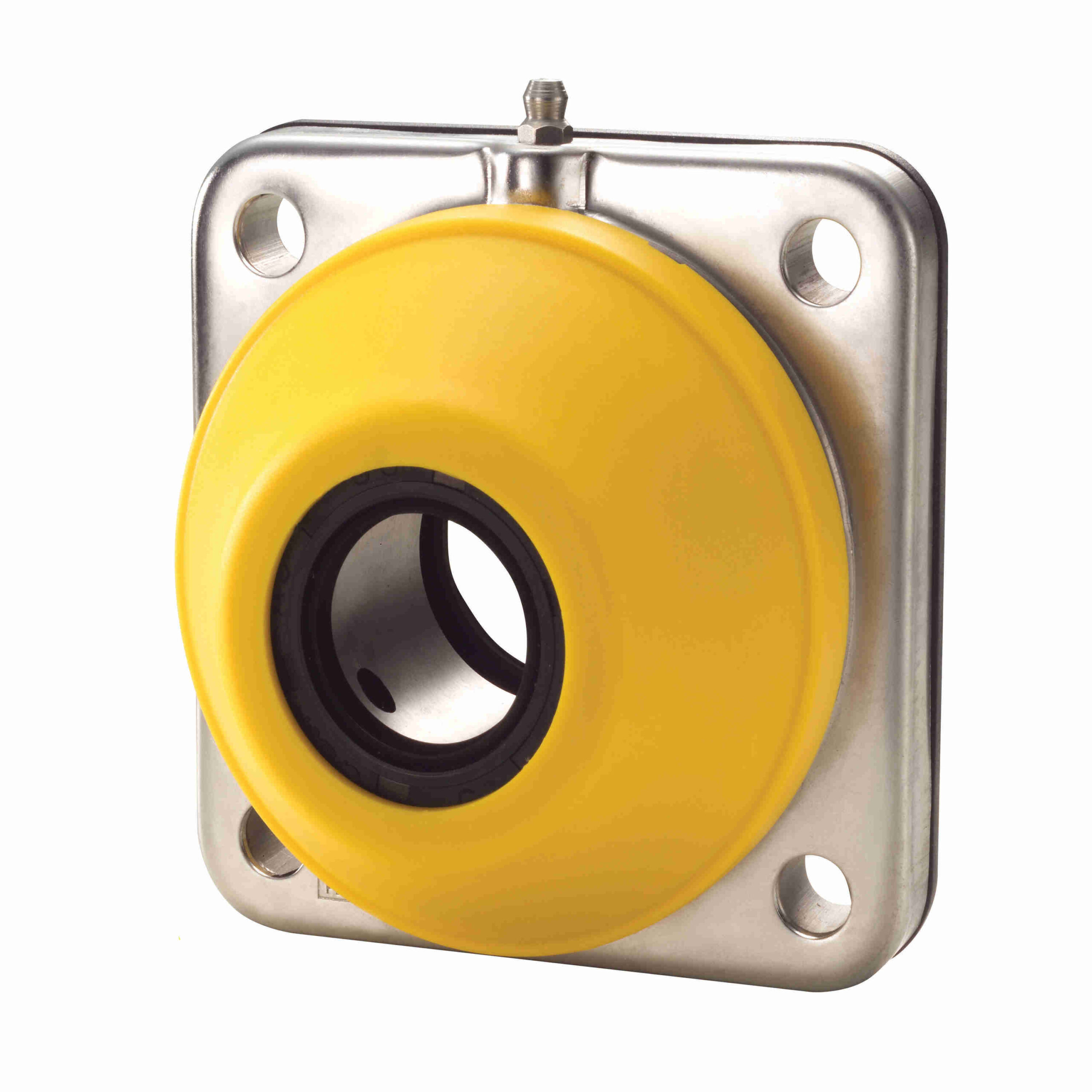

System Plast Mounted Polyamide Four Bolt Flange Ball Bearing – 400 Series Stainless Steel – Setscrew Lock – Open End Cap/Back Seal included – UCFQ208-40M-SS-OEC
Out of stock
| Rolling Element: | Ball Bearing | Duty Series: | Standard Duty |
|---|---|---|---|
| Measure Units: | Metric | Expansion: | No |
| Retainer Type: | Ball Riding Retainer | Bore Shape: | Straight |
| Speed (Max): | 2200 | Housing Base: | Solid |
| Insert No.: | SS-SB208-40M RG | Housing Type: | Flange, Four Bolt |
| Internal Clearance: | Standard | Insert Material: | 400 Series Stainless Steel |
| Housing Material: | Polyamide | Misalignment: | ±1.0° Misalignment - Static Only |
| Lubrication: | NSF H1 Food Grade Grease | Seal Type: | Single Lip Contact Seal |
| Relubricatable: | Yes | Radial Dynamic Load Capacity (lb): | 3, 777 |
| Locking Type: | Setscrew | Maximum Operating Temperature: | 180 °F |
| Housing Construction: | One Piece | End Cap: | Yes |
| Misalignment Type: | Static Only | Housing Color: | Black |
| Outer Ring Land Profile: | Standard | Replaceable Insert: | No |
| Bearing Insert Coating: | Uncoated | Platform: | System Plast |
| Retainer Material: | Stainless Steel Riveted | Radial Static Load Capacity (lb): | 3, 012 |
| UPC: | 787405584105 | Weight: | 1.81 LB |
| Packaged Length: | 5.12 Inches | Packaged Width: | 5.12 Inches |
| Packaged Height: | 2.57 Inches | HTC: | 8483.20.4040 |
| Country of Origin: | China |
