- Reinforced black polyamide housing.
- 52100 chrome steel setscrew locking ball bearing insert.
UCFQ208-24

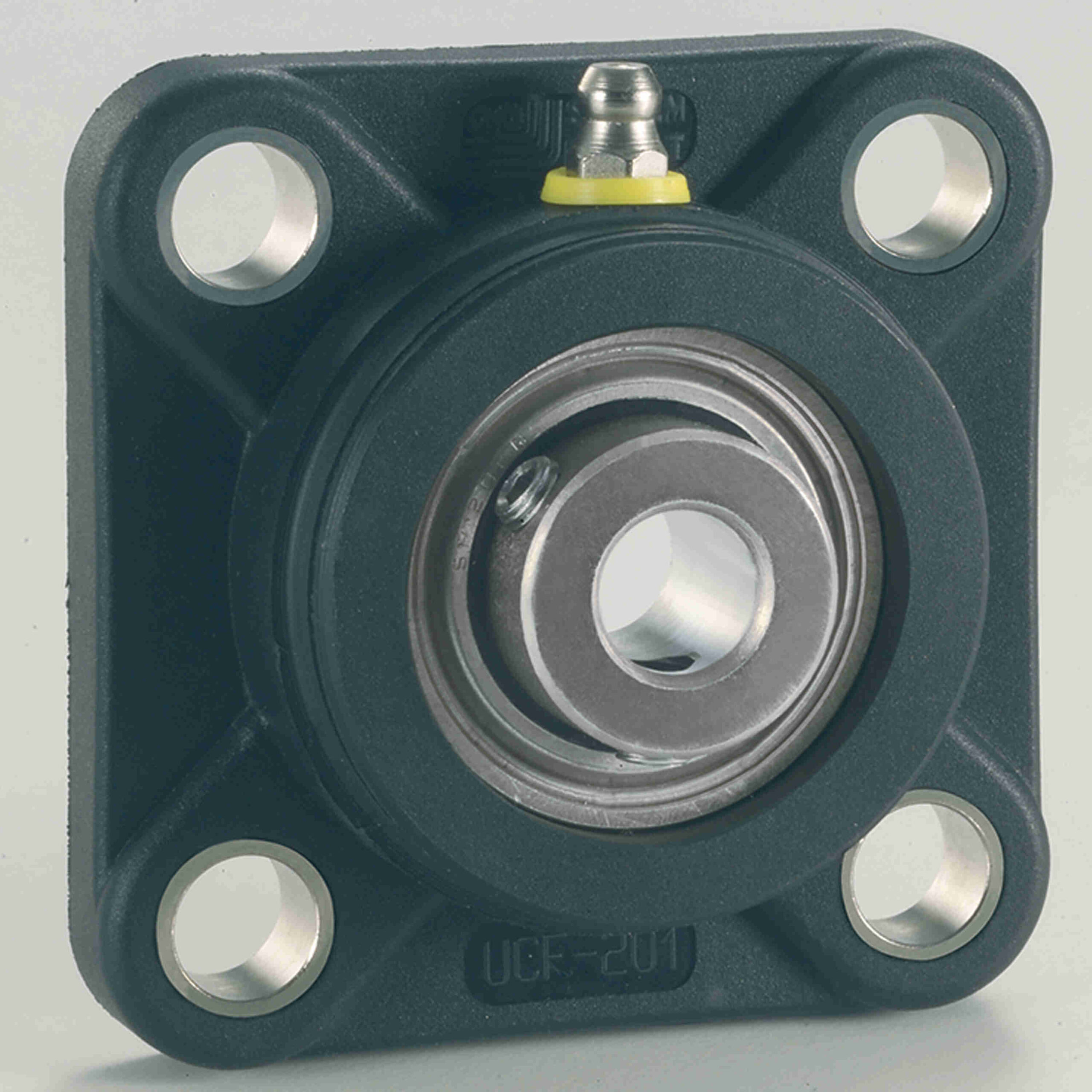

System Plast Mounted Polyamide Four Bolt Flange Ball Bearing – 52100 Bearing Steel – Setscrew Lock – UCFQ208-24
Out of stock
| Housing Base: | Solid | Bore Shape: | Straight |
|---|---|---|---|
| Measure Units: | Inch | Rolling Element: | Ball Bearing |
| Housing Type: | Flange, Four Bolt | Internal Clearance: | Standard |
| Insert No.: | SB208-24 RG | Insert Material: | 52100 Bearing Steel |
| Expansion: | No | Duty Series: | Standard Duty |
| Speed (Max): | 2200 | Retainer Type: | Ball Riding Retainer |
| Housing Material: | Polyamide | Misalignment: | ±1.0° Misalignment - Static Only |
| Seal Type: | Single Lip Contact Seal | Relubricatable: | Yes |
| Locking Type: | Setscrew | Maximum Operating Temperature: | 180 °F |
| Radial Dynamic Load Capacity (lb): | 5, 036 | Lubrication: | NSF H1 Food Grade Grease |
| Housing Construction: | One Piece | Misalignment Type: | Static Only |
| End Cap: | Yes | Housing Color: | Black |
| Outer Ring Land Profile: | Standard | Replaceable Insert: | No |
| Retainer Material: | Steel Riveted | Bearing Insert Coating: | Uncoated |
| Radial Static Load Capacity (lb): | 4, 024 | UPC: | 787405584648 |
| Weight: | 1.76 LB | Packaged Length: | 5.12 Inches |
| Packaged Width: | 5.12 Inches | Packaged Height: | 1.89 Inches |
| HTC: | 8483.20.4040 | Country of Origin: | China |
