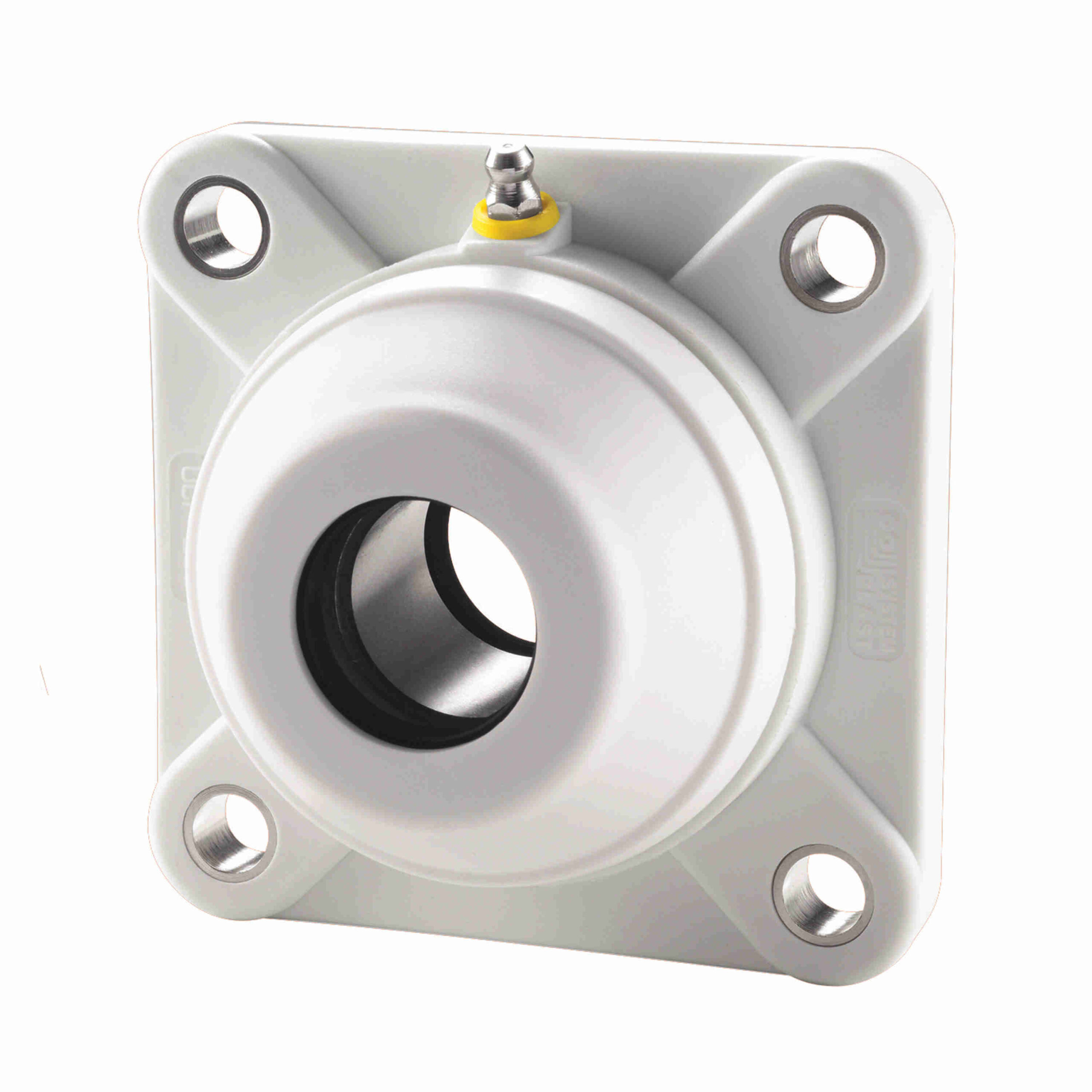

UCFQ208-24-SS-NC-OEC

Reinforced white polyamide Nolu-Clean housing with antimicrobial additive.
400 series stainless steel setscrew locking bearing insert.
Includes white Nolu-Clean open end cap with seal and O-ring, and back side housing seal.

Insert No.:	SS-SB208-24 RG	Housing Base:	Solid
Internal Clearance:	Standard	Housing Type:	Flange, Four Bolt
Retainer Type:	Ball Riding Retainer	Speed (Max):	2200
Measure Units:	Inch	Duty Series:	Standard Duty
Expansion:	No	Housing Material:	Nolu-Clean
Bore Shape:	Straight	Rolling Element:	Ball Bearing
Insert Material:	400 Series Stainless Steel	Seal Type:	Single Lip Contact Seal
Lubrication:	NSF H1 Food Grade Grease	Housing Construction:	One Piece
Relubricatable:	Yes	Maximum Operating Temperature:	180 °F
Misalignment:	±1.0° Misalignment - Static Only	Radial Dynamic Load Capacity (lb):	3, 777
Locking Type:	Setscrew	Backside Shield/Seal:	Back Seal Installed in Housing
Platform:	System Plast	Replaceable Insert:	No
Outer Ring Land Profile:	Standard	Housing Color:	White
Bearing Insert Coating:	Uncoated	End Cap:	Yes
Retainer Material:	Stainless Steel Riveted	Misalignment Type:	Static Only
Radial Static Load Capacity (lb):	3, 012	UPC:	787405579866
Weight:	1.81 LB	Packaged Length:	5.12 Inches
Packaged Width:	5.12 Inches	Packaged Height:	2.36 Inches
HTC:	8483.20.4040	Country of Origin:	China
