- Reinforced white polyamide Nolu-Clean housing with antimicrobial additive.
- 400 series stainless steel setscrew locking bearing insert.
UCFQ207-35M-SS-NC

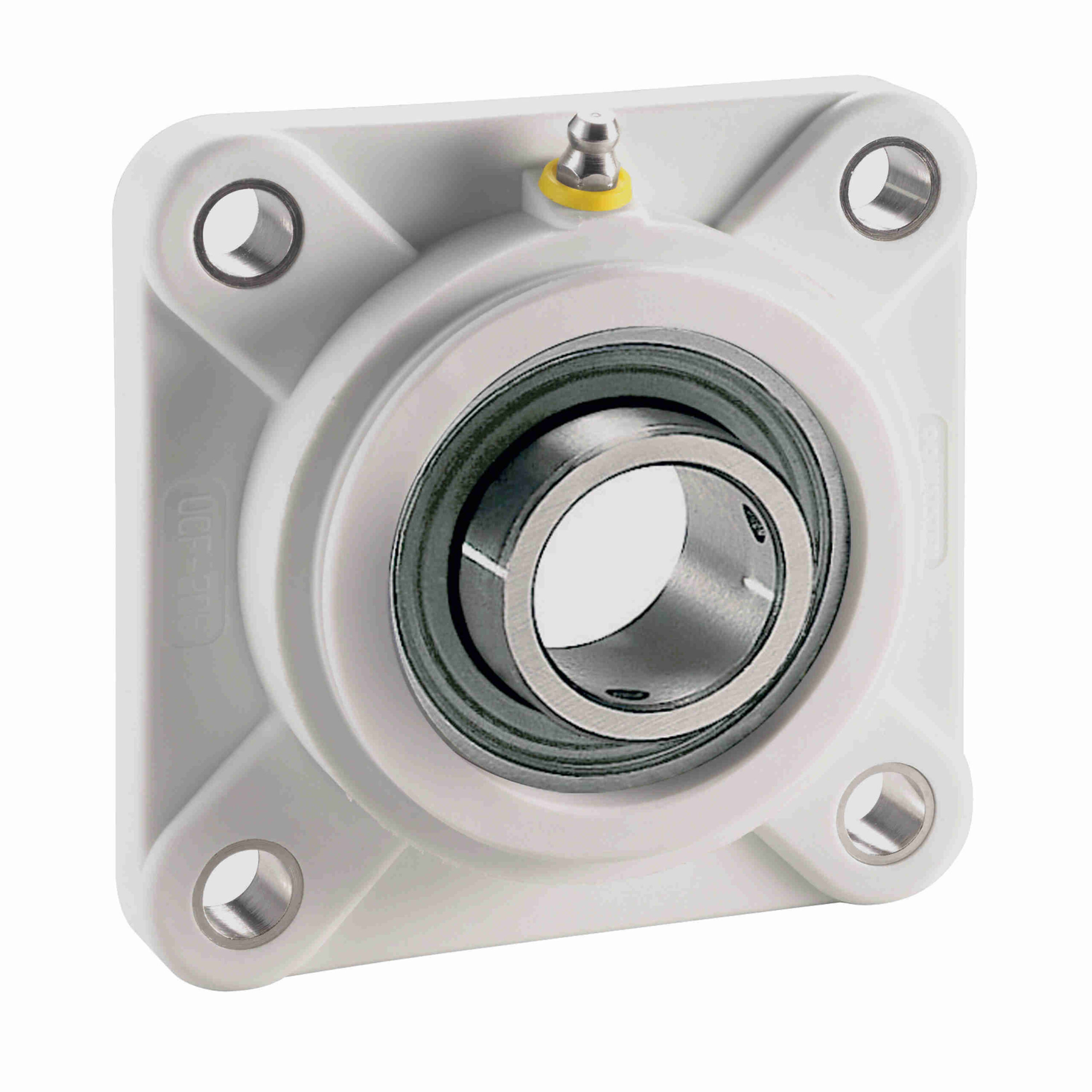

System Plast Mounted Nolu-Clean Four Bolt Flange Ball Bearing – 400 Series Stainless Steel – Setscrew Lock – UCFQ207-35M-SS-NC
Out of stock
| Expansion: | No | Internal Clearance: | Standard |
|---|---|---|---|
| Speed (Max): | 2600 | Housing Material: | Nolu-Clean |
| Duty Series: | Standard Duty | Rolling Element: | Ball Bearing |
| Retainer Type: | Ball Riding Retainer | Bore Shape: | Straight |
| Housing Base: | Solid | Insert No.: | SS-SB207-35M RG |
| Insert Material: | 400 Series Stainless Steel | Measure Units: | Metric |
| Housing Type: | Flange, Four Bolt | Relubricatable: | Yes |
| Seal Type: | Single Lip Contact Seal | Radial Dynamic Load Capacity (lb): | 3, 305 |
| Misalignment: | ±1.0° Misalignment - Static Only | Maximum Operating Temperature: | 180 °F |
| Housing Construction: | One Piece | Locking Type: | Setscrew |
| Lubrication: | NSF H1 Food Grade Grease | Retainer Material: | Stainless Steel Riveted |
| Misalignment Type: | Static Only | Housing Color: | White |
| Replaceable Insert: | No | Outer Ring Land Profile: | Standard |
| Bearing Insert Coating: | Uncoated | Platform: | System Plast |
| End Cap: | Yes | Radial Static Load Capacity (lb): | 2, 563 |
| UPC: | 787405580855 | Weight: | 1.54 LB |
| Packaged Length: | 4.33 Inches | Packaged Width: | 4.33 Inches |
| Packaged Height: | 1.79 Inches | HTC: | 8483.20.4040 |
| Country of Origin: | China |
