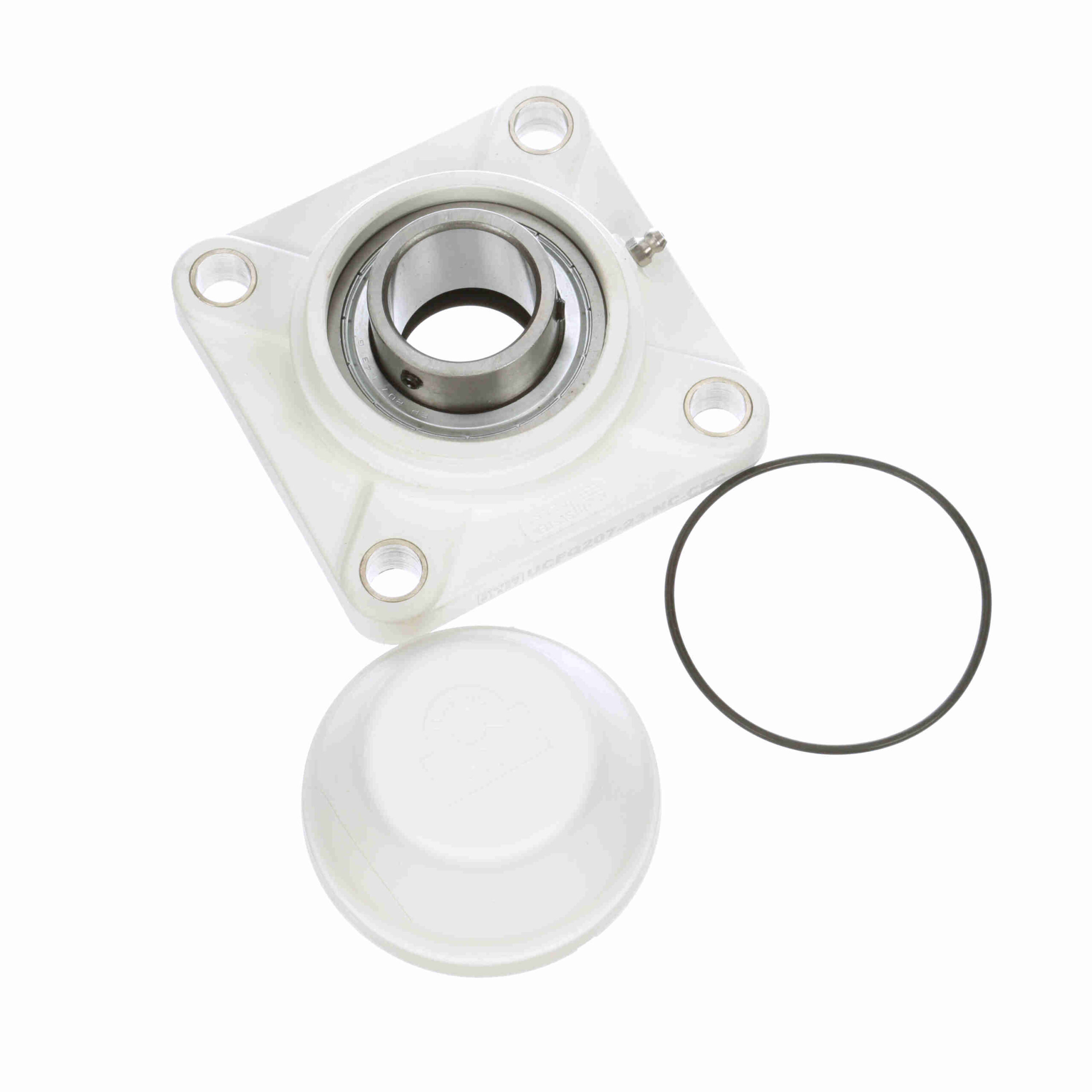

- Reinforced white polyamide Nolu-Clean housing with antimicrobial additive.
- 52100 chrome steel setscrew locking ball bearing insert.
- Includes white Nolu-Clean closed end cap with O-ring, and back side housing seal.
UCFQ207-23-NC-CEC
System Plast Mounted Nolu-Clean Four Bolt Flange Ball Bearing – 52100 Bearing Steel – Setscrew Lock – Closed End Cap/Back Seal included – UCFQ207-23-NC-CEC
Out of stock
| Housing Material: | Nolu-Clean | Housing Type: | Flange, Four Bolt |
|---|---|---|---|
| Measure Units: | Inch | Insert No.: | SB207-23 RG |
| Housing Base: | Solid | Internal Clearance: | Standard |
| Retainer Type: | Ball Riding Retainer | Speed (Max): | 2600 |
| Rolling Element: | Ball Bearing | Expansion: | No |
| Duty Series: | Standard Duty | Bore Shape: | Straight |
| Insert Material: | 52100 Bearing Steel | Locking Type: | Setscrew |
| Seal Type: | Single Lip Contact Seal | Maximum Operating Temperature: | 180 °F |
| Relubricatable: | Yes | Lubrication: | NSF H1 Food Grade Grease |
| Radial Dynamic Load Capacity (lb): | 4, 429 | Misalignment: | ±1.0° Misalignment - Static Only |
| Housing Construction: | One Piece | Replaceable Insert: | No |
| Backside Shield/Seal: | Back Seal Installed in Housing | End Cap: | Yes |
| Misalignment Type: | Static Only | Bearing Insert Coating: | Uncoated |
| Housing Color: | White | Outer Ring Land Profile: | Standard |
| Retainer Material: | Steel Riveted | Radial Static Load Capacity (lb): | 3, 440 |
| UPC: | 726166311209 | Weight: | 2.09 LB |
| Packaged Length: | 10.3 Inches | Packaged Width: | 5.6 Inches |
| Packaged Height: | 2.7 Inches | HTC: | 8483.20.4040 |
| Country of Origin: | China |
