- Reinforced black polyamide housing.
- 52100 chrome steel setscrew locking ball bearing insert.
UCFQ205-16

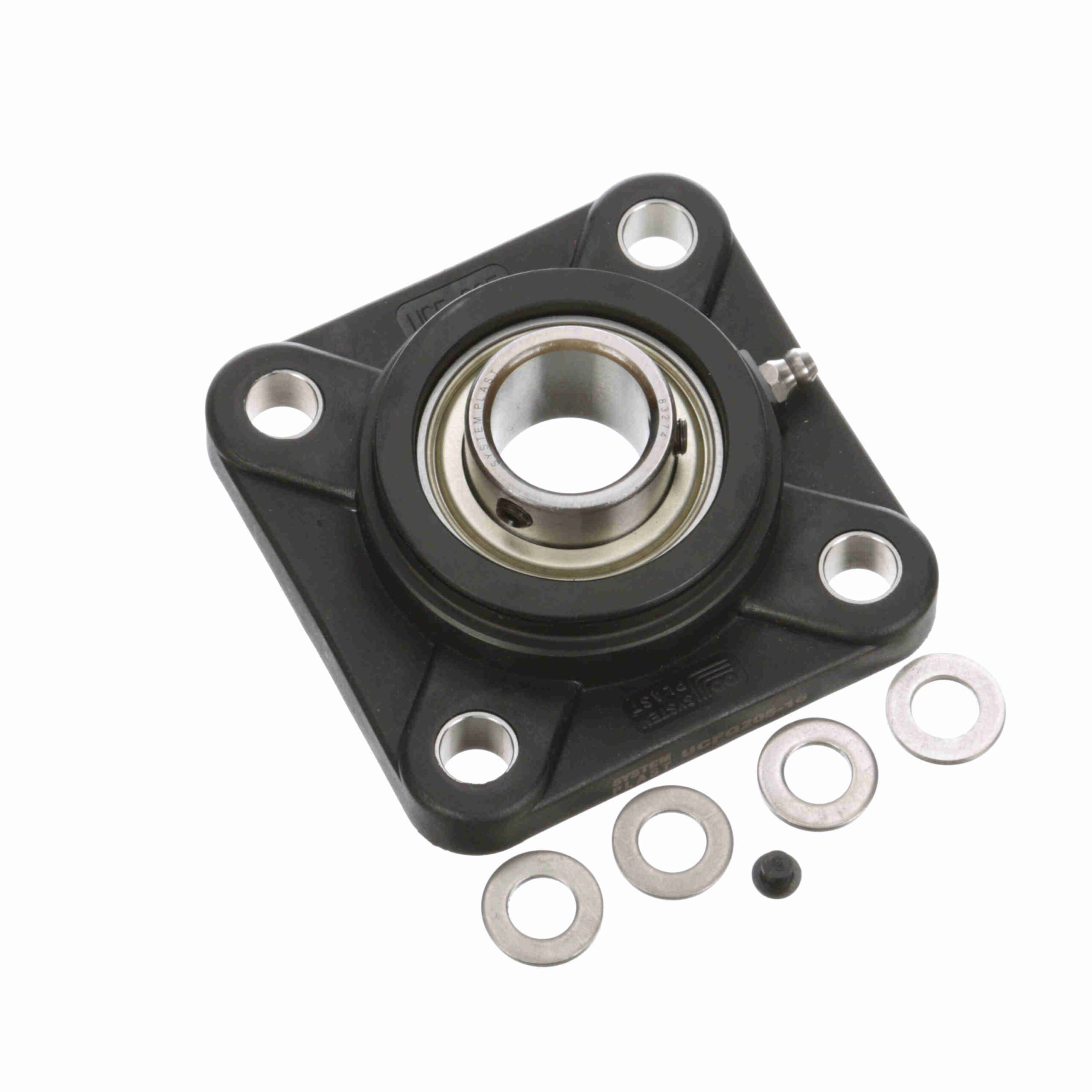

System Plast Mounted Polyamide Four Bolt Flange Ball Bearing – 52100 Bearing Steel – Setscrew Lock – UCFQ205-16
Out of stock
| Rolling Element: | Ball Bearing | Duty Series: | Standard Duty |
|---|---|---|---|
| Bore Shape: | Straight | Housing Base: | Solid |
| Housing Material: | Polyamide | Housing Type: | Flange, Four Bolt |
| Expansion: | No | Retainer Type: | Ball Riding Retainer |
| Insert Material: | 52100 Bearing Steel | Measure Units: | Inch |
| Internal Clearance: | Standard | Speed (Max): | 3500 |
| Insert No.: | SB205-16 RG | Seal Type: | Single Lip Contact Seal |
| Housing Construction: | One Piece | Relubricatable: | Yes |
| Locking Type: | Setscrew | Maximum Operating Temperature: | 180 °F |
| Radial Dynamic Load Capacity (lb): | 2, 428 | Misalignment: | ±1.0° Misalignment - Static Only |
| Lubrication: | NSF H1 Food Grade Grease | Bearing Insert Coating: | Uncoated |
| Misalignment Type: | Static Only | End Cap: | Yes |
| Replaceable Insert: | No | Retainer Material: | Steel Riveted |
| Housing Color: | Black | Outer Ring Land Profile: | Standard |
| Radial Static Load Capacity (lb): | 1, 754 | UPC: | 787405584617 |
| Weight: | 0.70 LB | Packaged Length: | 3.74 Inches |
| Packaged Width: | 3.74 Inches | Packaged Height: | 1.45 Inches |
| HTC: | 8483.20.4040 | Country of Origin: | China |
