- Reinforced black polyamide housing.
- 400 series stainless steel setscrew locking bearing insert.
UCFQ205-16-SS

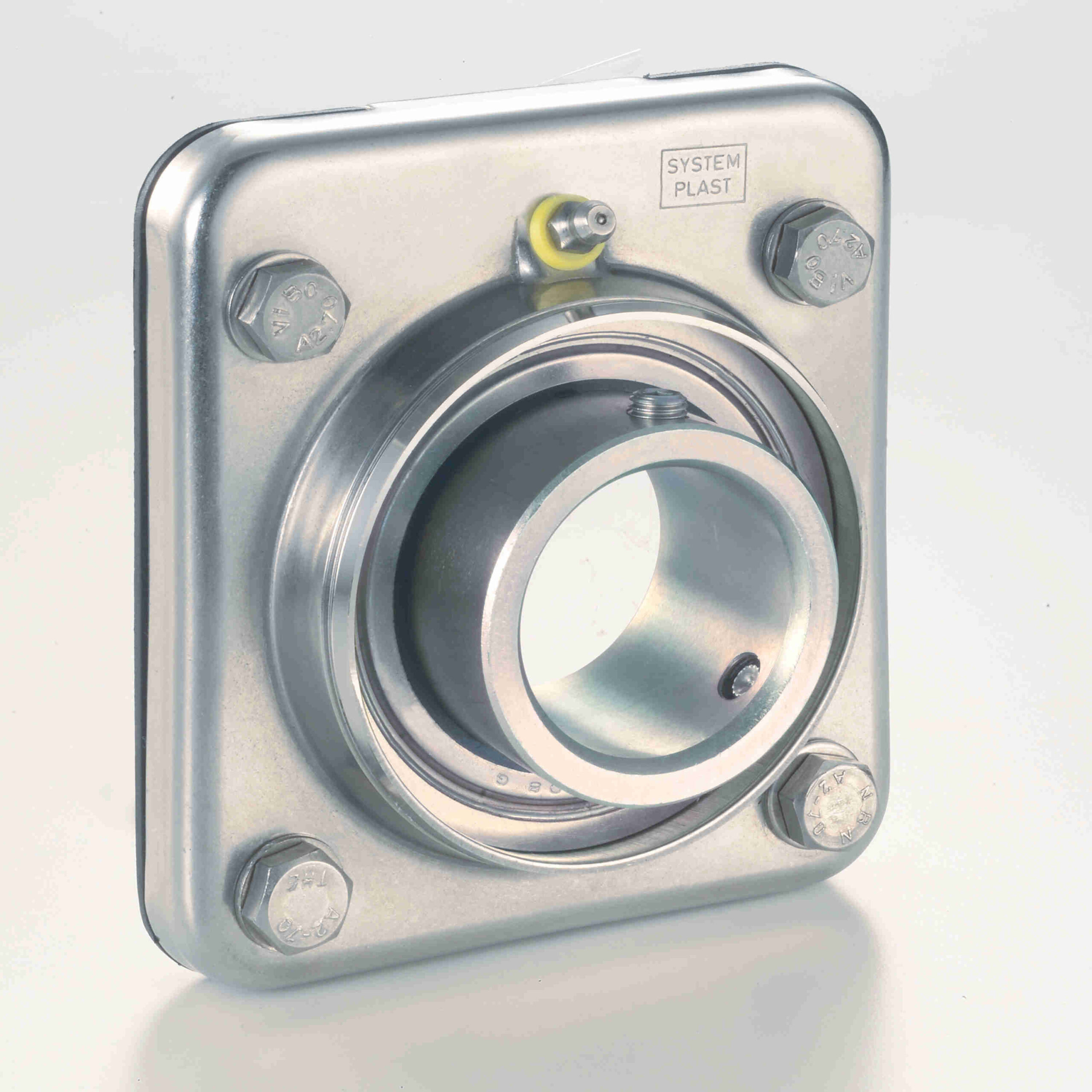

System Plast Mounted Polyamide Four Bolt Flange Ball Bearing – 400 Series Stainless Steel – Setscrew Lock – UCFQ205-16-SS
Out of stock
| Bore Shape: | Straight | Retainer Type: | Ball Riding Retainer |
|---|---|---|---|
| Speed (Max): | 3500 | Housing Base: | Solid |
| Internal Clearance: | Standard | Expansion: | No |
| Rolling Element: | Ball Bearing | Housing Material: | Polyamide |
| Duty Series: | Standard Duty | Measure Units: | Inch |
| Insert No.: | SS-SB205-16 RG | Housing Type: | Flange, Four Bolt |
| Insert Material: | 400 Series Stainless Steel | Seal Type: | Single Lip Contact Seal |
| Maximum Operating Temperature: | 180 °F | Housing Construction: | One Piece |
| Locking Type: | Setscrew | Misalignment: | ±1.0° Misalignment - Static Only |
| Relubricatable: | Yes | Lubrication: | NSF H1 Food Grade Grease |
| Radial Dynamic Load Capacity (lb): | 1, 821 | Platform: | System Plast |
| Outer Ring Land Profile: | Standard | End Cap: | Yes |
| Retainer Material: | Stainless Steel Riveted | Misalignment Type: | Static Only |
| Replaceable Insert: | No | Housing Color: | Black |
| Bearing Insert Coating: | Uncoated | Radial Static Load Capacity (lb): | 1, 304 |
| UPC: | 787405584723 | Weight: | 0.70 LB |
| Packaged Length: | 3.74 Inches | Packaged Width: | 3.74 Inches |
| Packaged Height: | 1.45 Inches | HTC: | 8483.20.4040 |
| Country of Origin: | China |
