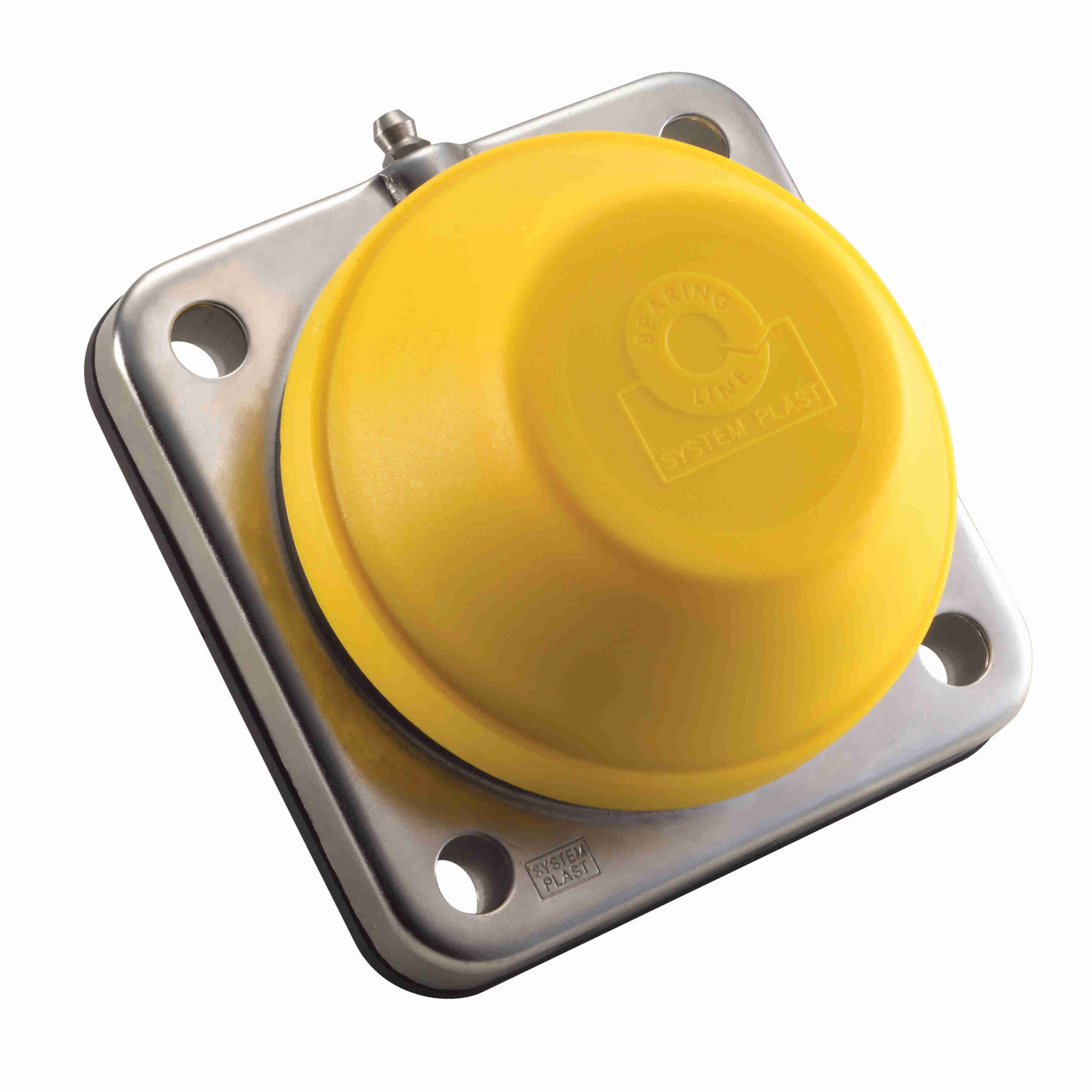

- Reinforced black polyamide housing.
- 400 series stainless steel setscrew locking bearing insert.
- Includes yellow closed end cap with O-ring and back side housing seal.
UCFQ205-16-SS-CEC
System Plast Mounted Polyamide Four Bolt Flange Ball Bearing – 400 Series Stainless Steel – Setscrew Lock – Closed End Cap/Back Seal included – UCFQ205-16-SS-CEC
Out of stock
| Retainer Type: | Ball Riding Retainer | Speed (Max): | 3500 |
|---|---|---|---|
| Insert No.: | SS-SB205-16 RG | Bore Shape: | Straight |
| Internal Clearance: | Standard | Insert Material: | 400 Series Stainless Steel |
| Housing Base: | Solid | Measure Units: | Inch |
| Housing Type: | Flange, Four Bolt | Duty Series: | Standard Duty |
| Rolling Element: | Ball Bearing | Expansion: | No |
| Housing Material: | Polyamide | Maximum Operating Temperature: | 180 °F |
| Lubrication: | NSF H1 Food Grade Grease | Relubricatable: | Yes |
| Misalignment: | ±1.0° Misalignment - Static Only | Housing Construction: | One Piece |
| Seal Type: | Single Lip Contact Seal | Radial Dynamic Load Capacity (lb): | 1, 821 |
| Locking Type: | Setscrew | Platform: | System Plast |
| Backside Shield/Seal: | Back Seal Installed in Housing | End Cap: | Yes |
| Housing Color: | Black | Misalignment Type: | Static Only |
| Replaceable Insert: | No | Retainer Material: | Stainless Steel Riveted |
| Outer Ring Land Profile: | Standard | Bearing Insert Coating: | Uncoated |
| Radial Static Load Capacity (lb): | 1, 304 | UPC: | 787405581234 |
| Weight: | 0.82 LB | Packaged Length: | 4.8 Inches |
| Packaged Width: | 5.1 Inches | Packaged Height: | 2.8 Inches |
| HTC: | 8483.20.4040 | Country of Origin: | China |
