- Reinforced black polyamide housing.
- 52100 chrome steel setscrew locking ball bearing insert.
- Includes yellow open end cap with seal and O-ring, and back side housing seal.
UCFQ204-20M-OEC

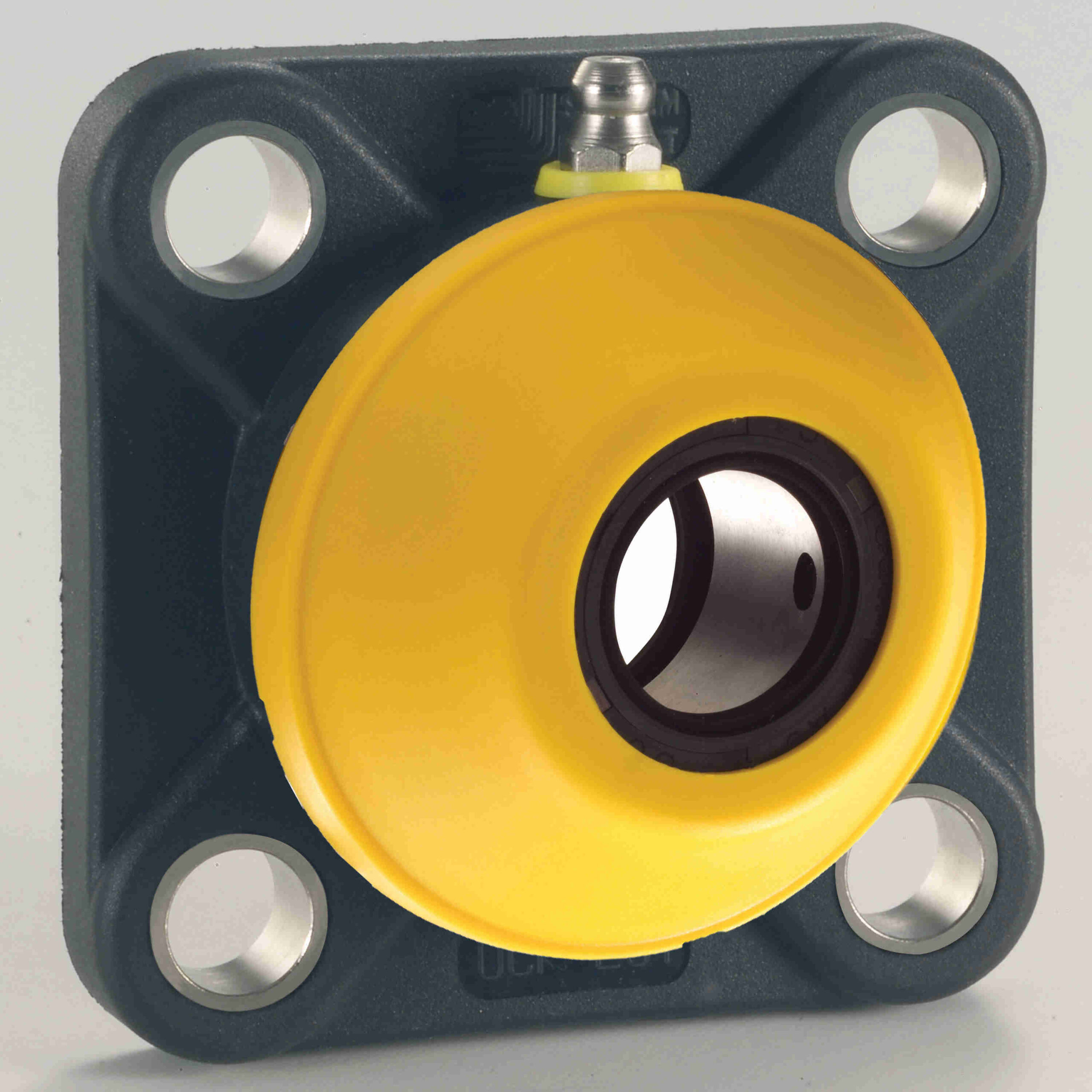

System Plast Mounted Polyamide Four Bolt Flange Ball Bearing – 52100 Bearing Steel – Setscrew Lock – Open End Cap/Back Seal included – UCFQ204-20M-OEC
Out of stock
| Duty Series: | Standard Duty | Insert Material: | 52100 Bearing Steel |
|---|---|---|---|
| Internal Clearance: | Standard | Speed (Max): | 4200 |
| Rolling Element: | Ball Bearing | Housing Base: | Solid |
| Insert No.: | SB204-20M RG | Bore Shape: | Straight |
| Housing Material: | Polyamide | Measure Units: | Metric |
| Retainer Type: | Ball Riding Retainer | Expansion: | No |
| Housing Type: | Flange, Four Bolt | Relubricatable: | Yes |
| Housing Construction: | One Piece | Radial Dynamic Load Capacity (lb): | 2, 214 |
| Lubrication: | NSF H1 Food Grade Grease | Locking Type: | Setscrew |
| Maximum Operating Temperature: | 180 °F | Misalignment: | ±1.0° Misalignment - Static Only |
| Seal Type: | Single Lip Contact Seal | Housing Color: | Black |
| End Cap: | Yes | Bearing Insert Coating: | Uncoated |
| Replaceable Insert: | No | Outer Ring Land Profile: | Standard |
| Retainer Material: | Steel Riveted | Misalignment Type: | Static Only |
| Radial Static Load Capacity (lb): | 1, 479 | UPC: | 787405583481 |
| Weight: | 0.51 LB | Packaged Length: | 3.39 Inches |
| Packaged Width: | 3.39 Inches | Packaged Height: | 1.95 Inches |
| HTC: | 8483.20.4040 | Country of Origin: | China |
