- Reinforced black polyamide housing.
- 52100 chrome steel setscrew locking ball bearing insert.
- Includes yellow closed end cap with O-ring and back side housing seal.
UCFH207-23-CEC

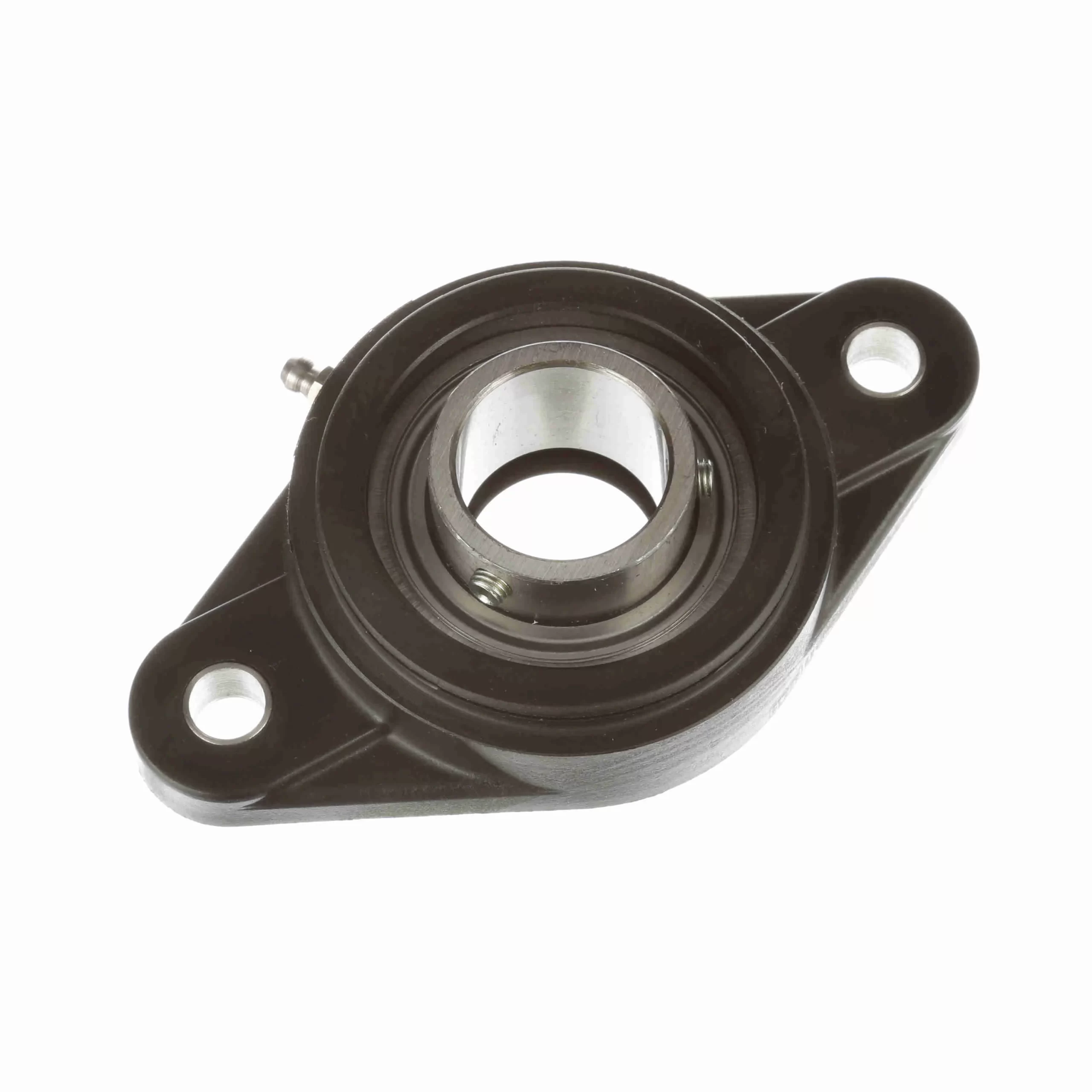

System Plast Mounted Polyamide Two Bolt Flange Ball Bearing – 52100 Bearing Steel – Setscrew Lock – Closed End Cap/Back Seal included – UCFH207-23-CEC
Out of stock
| Housing Material: | Polyamide | Housing Base: | Solid |
|---|---|---|---|
| Rolling Element: | Ball Bearing | Duty Series: | Standard Duty |
| Expansion: | No | Insert No.: | SB207-23 RG |
| Measure Units: | Inch | Internal Clearance: | Standard |
| Retainer Type: | Ball Riding Retainer | Seal Type: | Single Lip Contact Seal |
| Insert Material: | 52100 Bearing Steel | Housing Type: | Flange, Two Bolt |
| Bore Shape: | Straight | Locking Type: | Setscrew |
| Housing Construction: | One Piece | Misalignment: | ±1.0° Misalignment - Static Only |
| Relubricatable: | Yes | Lubrication: | NSF H1 Food Grade Grease |
| Speed (Max): | 2600 | Radial Dynamic Load Capacity (lb): | 4, 429 |
| Maximum Operating Temperature: | 180 °F | Replaceable Insert: | No |
| Backside Shield/Seal: | Back Seal Installed in Housing | Housing Color: | Black |
| Bearing Insert Coating: | Uncoated | Outer Ring Land Profile: | Standard |
| End Cap: | Yes | Retainer Material: | Steel Riveted |
| Misalignment Type: | Static Only | Radial Static Load Capacity (lb): | 3, 440 |
| UPC: | 787405582736 | Weight: | 1.36 LB |
| Packaged Length: | 6.42 Inches | Packaged Width: | 3.54 Inches |
| Packaged Height: | 2.59 Inches | HTC: | 8483.20.4040 |
| Country of Origin: | Germany |
