- Reinforced white polyamide Nolu-Clean housing with antimicrobial additive.
- 400 series stainless steel setscrew locking bearing insert.
- Includes white Nolu-Clean open end cap with seal and O-ring, and back side housing seal.
UCFH206-20-SS-NC-OEC

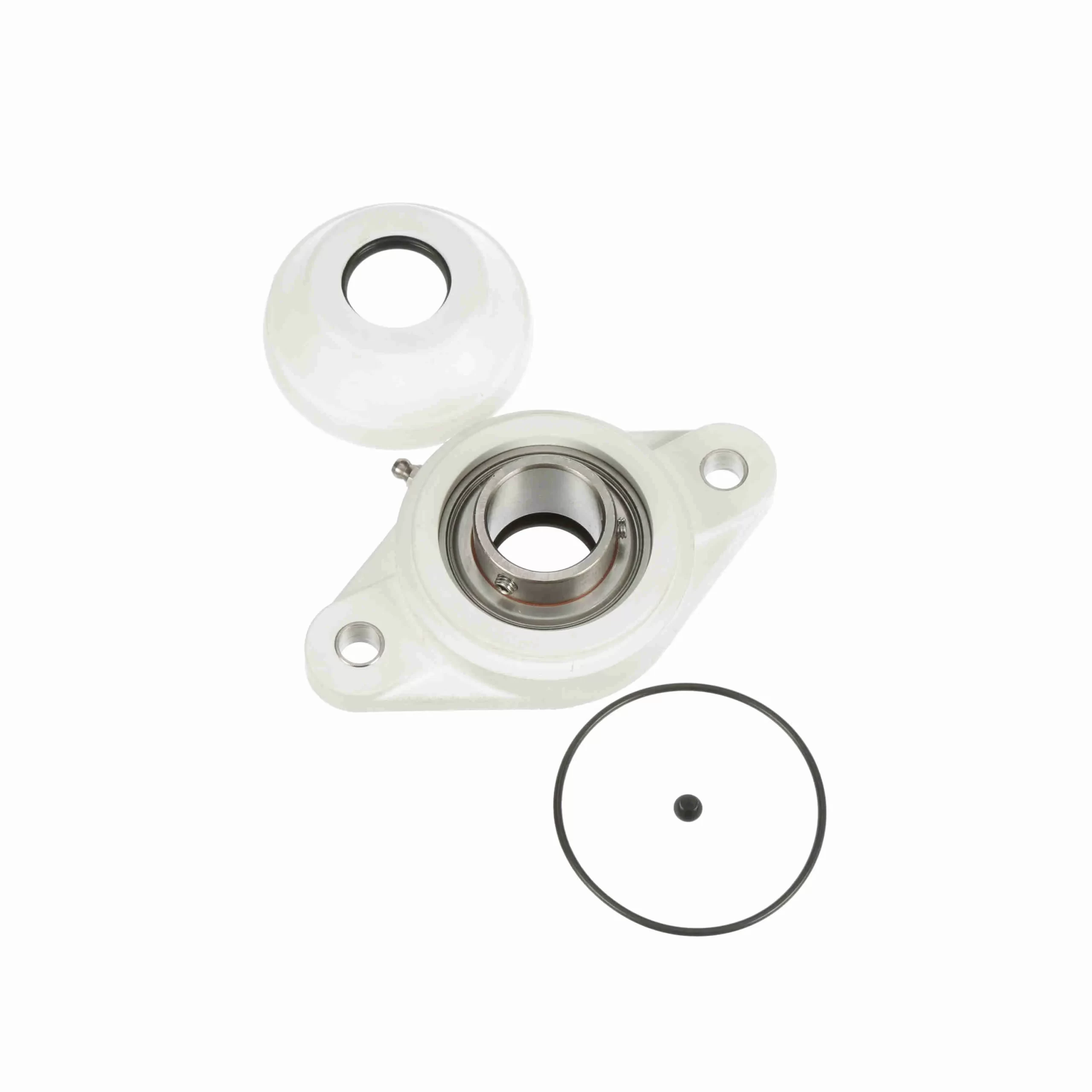

System Plast Mounted Nolu-Clean Two Bolt Flange Ball Bearing – 400 Series Stainless Steel – Setscrew Lock – Open End Cap/Back Seal included – UCFH206-20-SS-NC-OEC
Out of stock
| Expansion: | No | Insert No.: | SS-SB206-20 RG |
|---|---|---|---|
| Housing Base: | Solid | Duty Series: | Standard Duty |
| Measure Units: | Inch | Retainer Type: | Ball Riding Retainer |
| Internal Clearance: | Standard | Housing Material: | Nolu-Clean |
| Rolling Element: | Ball Bearing | Speed (Max): | 2900 |
| Locking Type: | Setscrew | Radial Dynamic Load Capacity (lb): | 2, 529 |
| Housing Construction: | One Piece | Relubricatable: | Yes |
| Bore Shape: | Straight | Insert Material: | 400 Series Stainless Steel |
| Seal Type: | Single Lip Contact Seal | Lubrication: | NSF H1 Food Grade Grease |
| Housing Type: | Flange, Two Bolt | Misalignment: | ±1.0° Misalignment - Static Only |
| Maximum Operating Temperature: | 180 °F | Housing Color: | White |
| Backside Shield/Seal: | Back Seal Installed in Housing | Replaceable Insert: | No |
| Retainer Material: | Stainless Steel Riveted | Bearing Insert Coating: | Uncoated |
| Platform: | System Plast | Outer Ring Land Profile: | Standard |
| Misalignment Type: | Static Only | End Cap: | Yes |
| Radial Static Load Capacity (lb): | 1, 888 | UPC: | 787405287457 |
| Weight: | 1.02 LB | Packaged Length: | 4.8 Inches |
| Packaged Width: | 5.1 Inches | Packaged Height: | 2.9 Inches |
| HTC: | 8483.20.4040 | Country of Origin: | China |
