- Reinforced black polyamide housing.
- 400 series stainless steel setscrew locking bearing insert.
- Includes yellow open end cap with seal and O-ring, and back side housing seal.

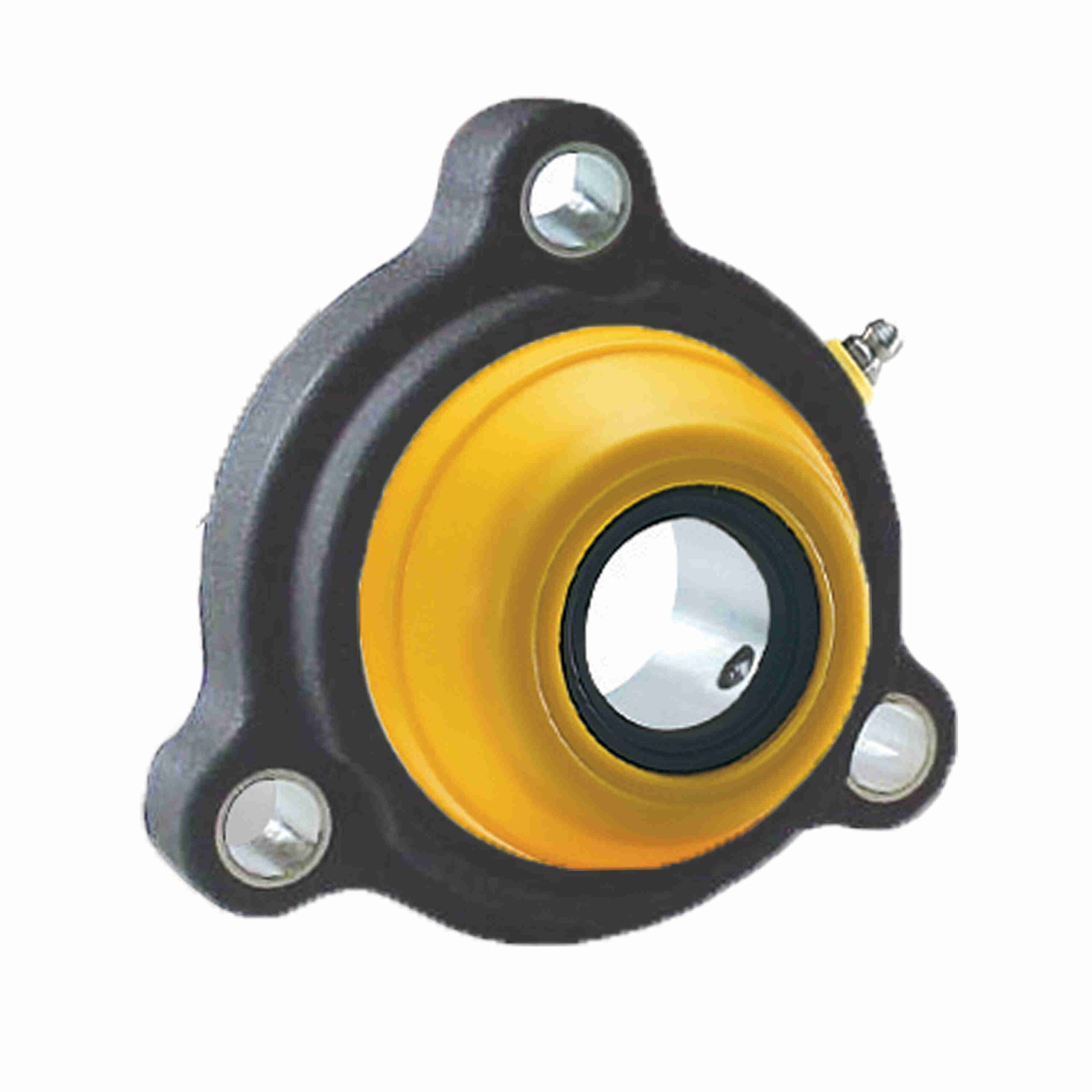

UCFG206-30M-SS-OEC
System Plast Mounted Polyamide Three Bolt Flange Ball Bearing – 400 Series Stainless Steel – Setscrew Lock – Open End Cap/Back Seal included – UCFG206-30M-SS-OEC
Out of stock
| Speed (Max): | 2900 | Internal Clearance: | Standard |
|---|---|---|---|
| Measure Units: | Metric | Housing Base: | Solid |
| Expansion: | No | Retainer Type: | Ball Riding Retainer |
| Housing Material: | Polyamide | Rolling Element: | Ball Bearing |
| Bore Shape: | Straight | Duty Series: | Standard Duty |
| Insert No.: | SS-SB206-30M RG | Insert Material: | 400 Series Stainless Steel |
| Housing Type: | Flange, Three Bolt | Housing Construction: | One Piece |
| Lubrication: | NSF H1 Food Grade Grease | Relubricatable: | Yes |
| Maximum Operating Temperature: | 180 °F | Misalignment: | ±1.0° Misalignment - Static Only |
| Locking Type: | Setscrew | Seal Type: | Single Lip Contact Seal |
| Radial Dynamic Load Capacity (lb): | 2, 529 | Misalignment Type: | Static Only |
| End Cap: | Yes | Retainer Material: | Stainless Steel Riveted |
| Replaceable Insert: | No | Housing Color: | Black |
| Platform: | System Plast | Outer Ring Land Profile: | Standard |
| Bearing Insert Coating: | Uncoated | Bolt Hole Type: | Round Hole |
| Radial Static Load Capacity (lb): | 1, 888 | UPC: | 726166499051 |
| Weight: | 0.88 LB | Packaged Length: | 4.45 Inches |
| Packaged Width: | 4.45 Inches | Packaged Height: | 2.21 Inches |
| HTC: | 8483.20.4040 | Country of Origin: | China |
