- Reinforced black polyamide housing.
- 52100 chrome steel setscrew locking ball bearing insert.
- Includes yellow open end cap with seal and O-ring, and back side housing seal.
UCFBZ204-12-OEC

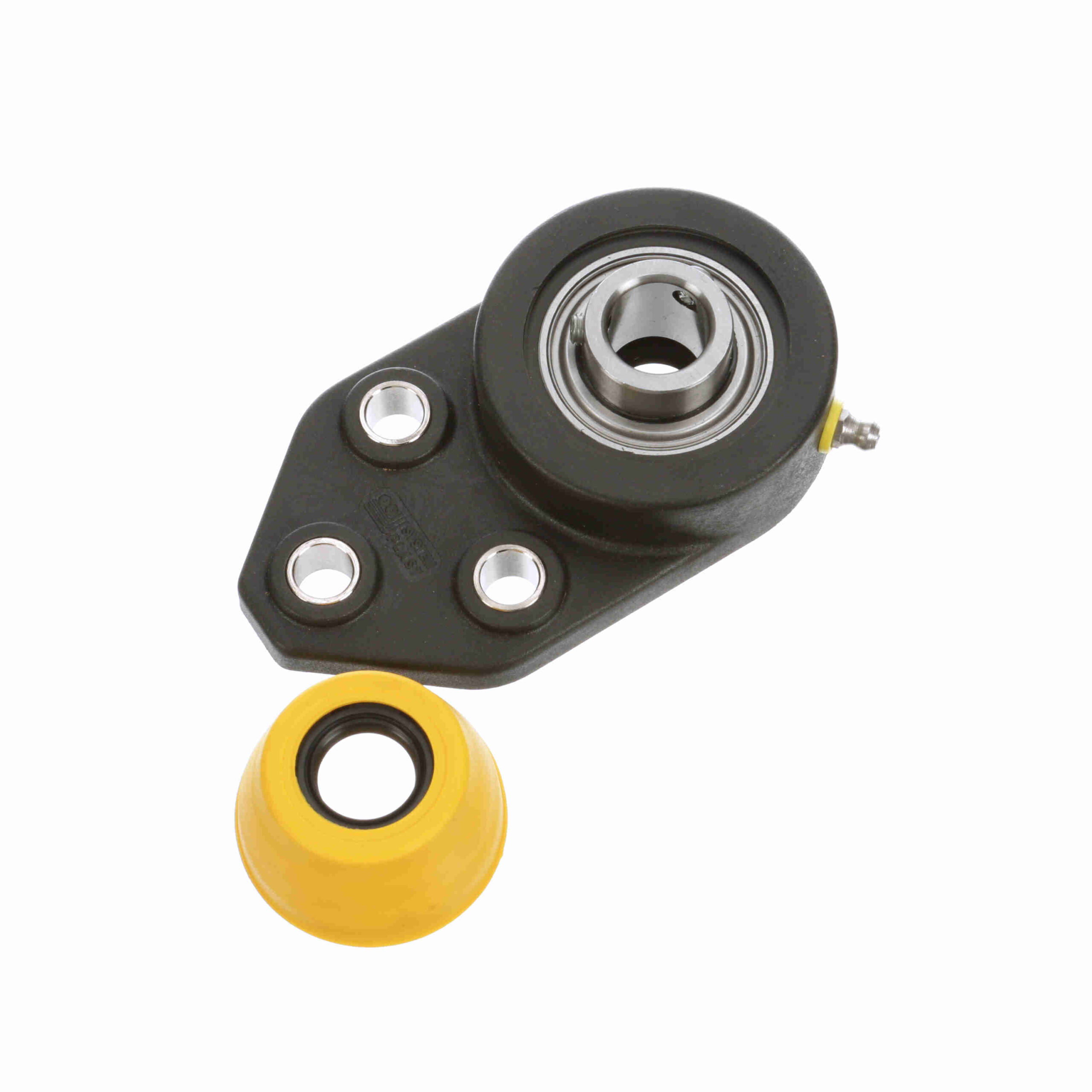

System Plast Mounted Polyamide Three Bolt Flange Bracket Ball Bearing – 52100 Bearing Steel – Setscrew Lock – Open End Cap/Back Seal included – UCFBZ204-12-OEC
Out of stock
| Measure Units: | Inch | Bore Shape: | Straight |
|---|---|---|---|
| Housing Type: | Flange, Bracket, Three Bolt | Housing Material: | Polyamide |
| Insert Material: | 52100 Bearing Steel | Retainer Type: | Ball Riding Retainer |
| Insert No.: | SB204-12 RG | Duty Series: | Standard Duty |
| Speed (Max): | 4200 | Housing Base: | Solid |
| Internal Clearance: | Standard | Rolling Element: | Ball Bearing |
| Housing Construction: | One Piece | Locking Type: | Setscrew |
| Maximum Operating Temperature: | 180 °F | Seal Type: | Single Lip Contact Seal |
| Relubricatable: | Yes | Misalignment: | ±1.0° Misalignment - Static Only |
| Expansion: | No | Radial Dynamic Load Capacity (lb): | 2, 214 |
| Lubrication: | NSF H1 Food Grade Grease | Backside Shield/Seal: | Back Seal Installed in Housing |
| Housing Color: | Black | Outer Ring Land Profile: | Standard |
| Misalignment Type: | Static Only | Replaceable Insert: | No |
| End Cap: | Yes | Bearing Insert Coating: | Uncoated |
| Retainer Material: | Steel Riveted | Radial Static Load Capacity (lb): | 1, 479 |
| UPC: | 787405286405 | Weight: | 1.16 LB |
| Packaged Length: | 5.1 Inches | Packaged Width: | 4.5 Inches |
| Packaged Height: | 1.9 Inches | HTC: | 8483.20.4040 |
| Country of Origin: | China |
