- Reinforced black polyamide housing.
- 400 series stainless steel setscrew locking bearing insert.
- Includes yellow closed end cap with O-ring and back side housing seal.

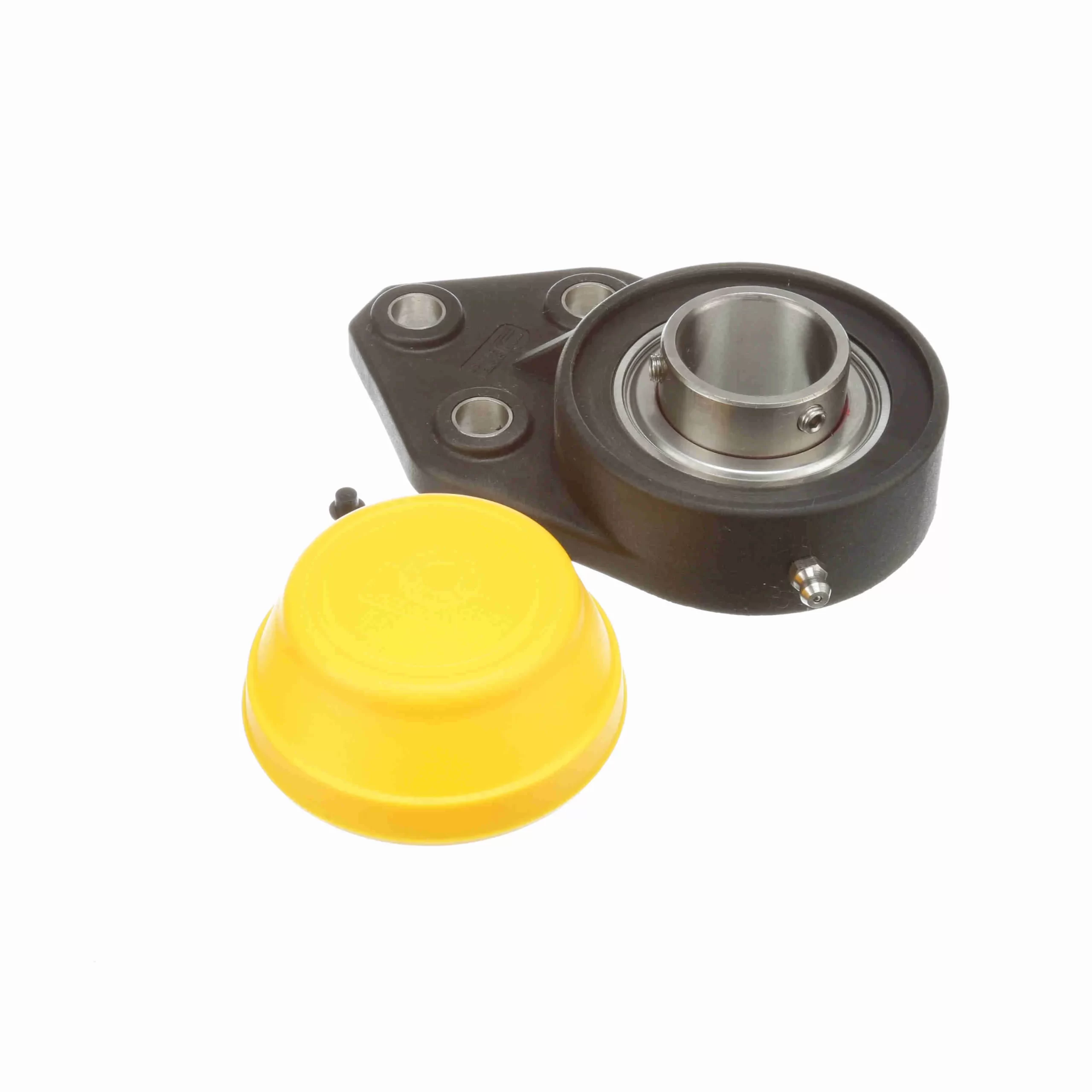

UCFB206-30M-SS-CEC
System Plast Mounted Polyamide Three Bolt Flange Bracket Ball Bearing – 400 Series Stainless Steel – Setscrew Lock – Closed End Cap/Back Seal included – UCFB206-30M-SS-CEC
Out of stock
| Measure Units: | Metric | Housing Type: | Flange, Bracket, Three Bolt |
|---|---|---|---|
| Retainer Type: | Ball Riding Retainer | Bore Shape: | Straight |
| Insert No.: | SS-SB206-30M RG | Speed (Max): | 2900 |
| Internal Clearance: | Standard | Rolling Element: | Ball Bearing |
| Housing Material: | Polyamide | Housing Base: | Solid |
| Duty Series: | Standard Duty | Insert Material: | 400 Series Stainless Steel |
| Lubrication: | NSF H1 Food Grade Grease | Misalignment: | ±1.0° Misalignment - Static Only |
| Relubricatable: | Yes | Radial Dynamic Load Capacity (lb): | 2, 529 |
| Seal Type: | Single Lip Contact Seal | Housing Construction: | One Piece |
| Locking Type: | Setscrew | Maximum Operating Temperature: | 180 °F |
| Expansion: | No | Misalignment Type: | Static Only |
| Retainer Material: | Stainless Steel Riveted | Housing Color: | Black |
| End Cap: | Yes | Platform: | System Plast |
| Replaceable Insert: | No | Outer Ring Land Profile: | Standard |
| Bearing Insert Coating: | Uncoated | Backside Shield/Seal: | Back Seal Installed in Housing |
| Radial Static Load Capacity (lb): | 1, 888 | UPC: | 787405250055 |
| Weight: | 1.10 LB | Packaged Length: | 5.53 Inches |
| Packaged Width: | 3.31 Inches | Packaged Height: | 2.3 Inches |
| HTC: | 8483.20.4040 | Country of Origin: | China |
